EVM User's Guide: DP83TD510E-PODL-EVM
DP83TD510E-PODL-EVM Evaluation Module
Description
The PoDL evaluation module (EVM) shows an
implementation of a single-pair Ethernet (SPE)
communication including power over data lines
(PoDL). The EVM consists of a power sourcing
equipment (PSE) media converter, and a powered
device media converter. This allows simple evaluation
using standard Ethernet networking hardware.
The PoDL EVM supports 10Mbps speed and
implements 10 BASE-T1L according to IEEE802.3cg
including PoDL with SCCP. The EVM implements
a media converter from 10 BASE-TX to 10BASE-
T1L to allow bit-error rate testing, interoperability
and compliance testing. The EVM also includes a
USB2MDIO interface to allow register access of the
PHYs for configuration.
SNLU343 – JUNE 2024
Submit Document Feedback
Features
• 10BASE-T1L single-pair Ethernet
• PoDL power sourcing equipment (PSE), Type E,
Class 12, compliant to IEEE802.3cg including
serial communication classification protocol
(SCCP)
• PoDL power delivery (PD), Type E, Class
12, compliant to IEEE802.3cg including serial
communication classification protocol (SCCP)
• On-board USB 2 MDIO interface for PHY register
access
Applications
• Factory automation and control
• Communication module
• Communication switch
• Communication module
• Single board computer

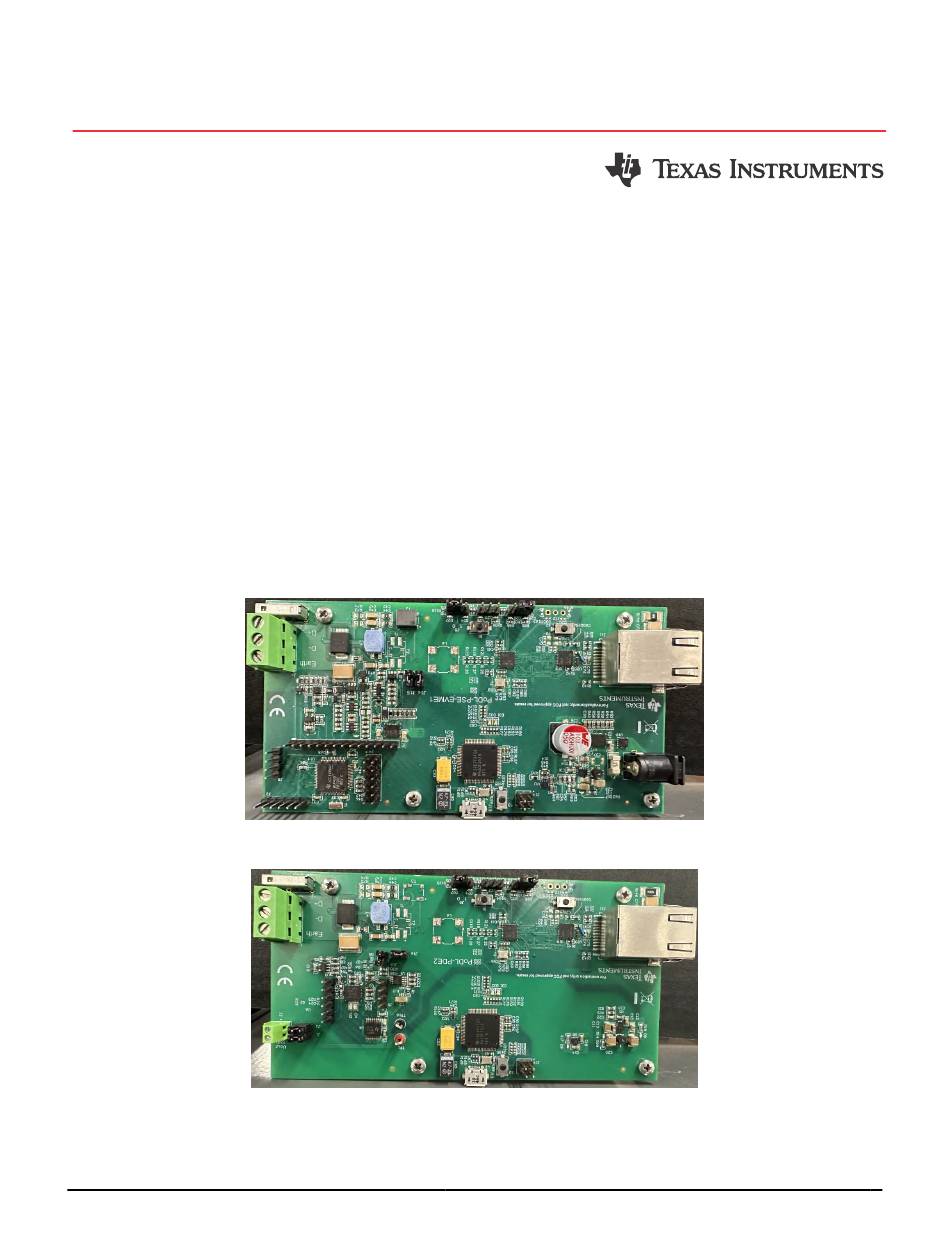

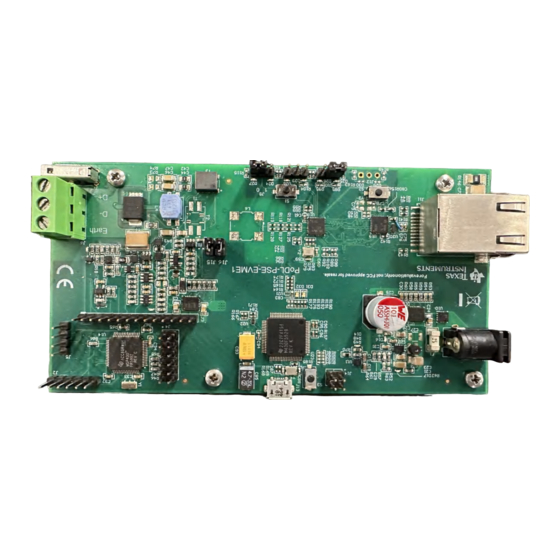

DP83TD510E_PODL_PSE Board
DP83TD510E_PODL_PD Board
