This document is a getting started reference guide for the DP83867 RGMII EVM. This will help the user to
get familiar with the EVM and quickly get it in the desired mode of operation.
1
Introduction
The DP83867ERGZ RGMII EVM (DP83867ERGZ-R-EVM) supports 1000/100/10 Mb/s and is compliant
with the IEEE 802.3 standard. This reference design supports RGMII interfaces.
The DP83867 EVM includes three onboard status LEDs, 5-V connectors with onboard LDO, and is JTAG
accessible. The DP83867 EVM is capable of providing a 125-MHz reference clock from an onboard 25-
MHz crystal. Serial management interface, MDIO/MDC, is supported and can be used to access PHY
registers for additional features. There are 4-level straps, which allow for system configurations without the
need to directly access PHY registers. External power supplies can be connected to each specified
voltage rail for additional system evaluation. The DP83867 EVM supports Wake-on-LAN, Start-of-Frame
Detect IEEE 1588 Time Stamp, and configurable I/O voltages.

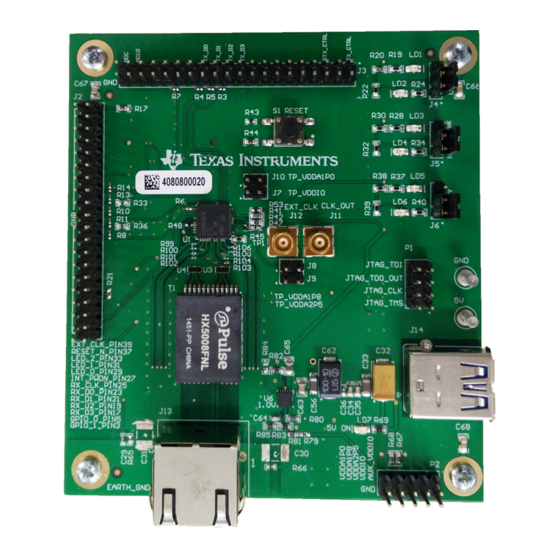

Figure 1
illustrates the EVM components.
SNLU189 – October 2015
Submit Documentation Feedback
ABSTRACT
Copyright © 2015, Texas Instruments Incorporated
Getting Started Guide
SNLU189 – October 2015
DP838367 RGMII EVM
DP838367 RGMII EVM
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DP838367 RGMII EVM
Summary of Contents for Texas Instruments DP838367 RGMII EVM
- Page 1 The DP83867 EVM supports Wake-on-LAN, Start-of-Frame Detect IEEE 1588 Time Stamp, and configurable I/O voltages. Figure 1 illustrates the EVM components. SNLU189 – October 2015 DP838367 RGMII EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 2 LINK: Turns ON if the PHY successfully links with a Link partner for 10M, 100M, or 1000M speeds. 1000M LINK: Turns ON only if 1000M link is establish. ACTIVITY: Turns ON if there is activity on Media Dependent Interface. DP838367 RGMII EVM SNLU189 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 3 If the Link Partner had the ability to send packet traffic to DP83867EVM, then start packet transmission. At this point the ACTIVITY LED should turn ON. • Disconnecting the Cat5e cable should turn off all Status LEDs. SNLU189 – October 2015 DP838367 RGMII EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 4 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
- Page 5 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
- Page 7 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2015, Texas Instruments Incorporated...
-
