DP83TC812EVM-MC User's Guide
This User's Guide discusses how to properly operate and configure the DP83TC812 Media Converter EVM. For
best layout practices, schematic files, and Bill of Materials, see the associated support documents.
History......................................................................................................................................................................2
2
Introduction.............................................................................................................................................................................3
Features......................................................................................................................................................................3
Setup....................................................................................................................................................4
Details................................................................................................................................................................7
Diagram....................................................................................................................................................................7
3.2 Configuration Options........................................................................................................................................................
4 Definitions...............................................................................................................................................................................
5
Schematics..............................................................................................................................................................................9
Schematic........................................................................................................................................................9
5.2 DP83867 Schematic........................................................................................................................................................
Schematic..............................................................................................................................................................11
5.4 AFE Schematic................................................................................................................................................................
5.5 Comms Schematic...........................................................................................................................................................
Schematic........................................................................................................................................................14
6 Layout....................................................................................................................................................................................
SNLU292A - NOVEMBER 2020 - REVISED MARCH 2022
Submit Document Feedback
ABSTRACT

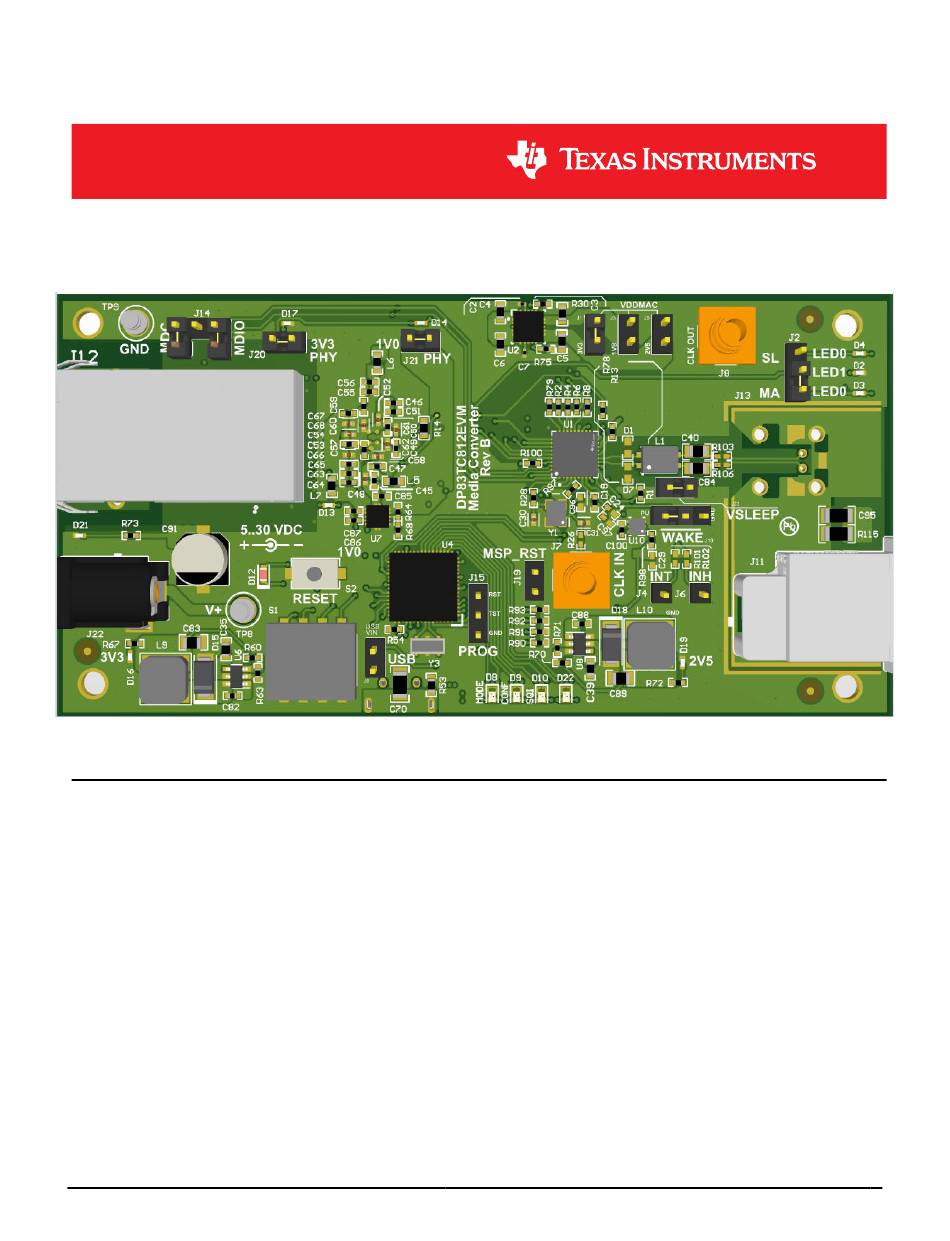

Figure 1-1. DP83TC812EVM-MC

Table of Contents

Copyright © 2022 Texas Instruments Incorporated
Table of Contents
DP83TC812EVM-MC User's Guide
7
8
10
12
13
15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP83TC812EVM-MC and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DP83TC812EVM-MC

  • Page 1: Table Of Contents

    5.1 Main Block Schematic................................9 5.2 DP83867 Schematic................................ 5.3 Power Schematic................................11 5.4 AFE Schematic................................5.5 Comms Schematic................................5.6 Hardware Schematic................................14 6 Layout....................................SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 2: Revision History

    Revision History www.ti.com List of Figures Figure 1-1. DP83TC812EVM-MC..............................Figure 2-1. DP83TC812EVM-MC – Top Side..........................Figure 2-2. DP83TC812EVM-MC – Bottom Side........................Figure 2-3. Onboard Supply Connection and Jumpers....................... Figure 2-4. VSLEEP and WAKE Jumpers........................... Figure 2-5. On-board MSP connections for MDIO and MDC......................
  • Page 3: Introduction

    Introduction 2 Introduction The DP83TC812EVM-MC supports 100-Mbps speed and is IEEE 802.3bw compliant. There is an on-board MSP430F5528 for use with the USB2MDIO graphical user interface tool. DP83867 is provided for copper (100BASE-TX) support using RGMII MAC Interface. 2.1 Key Features •...
  • Page 4: Operation - Quick Setup

    Introduction www.ti.com Figure 2-2. DP83TC812EVM-MC – Bottom Side 2.2 Operation – Quick Setup 2.2.1 Onboard Power Supply Operation • EVM can operate from a single supply connected to the turret or barrel jack connector through TP8 (TP9 is GND) – Wide Vin: 5 V to 30 V •...
  • Page 5: Figure 2-4. Vsleep And Wake Jumpers

    PHY's registers. The software is available to download along with its user's guide in the link. USB2MDIO SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 6: Figure 2-6. Dp83Tc812 Configured As Master

    Look for LED to illuminate on the RJ45 when a link is successfully established on the DP83867 • LED_1 (D2) will blink for TX/RX activity DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 7: Board Setup Details

    USB2MDIO Source or SMA PHY ID + RGMII PHY ID + RGMII Straps CLKOUT Straps Figure 3-1. DP83TC812EVM-MC Block Diagram 3.2 Configuration Options 3.2.1 Clock Configuration • Onboard Clock – The onboard crystal is enabled by default • External Clock –...
  • Page 8: Definitions

    RGMII Reduced Gigabyte Media Independent Interface Start-of-Frame Detection VDDA Analog Core Supply Rail VDDIO Digital Supply Rail Pull-down Pullup Micro-controller DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 9: Schematics

    VDD1P0_1 2.2k 2.2k 10.0k GND_ESC GND_ESC TPS7B8133QDRVRQ1 VDD1P0_2 TSW-101-07-G-S DP83TC812R-Q1 Sleep Supply TSW-101-07-G-S 10.0k VDDMAC CLKOUT Figure 5-1. Main Schematic SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 10: Dp83867 Schematic

    0.1uF 0.1uF 10nF 10nF 10nF 10nF 10nF 10nF 10uF 0.1uF 0.1uF 10uF 0.1uF 0.1uF 0.1uF 0.1uF Figure 5-2. DP83867 Schematic DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 11: Power Schematic

    10uF 15uH SHDN NR/SS2 0.1uF 0.01 µF LM2842YQMK/NOPB 47uF 2.26k 10.7k 2.2uF TPS7A8701RTJR B160-13-F 1.02k 150040GS73240 Figure 5-3. Power Schematic SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 12: Afe Schematic

    GND812 1.00k 1.00k GND812 EZAEG3W11AV R113 R114 100k 100k 4700pF 4700pF 0.01 µF R115 1.0M GND812 Figure 5-4. AFE Schematic DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 13: Comms Schematic

    Rev. sel. 1 USB1_D_P 1.40k Rev. sel. 2 USB_D_P Rev. sel. 3 10pF 10pF 1.00M USBGND Figure 5-5. Comms Schematic SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 14: Hardware Schematic

    Change MCU wiring Pin 11, 18 , 50 M7582-05 M7582-05 M7582-05 M7582-05 Change MCU, MDIO wiring Figure 5-6. Hardware Schematic DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 15: Layout

    Schematics 6 Layout Figure 6-1. Top Overlay SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 DP83TC812EVM-MC User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
  • Page 16: Figure 6-2. Bottom Overlay

    Schematics www.ti.com Figure 6-2. Bottom Overlay DP83TC812EVM-MC User's Guide SNLU292A – NOVEMBER 2020 – REVISED MARCH 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
