USER MANUAL

Table of Contents

2
2
3
4
4
5
8
12
13
13
14
15

Advertisement

Table of Contents
loading
Need help?

Need help?

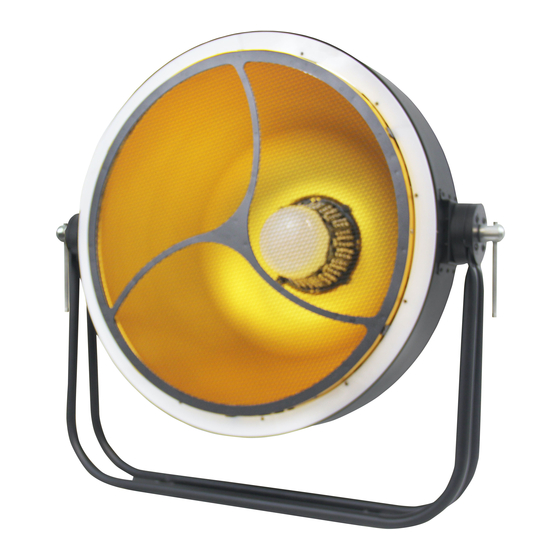

Do you have a question about the CIRCA GIANT SCOOP LED and is the answer not in the manual?

Questions and answers

Related Manuals for Mega Lite CIRCA GIANT SCOOP LED

Summary of Contents for Mega Lite CIRCA GIANT SCOOP LED

  • Page 1: Table Of Contents

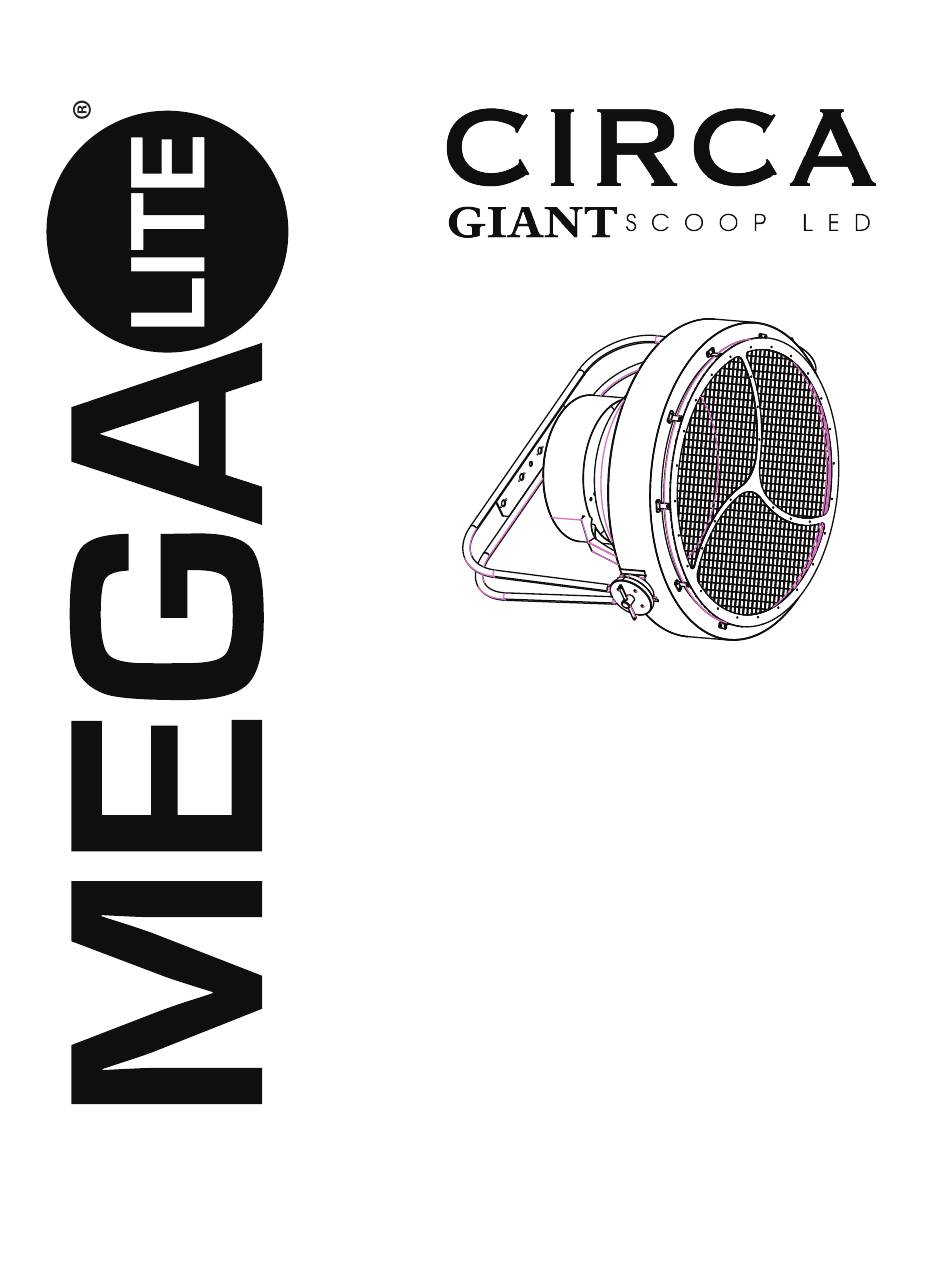

    USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Display Settings DMX Profile Size And Weight Segment Installation Warranty Customer Service...

  • Page 2: Safety Information

    Check that the unit has not been damaged during transport. Protection Against Fire Maintain a minimum of 1 foot distance from any type of flame. Fixture is NOT designed outdoor use. Do not install the unit too close to a heat source. Make sure cables are properly secured.

  • Page 3: Specifications

    Specifications Part Numbers Fixture ID 5202=Circa Giant Mechanical Specifications Housing: Sheet Metal Mounting System: 2 Quick Release Clamp Mounts, Hanging Yoke Power Connection: Input: Seetronics SAC3MPX Output: Seetronics SAC3FX Cable: Seetronics SAC3FX to Nema 5/15 LED Angle: 140° (outer ring) Signal Connection: 5 Pin XLR In and Out Thermal:...

  • Page 4: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. (F10AL250V) This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz This device can power link 2 units on 110V power.

  • Page 5: Display Settings

    Display Control Mega Lite The control board on the rear of the fixture is your interface Circa Giant Scoop to access and control all the functions on the unit. It’s LCD display gives you a code view of the options V1.7...
  • Page 6 Fan Test: Press Up or Down to select from Center Fan or Ring Fan Main Menu Test for function. >Fan Test Auto Mode Auto Speed Auto Mode: Press Enter use the Up/Down buttons to select from 6 Main Menu different preset programs. Fan Test >Auto Mode Auto Speed...
  • Page 7 Settings: Preferred user setting options Main Menu Auto Speed Temperature >Setting OLED Back Light: To turn off display screen after 2 minutes Setting of no use select Disable. To enable the screen to remain on >OLED Back Light when is use select Enable. DMX Fail Dimmer Settings DMX Fail: If DMX Signal is lost select Enable to have...

  • Page 8: Dmx Profile

    DMX Profile Circa Giant Scoop LED 2 Ch Mode DMX Channel Function Description Value Init Dimmer Dimmer Off to Full 0-255 No Function 0-41 Macro 1 (slow to fast) 42-83 Macro Macro 2 (slow to fast) 84-125 Macro 3 (slow to fast)
  • Page 9 DMX Profile Circa Giant Scoop LED 17 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outer Red LED intensity 0-255 LED Color Outer Green LED Intensity 0-255 LED Color Outer Blue LED Intensity...
  • Page 10 DMX Profile Circa Giant Scoop LED 52 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outter 1 Red LED intensity 0-255 LED Color Outter 1 Green LED intensity 0-255 LED Color...
  • Page 11 DMX Profile Circa Giant Scoop LED 55 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outer 1 Red LED intensity 0-255 LED Color Outer 1 Green LED intensity 0-255 LED Color...

  • Page 12: Size And Weight

    Size and Weight 39.37” 34” 30.92” 27.92” 23.5” 11.75” 3.75” 39.37” X 27.92” X 34” Fixture Size: Fixture Weight: 51lb Road Case Size: 45” X 22.55” X 31.5” 151lb Inside Road Case Weight:...

  • Page 13: Segment

    Segment Inner Circle Outer Circle Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3. Unit is to be 24 inches away from flammable materials. 4.

  • Page 14: Warranty

    General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2.

  • Page 15: Customer Service

    Customer Support Mega Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept.
