Lockly VISION ELITE Installation Manual page 12

Step 3
continued

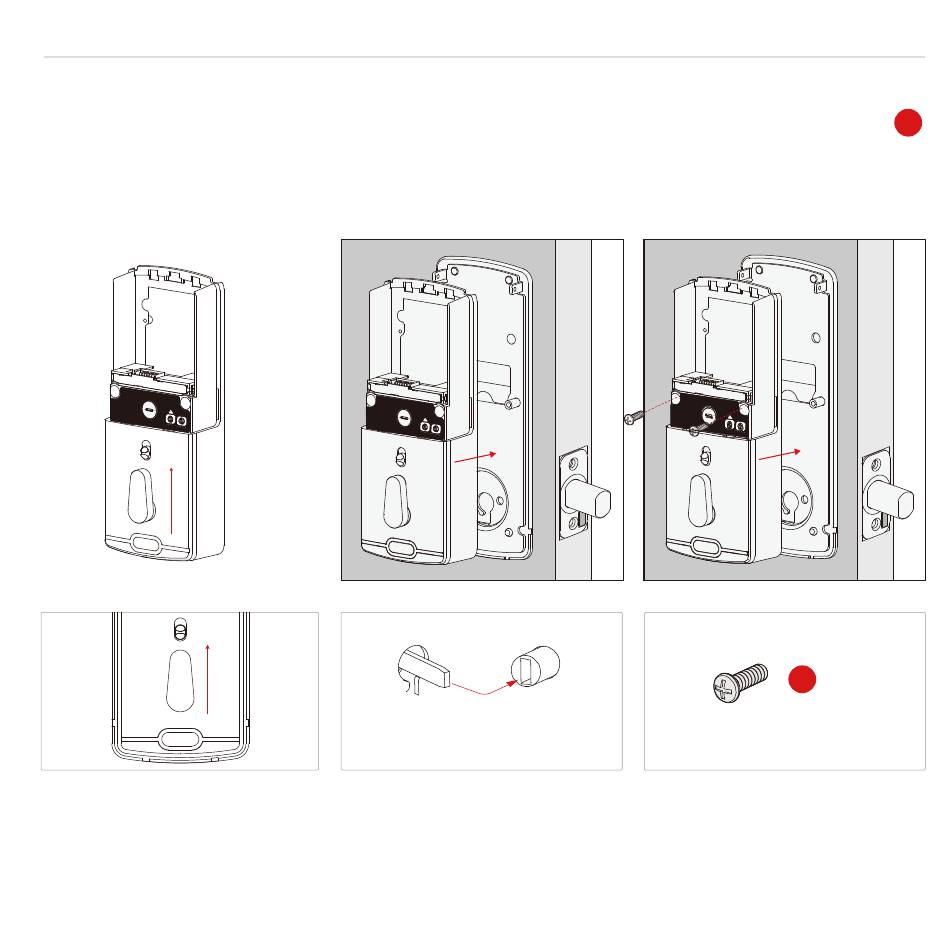

6. Before placing the interior
assembly onto the mounting
plate, ensure the thumb turn
is vertical.
INSTALLING THE INTERIOR ASSEMBLY (G)
7. Place the interior assembly
against the mounting plate
and make sure the torque
blade is inserted to the thumb
turn shaft.
Torque Blade Thumb turn shaft
Align torque blade with thumb
turn shaft, make sure both are in
the vertical position.
10
8. Secure the interior assembly
to mounting plate with 2
screws.
H
H
2X
