  • Page 1 Pyro H Quick Guide V1.0.0...
  • Page 2 Foreword Pyro H Thank you for choosing the wireless high-definition video transmission system. The product adopts the latest codec technology, as well as 2.4 GHz and 5 GHz wireless transmission technology, achieving a super-low latency video transmission. Please read this Quick Guide carefully. We wish you a pleasant experience. To obtain Quick Guide informa- tion in other languages, please scan the QR code below.
  • Page 3 Foreword 請仔細閱讀本快速指南。我們祝您體驗愉快。若要取得其他語言的快速指南資訊，請掃描下面的 QR 碼。 이 빠른 가이드를 주의 깊게 읽으십시오. 즐거운 경험 되시길 바랍니다. 빠른 가이드 정보를 다른 언어로 알아보려면 아래 QR 코드를 스캔하십시오. クイックガイドを熟読して ください。 ご体験をお楽しみください。 他の言語でクイックガイド情報を取得するには、 以下のQRコードをスキャンして ください。...

  • Page 4: Key Features

    (When in Broadcast mode, the frequency scan function can only detect interference caused by equipment not in Broadcast mode. Equipment in Broadcast mode need to choose different frequency channels to avoid inteference. ) * The related data is based on Hollyland laboratory test results.
  • Page 5 Configuration...
  • Page 6 1. The quantity of the items depends on the product configuration detailed on the packing list card. 2. You can buy a transmitter, receiver, cylindrical antenna, rotatable cold shoe mount, DC power adapter, and screw fitting for stabilizer from Hollyland's official website based on your needs.
  • Page 7 Connection One transmitter can connect to two receivers and two mobile devices...
  • Page 8 Connection Broadcast mode enabled (one transmitter can connect up to four receivers)

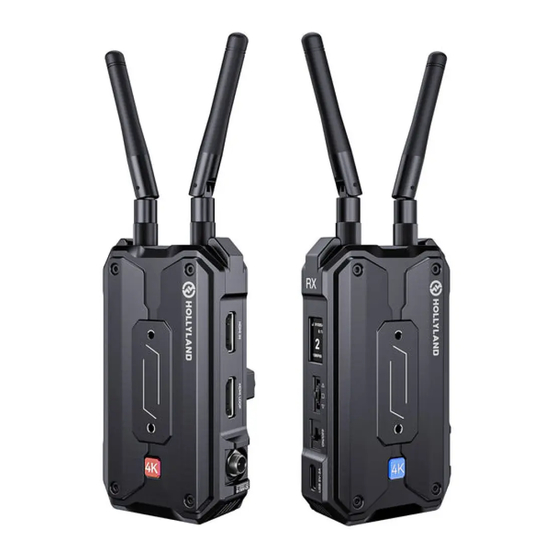

  • Page 9 Overview Transmitter...
  • Page 10 Overview Receiver...

  • Page 11: Installation

    Installation Transmitter 1. Install the antennas as shown in the diagram. 2. Mount the transmitter to the camera using the rotatable cold shoe mount. 3. Connect the transmitter to the camera using the HDMI cable. 4. Install the battery (NP-F batteries). 5.
  • Page 12 Installation Receiver 1. Install the antennas as shown in the diagram. 2. Mount the receiver on the tripod using the 1/4 screw hole at the bottom. 3. Install the battery (NP-F batteries). 4. Toggle the power switch downward to turn on the receiver.

  • Page 13: Interface Introduction

    Interface Introduction Home Screen Introduction Transmitter Receiver ① Transmitter: number of the connected receivers ⑥ USB-C Port Status Receiver: signal strength ② Current Group ⑦ Battery Level ③ Video Resolution & Frame Rate ⑧ Wi-Fi Account ④ Frequency Channel (scroll the thumbwheel switch up and ⑨...
  • Page 14 Funtions Introduction Entering the Menu Press and hold the thumbwheel switch for 3 seconds to enter the menu. Scroll the switch up and down to select the function and press the switch to confirm. Transmitter functions description Scene Mode Group Pairing System Settings Provides multiple scene Transmitter and receiver...
  • Page 15 Funtions Introduction Receiver functions description Frequency Scan For viewing the current interference status. Press the thumbwheel switch to choose the desired channel. Group Pairing Transmitter and receiver in the same group automatically pair. System Settings Net Information For viewing Wi-Fi account and password. Reset For resetting to the default settings.
  • Page 16 App Download and Connection 1. Hollyview download The app HollyView is available for download on Hollyland's official website. Android users also can download the app from the Google Play Store and other App Stores, while iOS users can download from the App Store.

  • Page 17: Specifications

    Specifications Transmitter Receiver • DC Input: 2.0mm Core Socket • DC Input: 2.0mm Core Socket • HDMI Input: HDMI 1.4b • HDMI Output: HDMI 1.4b Port • HDMI Loopout: HDMI 1.4b • USB-C: USB 2.0 OTG • USB-C: USB 2.0 OTG •...
  • Page 18 Specifications • 5 GHz Frequency Band 5.150 - 5.250 GHz 5.250 - 5.350 GHz Operating Frequency 5.470 - 5.725 GHz 5.725 - 5.850 GHz • 2.4 GHz Frequency Band 2.412 - 2.484 GHz Transmit Power ＜ 23 dBm -85 dBm Receiver Sensitivity (Broadcast: -80 dBm) Latency...
  • Page 19 All copyrights belong to Shenzhen Hollyland Technology Co., Ltd. Without the written approval of Shenzhen Hollyland Technology Co., Ltd., no organization or individual may copy or reproduce part or all of any written or illustrative content and disseminate it in any form.
  • Page 20 Manufacturer: Shenzhen Hollyland Technology Co., Ltd. Address: 8F, 5D Building, Skyworth Innovation Valley, Tangtou Road, Shiyan Street, Baoan District, Shenzhen, 518108, China MADE IN CHINA...
