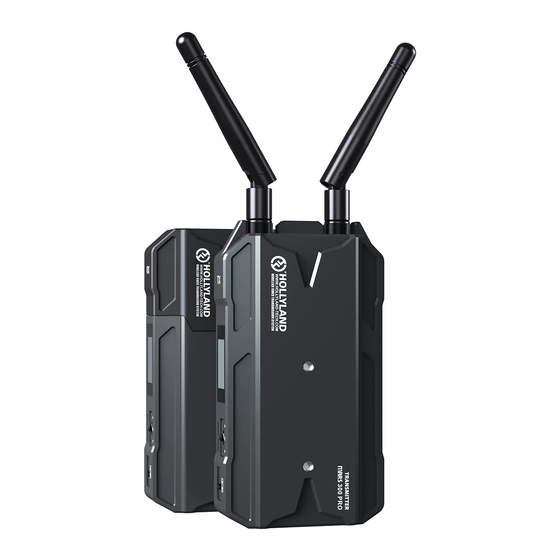

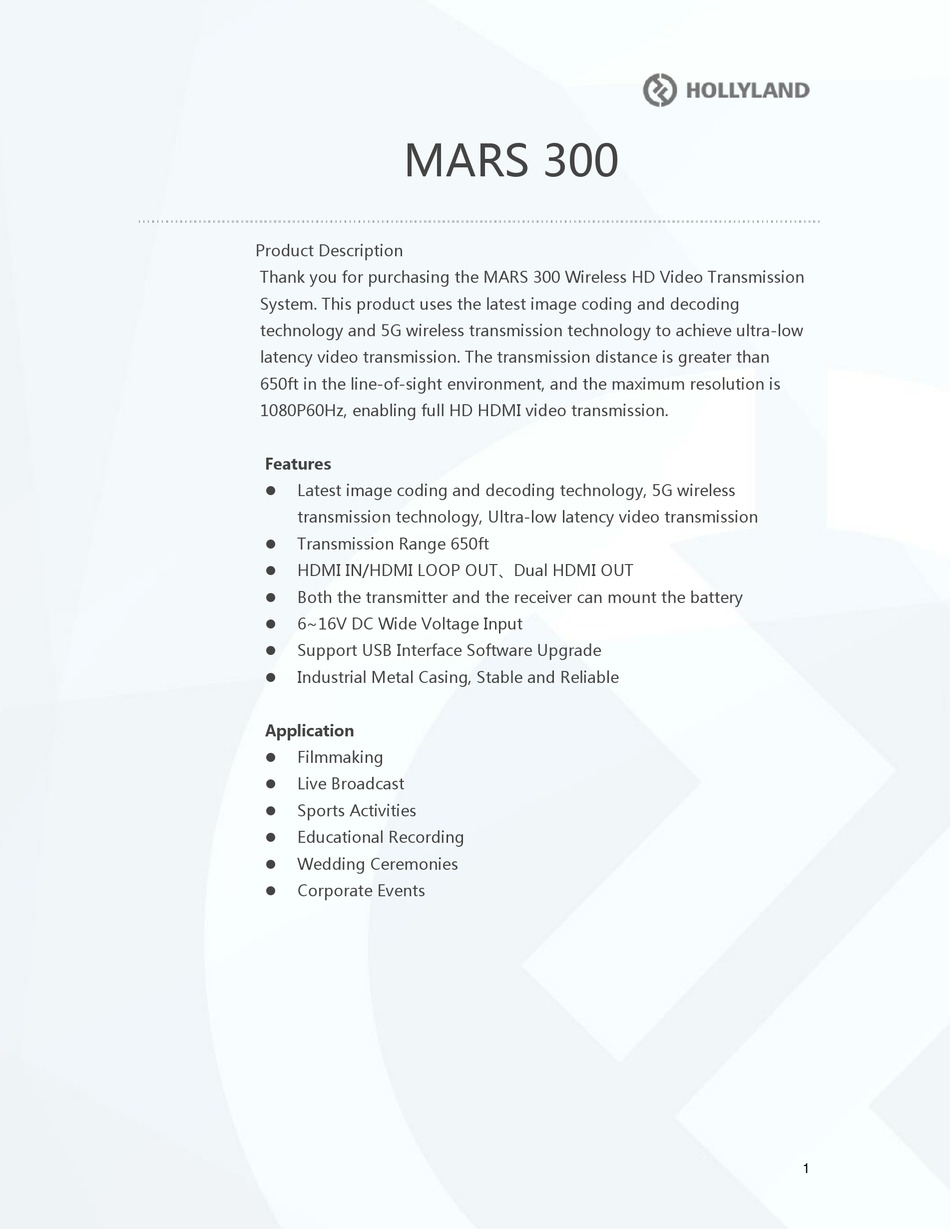

MARS 300
Product Description
Thank you for purchasing the MARS 300 Wireless HD Video Transmission
System. This product uses the latest image coding and decoding
technology and 5G wireless transmission technology to achieve ultra-low
latency video transmission. The transmission distance is greater than
650ft in the line-of-sight environment, and the maximum resolution is
1080P60Hz, enabling full HD HDMI video transmission.
Features
Latest image coding and decoding technology, 5G wireless
⚫
transmission technology, Ultra-low latency video transmission
Transmission Range 650ft
⚫
HDMI IN/HDMI LOOP OUT、Dual HDMI OUT
⚫
Both the transmitter and the receiver can mount the battery
⚫
6~16V DC Wide Voltage Input
⚫
Support USB Interface Software Upgrade
⚫
Industrial Metal Casing, Stable and Reliable
⚫
Application
Filmmaking
⚫
Live Broadcast
⚫
Sports Activities
⚫
Educational Recording
⚫
Wedding Ceremonies
⚫
Corporate Events
⚫
1
Advertisement
Table of Contents
Related Manuals for Hollyland MARS 300
Summary of Contents for Hollyland MARS 300
- Page 1 MARS 300 Product Description Thank you for purchasing the MARS 300 Wireless HD Video Transmission System. This product uses the latest image coding and decoding technology and 5G wireless transmission technology to achieve ultra-low latency video transmission. The transmission distance is greater than 650ft in the line-of-sight environment, and the maximum resolution is 1080P60Hz, enabling full HD HDMI video transmission.
- Page 2 Packing List Receiver Transmitter 5GHz Antenna User Manual Cold Shoe Expansion Accessory x1 DC Adapter OTG converter Typical Connection Diagram...
- Page 3 The wireless HD video transmission system adopts the latest wireless communication technology and ultra-low-latency high-definition video transmission. The transmitter supports HDMI input and HDMI loop out, and the receiver supports dual HDMI output...
- Page 4 Product Interface Definition ⑴Transmitter RP-SMA Antenna Male Interface Expansion Accessory Mounting Hole HDMI Loop Out Interface HDMI Input Interface DC Power Input Interface Video Indicator Link Indicator Channel Button Micro USB Interface Pairing Button Power Switch 1/4-20 Threaded Hole ⑵Receiver RP-SMA Antenna Male Interface...
- Page 5 Expansion Accessory Mounting Hole HDMI Output1 Interface HDMI Output2 Interface DC Power Input Interface Video Indicator Link Indicator Channel Button Micro USB Interface Pairing Button Power Switch 1/4-20 Threaded Hole Product Installation Install the antenna as shown Fixed transmitter, receiver Install battery Power on, open to "ON"...
- Page 6 Use Function Introduction Pairing Function Press and hold the pairing button between the transmitter and the receiver at the same time. The Link light flashes red rapidly, and the transmitter and receiver enter the pairing mode. After the pairing is successful, the Link light is steady green, as shown in Figure 5.
- Page 7 Status Light and Display Instructions Link Indicator Connection Disconnect Pairing Connected Connected Status Strong Signal Weak Signal Display Light Red Light Red Light Green Light Yellow Light Status Slow Flash Quick Flash Stays On Slow Flash Video Indicator Whether there is a video Have source Display Light...
- Page 8 Power Supply 6~16V DC 6~16V DC Voltage Range Power <6W <5W Consumption Weight 145g 145g Size （LxWxH）:105x62x22mm （LxWxH）:105x62x22mm include antennas not include antennas and battery battery plate plate Input Video HDMI: Format 480P60,576P50,720P50/60, 1080i50/60,1080P30/50/60 Output Video HDMI: Format 480P60,576P50,720P50/60, 1080i50/60,1080P30/50/60 Frequency Band 5GHz 5GHz...
- Page 9 3. Please check if the transmitter's Video light is on; if not, please check if the HDMI cable connected to the transmitter is reliably connected to the camera and whether the camera has video outputs 4. Please check if the video output format of the camera is compatible with this product. 5.
