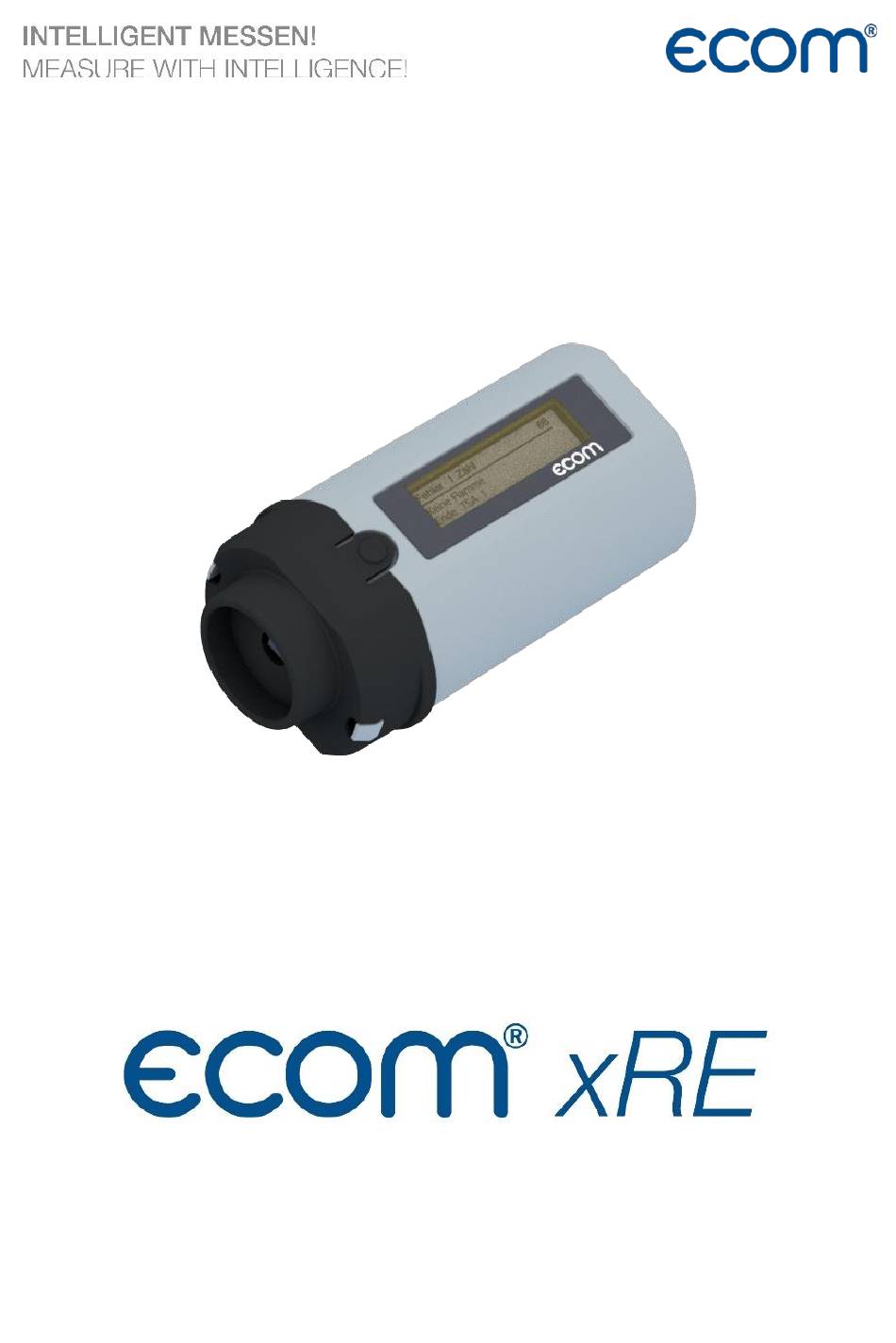

- Page 1 English OPERATION MANUAL Version ecom xRE Status April 2024...
-
Page 2: Intended Use

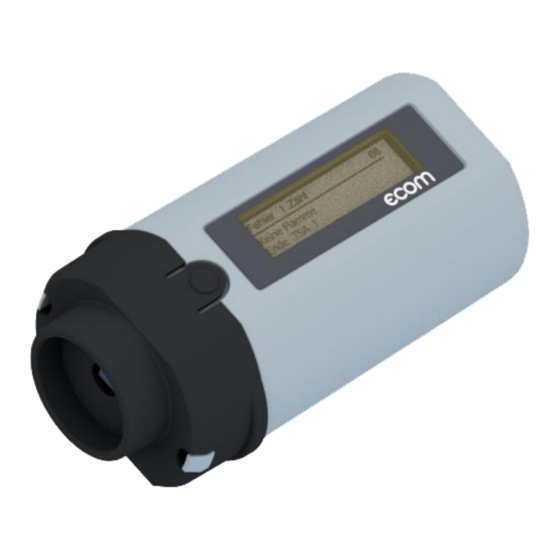

The ecom xRE is able to identify the make and the model of the following firing automats: Siemens-Landis &... -
Page 3: General Safety Instructions
Hazard of Injury Improper work on incinerators can cause injuries. Work on incinerators may only be done by qualified specialists. CAUTION Malfunction of the Readout Process Exposure to strong light can disturb the readout process. Protect ecom xRE from strong light. -
Page 4: Device Description
Housing Head Display Set Language 1. Hold down the setting key until Language: English on the display ap- pears. 2. Use the setting key to select the required language. NOTICE ecom xRE starts after about 5 s in the selected language. - Page 5 PC mode appears on the display. When using the AK PC software, the ecom xRE must not be started in PC mode. 3. ecom xRE searches for automat information. NOTICE ecom xRE switches off after 2 minutes if it does not detect any signal.
- Page 6 Display Use the setting key to recall the data step by step: 1. Operating Status of the Burner 2.3µA 231V Error Valve 1 Engine Flame identified Ignition Operating Voltage Valve 2 Oil Preheater Flame Signal 2. Flame Signal current flame signal - minimum signal 3.
-
Page 7: Change Batteries
The two 1.5 V AA batteries must be replaced when the battery ca- pacity indicator flashes. 1. Press locking latches on the housing head inwards. 2. Pull off housing head to the front. 3. Remove circuit board. 4. Change batteries. 5. Reassemble ecom xRE in reverse order. -
Page 8: Technical Data
Connection to Connection to the devices: ecom-devices ecom-D ecom-EN3 ecom-J2KNpro is possible with included connection cable Data reading does 1. Burner control cannot be read out (see list) not work 2. Burner control is not set to diagnostic mode (only Siemens burner controls) -
Page 9: Maintenance
Maintenance To ensure the accuracy of your measuring device, we recommend an annual inspection by an authorised ecom partner. In case of heavy use, shorter in- spection intervals should be chosen – please contact your ecom partner. Disposal Dispose of used batteries at the designated collection points. - Page 12 GmbH Am Großen Teich 2 D-58640 Iserlohn Info@ecom.de www.ecom.de Phone: +49 2371 945-5 Fax: +49 2371 40305 UK importer: DRM Technic Ltd. Unit 25 Raleigh Hall Industrial Estate, Stafford, Staffordshire, ST21 6JL, UK sales@drmtechnic.com www.drmtechnic.com Phone: +44 (0) 1785 556 593...
