Ecom xRE Operation Manual page 6

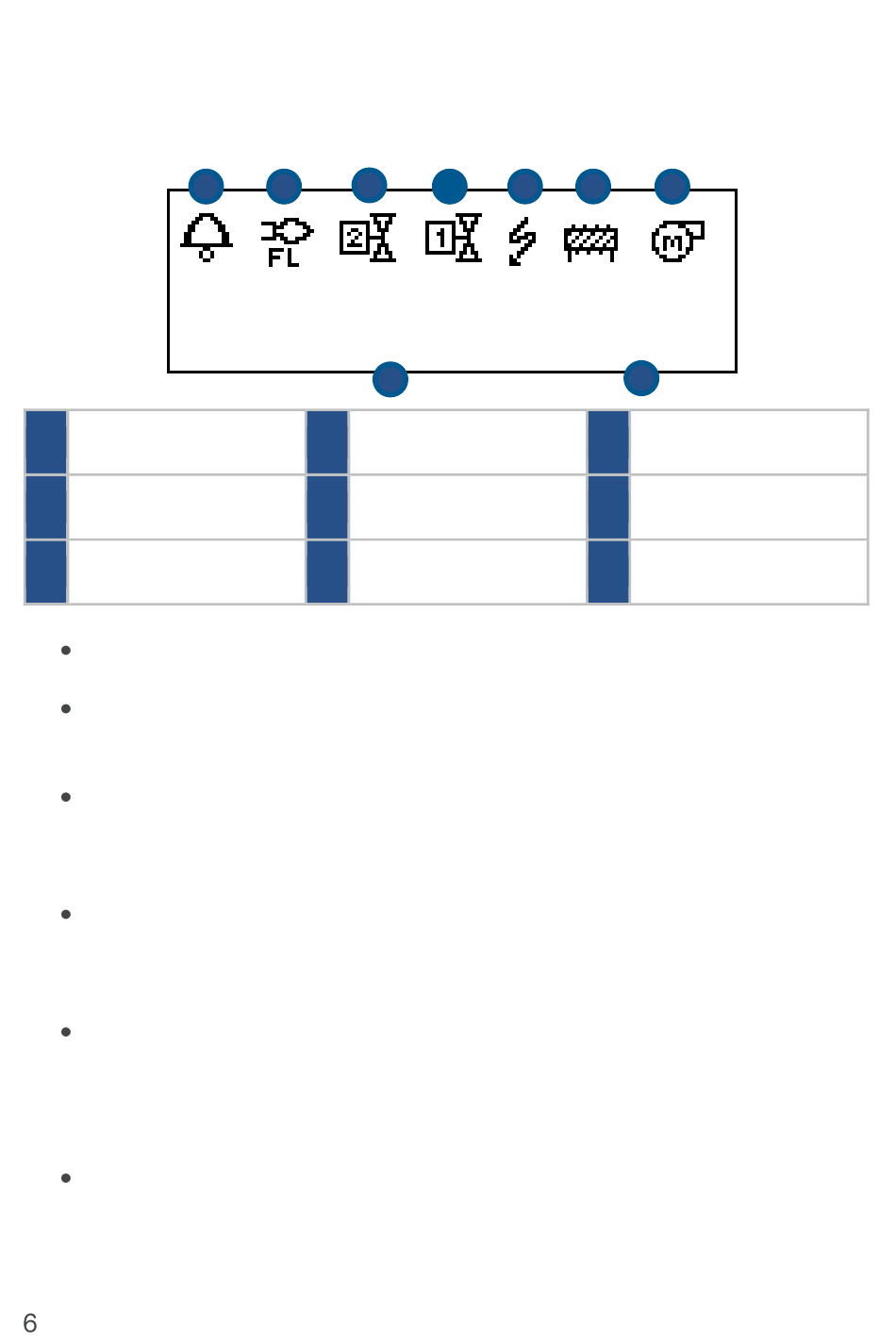

Display
Use the setting key to recall the data step by step:
1. Operating Status of the Burner
*
Error
1
Flame identified
2
Valve 2
3
2. Flame Signal
current flame signal - minimum signal
3. Reserve safety time
Difference between flame detection and end of safety time – Satronic
burner controls only
4. Error
Satronic:
Display of the current and the last 2 errors - fault description, flame
signal with operation-voltage at fault, time of fault shut-down are dis-
played in 3-second intervals.
Siemens:
Display of the current and last 5 faults - with number of burner starts
when the fault occurred.
5. Statistics
Satronic:
Display Total number of faults, number of „extraneous light" faults,
number of „no flame after safety time" faults, number of „flame fail-
ure" faults, total number of burner starts, number of burner starts
since resetting the service counter.
Siemens:
Total number of burner starts, number of burner starts since resetting
the service counter.
6. Control Times of the burner control
2 3
1
2.3µA
Valve 1
4
Ignition
5
Oil Preheater
6
4
5
9
6 7
231V
8
Engine
7
Operating Voltage
8
Flame Signal
9
