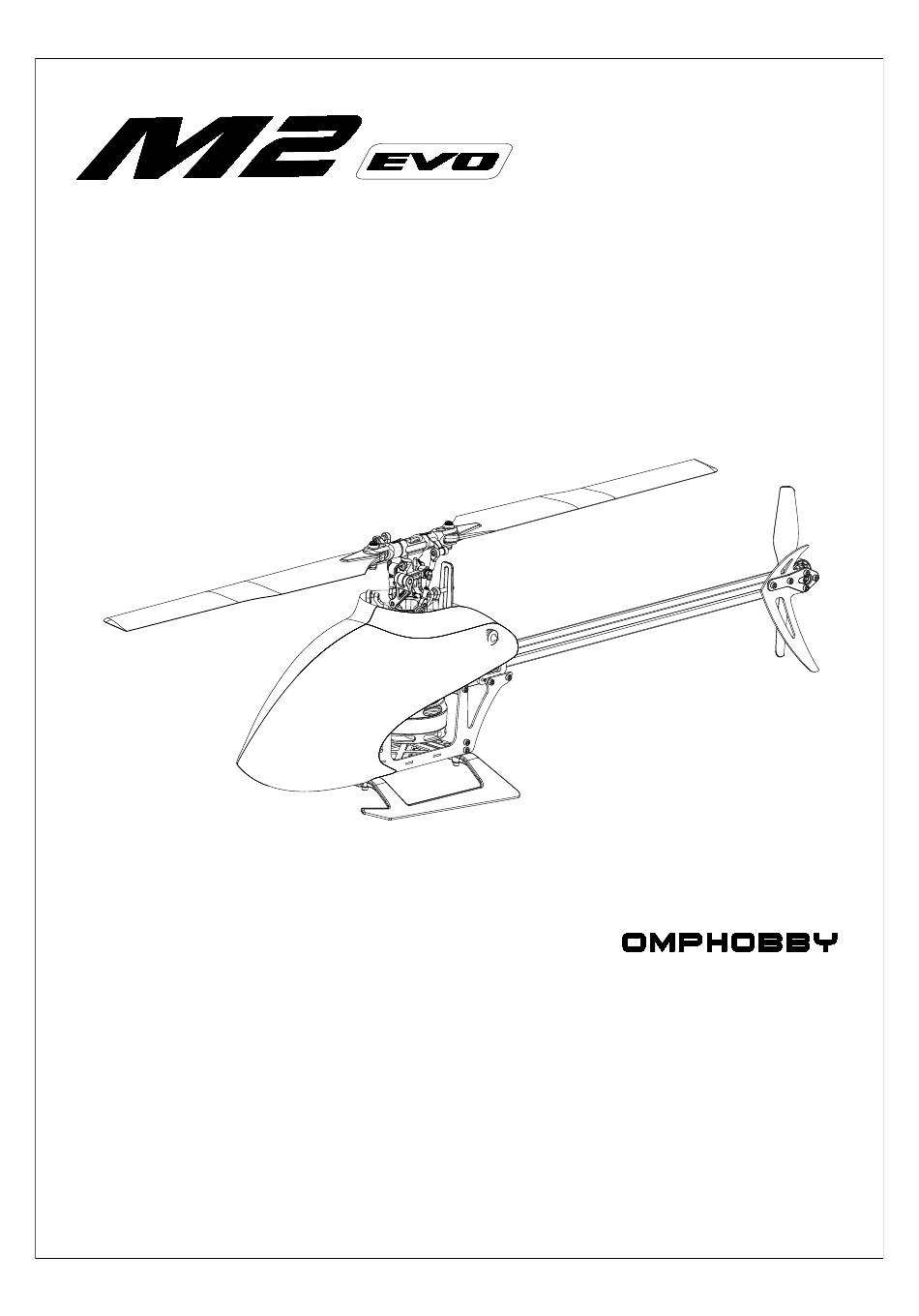

INSTRUCTION MANUAL
使用说明书
www.modellmarkt24.ch
OMP HOBBY
Thank you for buying
is the latest technology in Rotary RC mldels.Please read this
manual carefully before assembling and flying the New
helicopter.We recommend that you keep this manual for future
reference
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN

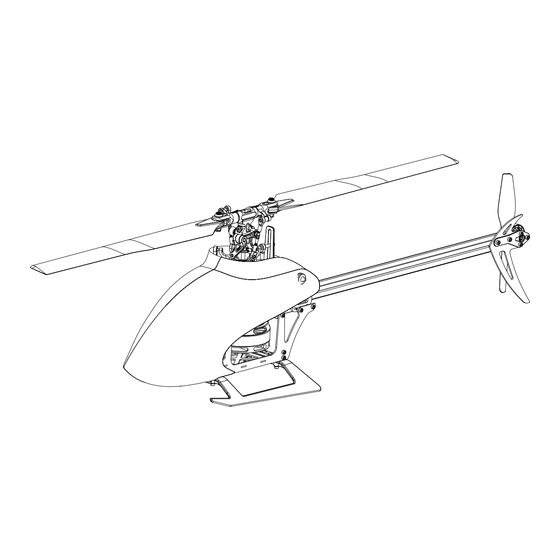

M2 EVO
products.The
M2 EVO
Advertisement
Related Manuals for OMP Hobby M2 EVO
Summary of Contents for OMP Hobby M2 EVO
- Page 1 INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY M2 EVO Thank you for buying products.The is the latest technology in Rotary RC mldels.Please read this M2 EVO manual carefully before assembling and flying the New helicopter.We recommend that you keep this manual for future reference 感谢您选用边锋智驱...
- Page 2 Be sure to retain the manal for future reference, routine maintenance, and tuning. The M2 EVO is a new product developed by OMPHOBBY. lt features the best design available on the Micro-Heli market to date, providing flying stability for beginners,full aerobatic capbility for advanced fliers, and unsurpassed reliability for all customers.
- Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 To ensure the safety of yourself, others and your model do not fly near airports, buildings, roads, crowded areas or high voltage cables. R/C helicopters can fiy at high speed and have high RPM rotor blades thus they pose a certain degree of potential danger.Choose a legal andsafe flying field consisting of flat, smooth ground without obstacles, other people, animals etc.
- Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 Cutter Knife Scissors Needle Nose Pliers Diagonal Cutting Pliers 刀子 剪刀 尖嘴钳 斜口钳 Philips Screw Drive Hex Driver (1.5 & 2mm) 十字螺丝起子 六角螺丝起子 Oil 润滑油 CA Glue 瞬间胶 Thr'dlock AB 胶 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
- Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 422mm 机身长： 422mm Height ： 140mm 机身高： 140mm Main Blade ： 190mm 主旋翼长度： 190mm Main Rotor Diameter ： 434mm 主旋翼直径： 434mm Tail Rotor Diameter ： 88.9mm 尾旋翼直径： 88.9mm Flying Weight ： 345g 起飞重量约： 345g Features 设计特点...
- Page 6 step 1 步骤一 CAUTION Thrust bearing and radial bearing are wear items, and thus should be regularlyinspected and replaced as necessary. 注意 For 3D flights with high headspeed the inspection interval should be reducedto Obverse of bearing faces inside. ensure flight safety. 轴...
- Page 7 step 2 步骤二 Socket screw 柱头内六角螺丝 M2.5x7mm Socket screw Socket screw Socket screw 柱头内六角螺丝 柱头内六角螺丝 柱头内六角螺丝 (M2.5x7mm)x3 (M1.6x6mm)x2 (M1.7x8mm)x2 CAUTION 注意 Socket screw 柱头内六角螺丝 Motor Mount (M1.6x4mm)x4 Spindle retaining ring 主电机固定座 主轴固定环 (Plane) 平 (Inclined plane) Swashplate Phase 斜 plastic Panel 倾斜盘塑胶相位座...
- Page 8 step 3 步骤三 Frame Rear carbon Reinforcement Plate 机身 加强板 Socket screw Socket screw Socket screw 柱头内六角螺丝 柱头内六角螺丝 柱头内六角螺丝 (M1.6x4mm)x6 (M1.7x4mm)x4 (M1.7x6mm)x2 Canopy Fixed Bolt 机壳固定柱 Socket screw 柱头内六角螺丝 M1.6x4mm Socket screw 柱头内六角螺丝 Fuselage Lower Left M1.7x6mm Carbon Fiber Board set Socket screw 机身...
- Page 9 step 4 步骤四 Socket screw 柱头内六角螺丝 M2x10mm-L4 Ball screws 球头螺丝 Washer Washer 垫片 垫片 Ø2xØ3.5x0.4mm Ø2xØ3.5x0.3mm M2 Nut M2 防松螺 Socket screw 柱头内六角螺丝 M2x8mm Bearing 轴 Tilt tray bracket Pros and Cons auxiliary arm 倾斜盘 架 螺距 臂 Pin Shaft 轴...
- Page 10 step 5 步骤五 Landing skid mount 脚架固定座 Landing Skids lock pad 机头罩脚架防松垫 Landing skid Washer 脚架 垫片 Ø1.6xØ3.5x0.4mm Socket screw 柱头内六角螺丝 M1.6x8mm Socket screw Socket screw 柱头内六角螺丝 柱头内六角螺丝 M1.6x4mm (M1.6x8mm)x4 Socket screw 柱头内六角螺丝 (M1.6x4mm)x10 Socket screw Socket screw 柱头内六角螺丝 柱头内六角螺丝 (M2x4mm)x4 M1.6x4mm Socket screw...
- Page 11 step 6 步骤六 Tail Motor 尾电机 3K CF Vertical Stabilizer 3K 碳纤维垂直翼 Socket screw Tail Boom inner Mount 柱头内六角螺丝 Tail Motor M1.6x3mm block Reinforcement Plate 尾管内部固定 尾电机固定座加强片 Tail Boom 尾管 Socket screw 柱头内六角螺丝 M1.6x4mm Socket screw 柱头内六角螺丝 M1.6x6mm Socket screw Socket screw Socket screw 柱头内六角螺丝...
- Page 12 step 7 步骤七 Ball Joint Screw - L3 tooth Length 球头 (Ø3.175x3-M1.6) Socket screw 柱头内六角螺丝 (M1.6x4mm)x3 Servo Swing Arm 舵机摆臂 M1.6 Nut M1.6 螺 Linkage Ball 球头 (Ø3.175x3-M1.6)x1 Servo 全金属舵机 M1.6 Nut 螺 (M1.6)x1 Washer 垫片 Ø2xØ3.6x0.2mm Socket screw 头内十字螺丝 M1.6x4mm Socket screw 柱头内六角螺丝...
- Page 13 step 8 步骤八 约 10 Main rotor arm 主旋翼臂 CH2 Linkage rod CH2 连杆 28.2mm 约 连杆约 28.2mmx3 Linkage rod Approx.28.2mmx3 CH1 Linkage rod CH1 连杆 CH3 Linkage rod CH3 连杆 Flight Control 飞控 Double-sided tape 双 胶 CAUTION 注意 Note:Fist,the double-sided damping rubber should be fully fitted with the receiver board, and then install the flight control.The flight...
- Page 14 step 9 步骤九 Socket screw Screw sleeve M2 Nut Washer 柱头内六角螺丝 M2 防松螺 (M2)x2 M2 螺丝 横轴轴 垫片 Socket screw (M2x12mm-L4)x2 (Ø2.1xØ10x0.3mm)x4 柱头内六角螺丝 (M2x12mm-L4)x2 Screw sleeve M2 螺丝 Washer 垫片 Ø2xØ10x0.2mm M2 Nut M2 防松螺 Main Blade 主旋翼 Socket screw 柱头内六角螺丝...
- Page 15 step 10 步骤十 Batteries 电池 WWW.OMPHOBBY.COM www.modellmarkt24.ch...
- Page 16 step 11 步骤十一 Canopy 机头罩 WWW.OMPHOBBY.COM www.modellmarkt24.ch...
- Page 17 step 12 步骤十二 Data Data 3.3V 数 数 Antenna 天线 POWER 电源线 LED Light LED灯 BIND 对频按键 Tail Motor Main Motor 尾电机线接口 主电机线接口 Flight Parameter Setting lntroduction 飞行参数设置说明 The following flight parameter settings are the reference parameters of Futaba 14sg. As there are many remote controllers in the market ， the throttle parameters are different.
- Page 18 Spare parts picture-1 配件 -1 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2301 Model: OSHM2302 Model: OSHM2303 Model: OSHM2304 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 19 Spare parts picture-2 配件 -2 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2317W Model: OSHM2317O Model: OSHM2014 Model: OSHM2318W 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 20 配件编号 : OSHM2329 配件编号 : OSHM2113 配件编号 : OSHM2330 Product name: Vertical Stabilizer set-Glamour Red Product name: battery Product name: Flight controller set Product name: M2 EVO Screw Kit set 配件名称 : 配件名称 : 配件名称 : 配件名称 : M2 EVO 螺丝组...
- Page 21 Spare parts picture-4 配件 -4 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2338 Model: OSHM2339 Model: OSHM2340 Model: OSHM2341 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 22 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器电源指 （红色） 遥控器 号指 （蓝色） (MODEL HOLD IDLE Attitude mode 姿态模式 Manual mode 手 模式 Manual mode 100% 手 模式 Throttle, Orientation Front Back, Left Right 油门，方 前 ， Flying Ring 吊环...
- Page 23 Transmitter description- 遥控器说明- (Product Model) 产品型号： T6 Handle (Diameters) 外形尺寸长 ： L165*W98*H180 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g 5V <2A Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
- Page 24 Transmitter description-3 遥控器说明-3 SE-0: 姿态模式 /Attitude mode SF-0: 油门正 /Throttle ON SE-1: 手 模式 /Manual mode SF-1: 油门 /Throttle OFF SA: 无 /None SD: 定时器 零 /Timer clear SB-0: 普通模式 /Normal mode S -0 舵量 SB-1: 3D 模式 1/3D IDLE 1 S -1 舵量中等...
- Page 25 Memo 备忘录 WWW.OMPHOBBY.COM www.modellmarkt24.ch...
- Page 26 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2022 www.modellmarkt24.ch...
