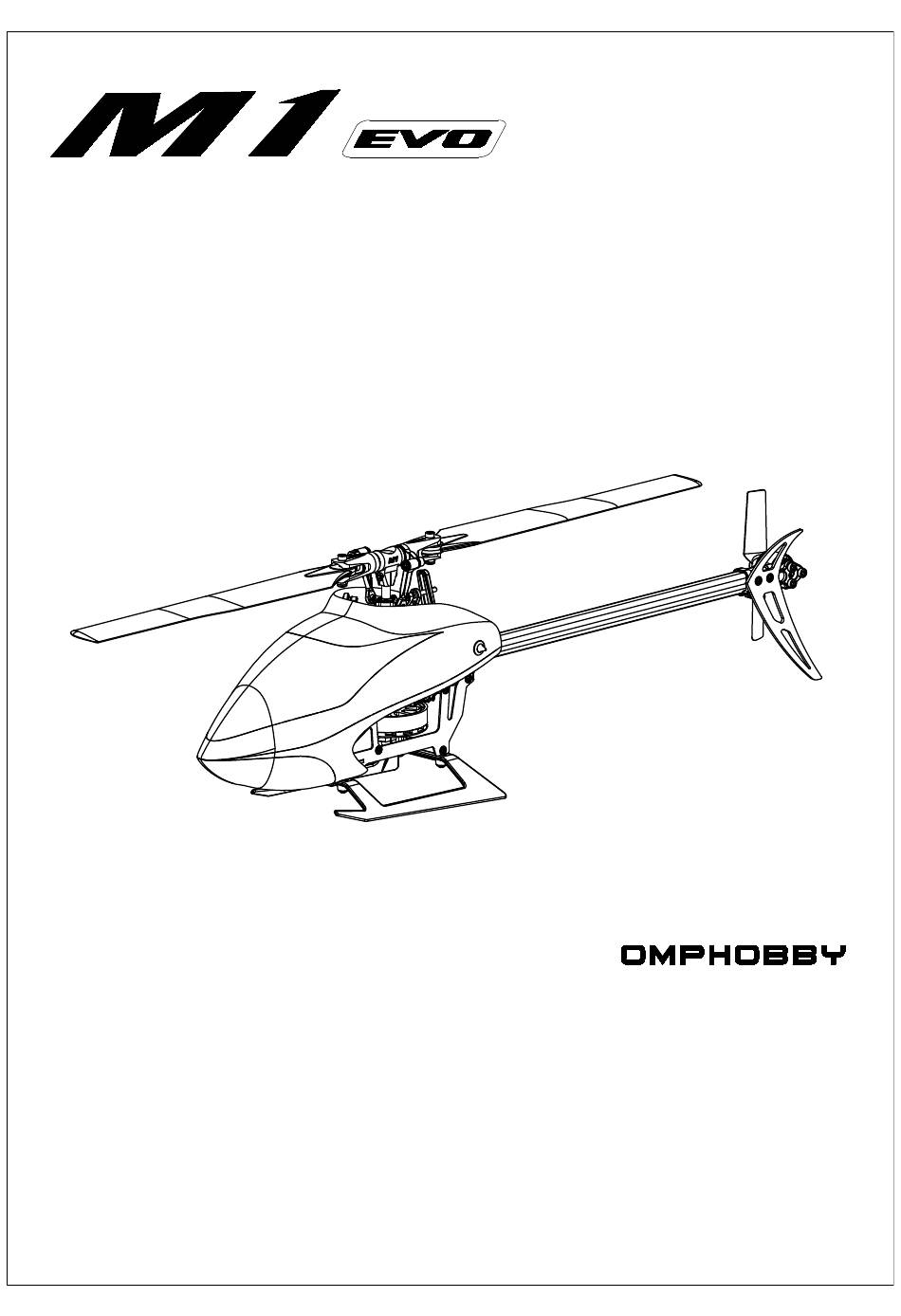

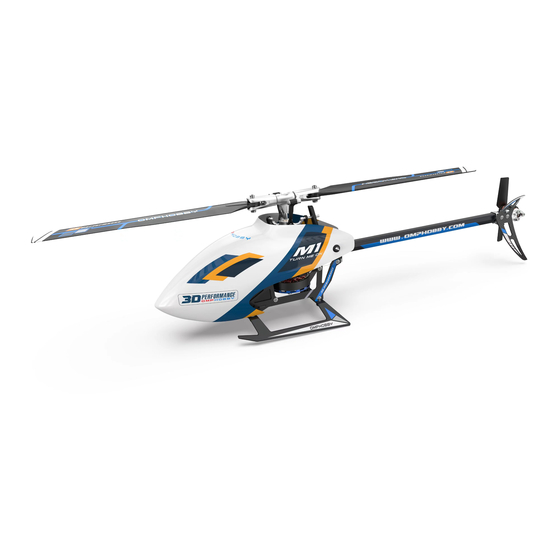

INSTRUCTION MANUAL
使用说明书
OMP HOBBY
Thank you for buying
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
M1
products.The
is the
M1
helicopter.
Advertisement
Related Manuals for OMP Hobby M1 EVO
Summary of Contents for OMP Hobby M1 EVO
- Page 1 INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY Thank you for buying products.The is the latest technology in Rotary RC mldels.Please read this manual carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
- Page 2 INTRODUCTION 前言 Thank you for buying OMPHOBBY Products. The M1 Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms of rotary flight. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual.
- Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
- Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 刀子 剪刀 尖嘴钳 斜口钳 Cutter Knife Diagonal Cutting Pliers Scissors Needle Nose Pliers 十字螺丝起子 六角螺丝起子 Philips Screw Drive Hexagon Screw Driver Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
- Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 290mm 机身长： 290mm Height ： 88mm 机身高： 88mm Main Blade ： 125mm 主旋翼长度： 125mm Main Rotor Diameter ： 290mm 主旋翼直径： 290mm Tail Rotor Diameter ： 46.5mm 尾旋翼直径： 46.5mm Flying Weight ：~ 118g(ENG) 起飞重量约：约 118g( 塑胶外壳舵机 ) Flying Weight ：~ 125g(ENG) 起飞重量约：约...
- Page 6 step 1 步骤一 Bearing-682ZZ Ø2.5xØ6x2.6mm Main rotor holder Bearing-682ZZ CAUTION Ø2.5xØ6x2.6mm Bearing-682ZZ (Ø2.5xØ6x2.6mm)x4 一 For the original assembled product, please confirm whether the screws have been glued and will not loosen before each flight. Washer -Ø2.6xØ4.8x0.4mm Metal main rotor housing Feathering shaft Ø2.5x25.6mm Damper rubber...
- Page 7 step 2 步骤二 Bearing-MR63ZZ Ø3xØ6x2.5mm Servo Mount Bearing-MR63ZZ (Ø3xØ6x2.5mm)x1 Countersunk Hex Socket Screw M1.6x4mm Countersunk Hex Socket Screw (M1.6x4mm)x2 WWW.OMPHOBBY.COM...
- Page 8 step 3 步骤三 Socket screw M1.6x5mm Motor Mount Socket screw M1.4X3 Spindle retaining ring Main motor Socket screw Socket screw (M1.6x5mm)x3 (M1.4x2mm)x1 WWW.OMPHOBBY.COM...
- Page 9 step 4 步骤四 Socket screw M1.4x8mm-L3 M1.4x6mm-L2 Copper sets Ø1.4xØ2.4x4.95mm Washer Ø1.4xØ3.5x0.5mm M1.4 Nut (M1.4) Main Pitch Control Arm Swash plate Socket screw (M1.4x8mm-L3)x2 Washer Ø1.4xØ3.5x0.5mm)x2 Copper sets (Ø1.4xØ2.4x4.95)x2 Socket screw (M1.4x6mm-L2)x1 M1.4 Nut (M1.4)x1 Metal Servo 舵机 3 SET Linkage Ball Ø2.5x4.8-M1.4 Servo Arm...
- Page 10 step 5 步骤五 Socket screw (M1.4x4mm)x2 Socket screw (M1.4x4mm) Anti-loosening screw CAUTION 舵机装配完成视图 Socket screw (M1.4x4mm)x2 CAUTION CAUTION Anti-loosening screw Anti-loosening screw Socket screw Socket screw (M1.4x4mm) (M1.4x4mm) WWW.OMPHOBBY.COM...
- Page 11 step 6 步骤六 CH1 Linkage rod CH2 Linkage rod CH3 Linkage rod CAUTION Vertical Stabilizer 垂直翼 Socket screw 六 (M1.6x3mm)x3 Socket screw Socket screw Before each flight, please check whether the tail rotor and motor shaft are 六 M1.4x3mm loose. If loose, please check the tail rotor and tighten the screws! M1.6x3mm Socket screw 六...
- Page 12 step 7 步骤七 Socket screw M1.4x3mm Frame Right Carbon Fibre Socket screw M1.4x3mm Frame Middle Plate Frame Left Carbon Fibre Landing Skids Mount Socket screw M1.4x3mm ESC Mount Bracket O-Ring Landing Skids Mount Frame Pillar Socket screw M1.4x3mm Socket screw O-Ring φ1*φ4.5*φ1.5 x2 (M1.4x3mm)x10...
- Page 13 step8 步骤八 Landing skid Socket screw Socket screw (M1.4x3mm)x4 M1.4x3mm Socket screw M1.4x3mm Cup Head Cross Socket screw M1.4x3mm PVC Insulating Washer φ1.4*φ4*0.5 Cup Head Cross Socket screw PVC Insulating Washer (M1.4x3mm)X4 (φ1.4*φ4*0.5)X2 WWW.OMPHOBBY.COM...
- Page 14 step 9 步骤九 Anti-loosening screw CAUTION (M1.6x9mm-L3)x2 Main Blade Anti-loosening screw M1.6 Nut M1.6 Anti-loosening screw M1.6 Nut M1.6 (M1.6x9mm-L3)x2 (M1.6)x2 Battery WWW.OMPHOBBY.COM...
- Page 15 step 10 步骤十 Canopy Flight Parameter Setting lntroduction 飞行参数设置说明 General Flight Model IDLE 1 Model IDLE 1 Model 一般飞行模式 IDLE 1模式 IDLE 2模式 Throttle Screw Pitch Throttle Screw Pitch Throttle Screw Pitch 螺距 螺距 螺距 油门 油门 油门 11° 11° 11°...
- Page 16 第16页 Spare parts picture-1 配件 -1 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM1001 Model: OSHM1002 Model: OSHM1003 Model: OSHM1004 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 17 包装方式： 吊卡 +PE 袋 配件编号 : 配件编号 : OSHM1024 OSHM1022 螺丝包组 配件编号 : 包装方式： 吊卡 +PE 袋 配件名称 : M1 EVO Screw kits set Product name: Main chuck gasket set Product name: Lithium Battery Set 主夹头垫片组 锂电池组 配件名称 : 配件名称 : 1.4x3=6 M1.4=1...
- Page 18 Main motor (Yellow) set Product name: Flight Control Product name: Main motor (Orange) set Product name: Product name: Main motor (Silver) set M1 EVO 主电机组 -( 银色 ) 配件名称 : 飞控 配件名称 : M1 EVO 主电机组 -( 魔力橙 ) 配件名称 : M1 EVO 主电机组...
- Page 19 Product name: Battery tray rubber Product name: Servo Gear Set(DS2045MG ) Product name: Servo Plastic Shell Set(DS2045MG ) 舵机外壳组（ DS2045MG ） 配件名称 : 机头罩橡胶圈组 (M1) 配件名称 : O 型圈组 (M1 EVO) 配件名称 : 齿轮组（ DS2045MG ） 配件名称 : 全塑胶外壳 4PCS WWW.OMPHOBBY.COM...
- Page 20 Spare parts picture-5 配件 -5 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM1065 Model: OSHM1217 Model: OSHM1218 Model: OSHM1219 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 21 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器 遥控器 (MODEL HOLD IDLE Attitude mode Manual mode Manual mode 100% Throttle, Orientation Front Back, Left Right Flying Ring POWER-2 Helicopter Battery Indicator POWER-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器...
- Page 22 第22页 (Product Model) 产品型号： T6 (Diameters) 外形尺寸长 ： L165*W98*H180 Handle 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g 5V <2A Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
- Page 23 Memo 备忘录 WWW.OMPHOBBY.COM...
- Page 24 第24页 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2020...
