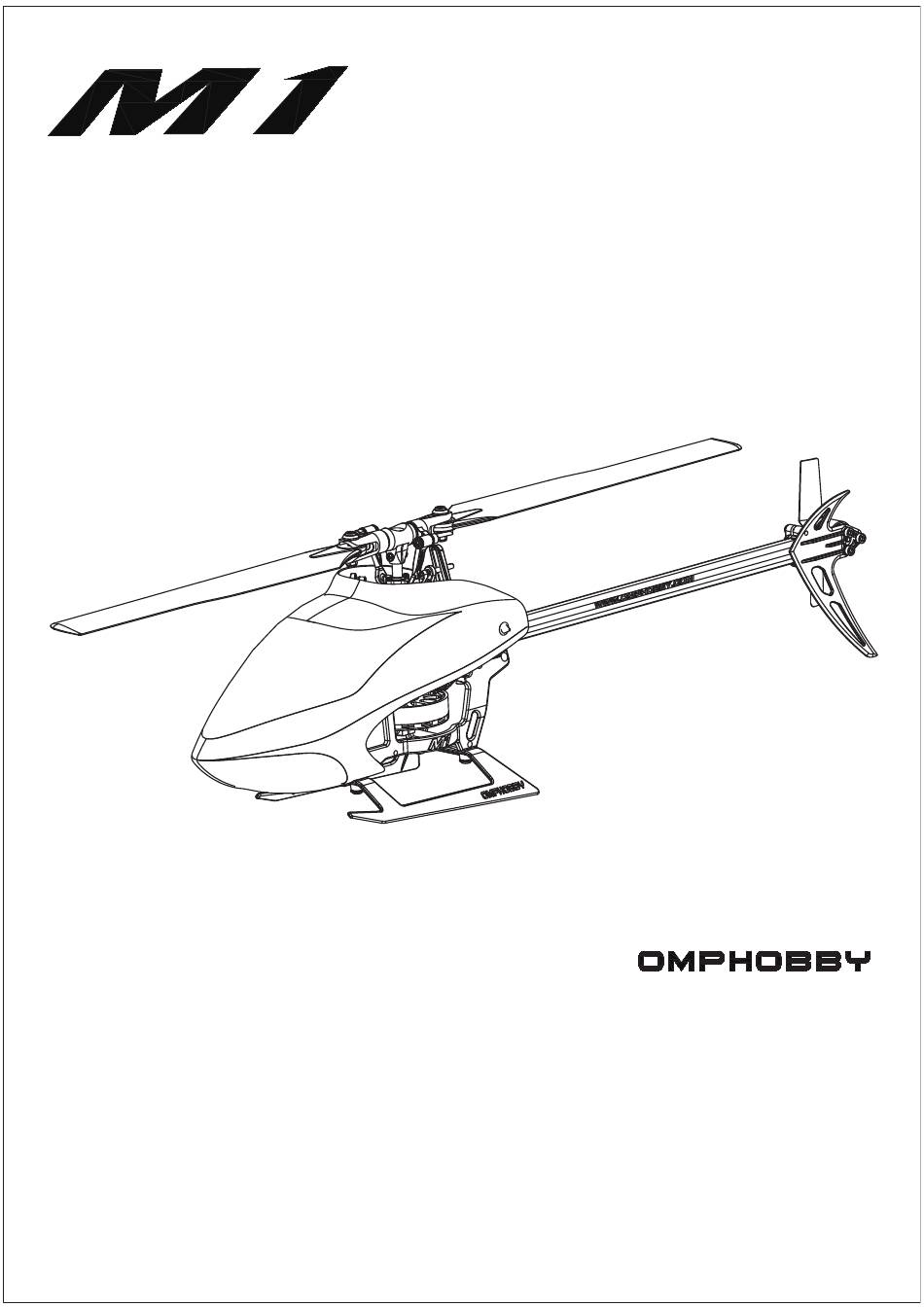

INSTRUCTION MANUAL
使用说明书
OMP HOBBY
Thank you for buying
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
M1
products.The
is the
M1
helicopter.
Advertisement
Related Manuals for OMP Hobby M1
Summary of Contents for OMP Hobby M1
- Page 1 INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY Thank you for buying products.The is the latest technology in Rotary RC mldels.Please read this manual carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
- Page 2 Be sure to retain the manal for future reference, routine maintenance, and tuning. The M1 is a new product developed by OMPHOBBY. lt features the best design available on the Micro-Heli market to date, providing flying stability for beginners,full aerobatic capbility for advanced fliers, and unsurpassed reliability for customer support.
- Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
- Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 Cutter Knife Scissors Needle Nose Pliers Diagonal Cutting Pliers 刀子 斜口钳 剪刀 尖嘴钳 Philips Screw Drive Hexagon Screw Driver 十字螺丝起子 六角螺丝起子 Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
- Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 290mm 机身长： 290mm Height ： 88mm 机身高： 88mm Main Blade ： 125mm 主旋翼长度： 125mm Main Rotor Diameter ： 290mm 主旋翼直径： 290mm Tail Rotor Diameter ： 46.5mm 尾旋翼直径： 46.5mm Flying Weight ：~ 118g 起飞重量约：约 118g Features 设计特点...
- Page 6 Ø2.45xØ4.95x1.4mm CAUTION 注意 Washer 横轴螺丝锁紧后，请注意桨夹能够转动顺畅！ 主夹头内衬 After locked the feather shaft screws,please Ø2.6xØ5.9x0.8mm-2 note that the paddle clamp can turn smoothly ! Socket screw 圆柱头内六角螺丝 M1.6x3mm Socket screw Damper rubber Washer Washer 圆柱头内六角螺丝 横轴避震套 垫片 (Ø2.6xØ4.8x0.4)x2 (M1.6x3mm)x2 主夹头内衬( Ø2.6xØ5.9x0.8mm)x2 Ø2.45xØ4.95x1.4mm...
- Page 7 2 步骤二 Bearing-MR63ZZ 轴承 Ø3xØ6x2.5mm Socket screw 圆柱头内六角螺丝 M1.6x5mm Servo Mount 舵机固定座 Motor Mount 主电机固定座 Socket screw 螺丝 Spindle retaining ring 主轴固定环 Main motor 主电机 Socket screw Socket screw Bearing-MR63ZZ 圆柱头内六角螺丝 (M1.6x5mm)x3 十字机械牙螺丝 (M1.4x2mm)x1 轴承 (Ø3xØ6x2.5mm)x1 WWW.OMPHOBBY.COM...
- Page 8 十字机械牙螺丝 M1.4x8mm-L3 Socket screw 十字机械牙螺丝 M1.4x6mm-L2 Copper sets 铜套 Ø1.4xØ2.4x4.95mm Washer 垫片 Ø1.4xØ3.5x0.5mm Main Pitch Control Arm M1.4 Nut 主螺距控制臂 螺母 (M1.4) Swash plate 倾斜盘 Socket screw 十字机械牙螺丝 (M1.4x8mm-L3)x2 Washer 垫片( Ø1.4xØ3.5x0.5mm)x2 Copper sets 铜套 (Ø1.4xØ2.4x4.95)x2 Socket screw 圆柱头内六角螺丝 (M1.4x6mm-L2)x1 M1.4 Nut...
- Page 9 4 步骤四 Anti-loosening screw 十字机械牙螺丝 (M1.4x3mm)x2 Anti-loosening screw 十字机械牙螺丝 M1.4x4mm Anti-loosening screw 带耐落胶螺丝 CAUTION 注意 舵机装配完成视图 Anti-loosening screw 十字机械牙螺丝 (M1.4x3mm)x4 CAUTION 注意 CAUTION 注意 Anti-loosening screw 带耐落胶螺丝 Anti-loosening screw 带耐落胶螺丝 Anti-loosening screw Anti-loosening screw 十字机械牙螺丝 十字机械牙螺丝 M1.4x3mm M1.4x3mm WWW.OMPHOBBY.COM...
- Page 10 CH2 连杆 CH3 Linkage rod CH3 连杆 CAUTION Socket screw 圆柱头内六角螺丝 注意 M1.6x3mm Socket screw 每次飞行前请检查尾桨与电机轴匹配是否有松动，若有松动， 圆柱头内六角螺丝 请检查尾桨紧固螺丝！ (M1.6x3mm)x3 Before each flight,please check whether the tail propeller is loose when matched with tail motor shaft. if it is loose, please...
- Page 11 6 步骤六 倾斜盘相位座 先将机身左右侧板和倾斜盘相位座预组装，暂时不用锁螺丝。 pre-assemble the fuselage left and right side plates and tilt plate phase seats without locking screws temporarily. 机身左侧板 机身右侧板 Socket screw 圆柱头内六角螺丝 (M1.6x4mm)x4 Socket screw 半圆头十字自攻牙螺丝 (ST1.4x6mm)-7 Socket screw Socket screw 半圆头十字自攻牙螺丝 半圆头十字自攻牙螺丝 (ST1.4x4mm)-1 ST1.4x4mm Socket screw 圆柱头内六角螺丝...
- Page 12 7 步骤七 Socket screw 十字机械牙螺丝 (M1.4x4mm)x4 Landing skid 脚架 Socket screw 半圆头十字自攻牙螺丝 ST1.4x4mm Socket screw 半圆头十字自攻牙螺丝 ST1.4x4mm Socket screw 半圆头十字自攻牙螺丝 (ST1.4x4mm)-4 Socket screw 半圆头十字自攻牙螺丝 ST1.4x4mm Flight Control 飞控 WWW.OMPHOBBY.COM...
- Page 13 8 步骤八 Anti-loosening screw CAUTION 圆柱头内六角螺丝 (M1.6x9mm-L3)x2 注意 Anti-loosening screw M1.6 Nut Anti-loosening screw 圆柱头内六角螺丝 M1.6 螺母 带耐落胶螺丝 (M1.6x9mm-L3)x2 (M1.6)x2 Main Blade 主旋翼 M1.6 Nut M1.6 螺母 Battery 电池 WWW.OMPHOBBY.COM...
- Page 14 step 9 步骤九 Canopy 机头罩 飞行参数设置说明 一般飞行模式 IDLE 1模式 模式 油门 螺距 油门 螺距 油门 螺距 11° 11° 11° 5.5° 5.5° 5.5° 1.8° 0° 0° -0.6° -5.5° -5.5° -2.4° -100 -11° -100 -11° WWW.OMPHOBBY.COM...
- Page 15 Main Rotor Holder Screw group 配件名称 : 主轴中心座组 配件名称 : 配件名称 : 配件名称 : 横轴组 主夹头组 主桨夹螺丝组 压好轴承 M1.6*9 M1.6 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: Model: Model:...
- Page 16 Product name: Bearing Set(682zz) Product name: Main chuck gasket set 配件编号 : OSHM1023 包装方式： 吊卡 +PE 袋 配件名称 : 螺丝包组 配件名称 : 滚珠轴承组 -682zz 配件名称 : 主夹头垫片组 Ø2.5*Ø6*2.6 1.4x3=1 M1.4=1 M1.6x3=3 M1.4x6-L2=1 1.4x2=3 M1.6=2 M1.6x4=6 M1.4x8-L3=2 ST1.4x4=6 ST1.4x4=4 M1.6x5=3 M1.6x9-L3=2 ST1.4x6=8 M1.4x3=6...
- Page 17 step 11 步骤十一 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: Model: Model: Model: OSHM1040 OSHM1041 OSHM1042 OSHM1043 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 18 包装方式： 吊卡 +PE 袋 配件编号 : OSHM1060 配件编号 : OSHM1061 配件编号 : OSHM1062 Charger cable(1V3) Product name: Product name: Servo Ball Joint Set Product name: Canopy Rubber Ring Set(M1) 配件名称 : 充电器线 1V3 配件名称 : 舵机球头螺丝组 配件名称 : 机头罩橡胶圈组 (M1)
- Page 19 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器电源指示灯（红色） 遥控器信号指示灯（蓝色） (MODEL 2) HOLD IDLE Attitude mode 姿态模式 Attitude mode 姿态模式 3D mode 3D 手动模式 100% Throttle, Orientation Front Back, Left Right 油门，方向 前后，左右 Flying Ring 吊环 POWER-2 Helicopter Battery Indicator POWER-1 直升机电量指示灯...
- Page 20 Transmitter description-2 遥控器说明-2 (Product Model) 产品型号： T6 Handle (Diameters) 外形尺寸长 ： L165*W98*H180 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
- Page 21 Memo 备忘录 WWW.OMPHOBBY.COM...
- Page 22 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2020...
