使用说明书
2020
Thank you for buying
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
products.The
OMP HOBBY

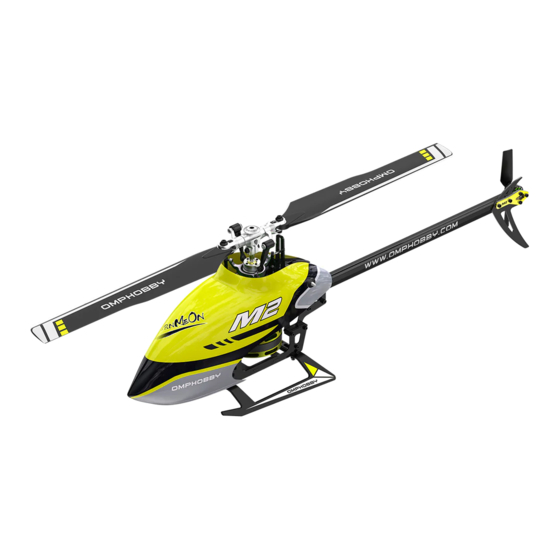

M2
is the
M2
helicopter.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OMP Hobby M2 2020
Summary of Contents for OMP Hobby M2 2020
- Page 1 2020 使用说明书 Thank you for buying products.The is the OMP HOBBY latest technology in Rotary RC mldels.Please read this manual carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
- Page 2 INTRODUCTION 前言 Thank you for buying OMPHOBBY Products. The M2 Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms of rotary flight. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual.
- Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
- Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 Cutter Knife Scissors Needle Nose Pliers Diagonal Cutting Pliers 刀子 斜口钳 剪刀 尖嘴钳 Philips Screw Drive Hexagon Screw Driver 十字螺丝起子 六角螺丝起子 Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
- Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 408mm 机身长： 408mm Height ： 135mm 机身高： 135mm Main Blade ： 173mm 主旋翼长度： 173mm Main Rotor Diameter ： 400mm 主旋翼直径： 400mm Tail Rotor Diameter ： 71.5mm 尾旋翼直径： 71.5mm Flying Weight ： 315g 起飞重量约： 315g Features 设计特点...
- Page 6 step 1 步骤一 CAUTION Obverse of bearing faces inside. Thrust braring and washer for radial bearing are wear items,and thus should be inspected for replacement after every 20 flights. 注意 轴承面凹开口朝内 For flights with high headspeed ,the inspection interval should be reduced to ensure flight safety.
- Page 7 step 2 步骤二 Socket screw 圆柱头内六角螺丝 倾斜盘塑胶相位座 M2.5x7mm Spindle retaining ring Socket screw M3X2.5 主轴固定环 基米螺丝 Motor Mount Hexagon socket head 主电机固定座 tapping screw 圆柱头内六角自攻牙螺丝 Steering gear mount ST1.7x8mm 舵机固定座 Socket screw 圆柱头内六角螺丝 M1.6x6mm Main Motor 主电机 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝...
- Page 8 step 3 步骤三 Canopy Support Rear reinforcing plate 机壳固定柱 Socket screw 机身后加强板 无头内六角螺丝 (M2.5x10mm)x2 Socket screw Socket screw Socket screw 圆柱头内六角螺丝 圆柱头内六角螺丝 圆柱头内六角螺丝 Frame upper side panel Canopy Support (M1.6x3mm)x4 (M1.6x4mm)x6 M1.6x4mm 机身上侧板 机壳固定柱 尾管固定座 Frame upper side panel 机身上侧板 Frame widening mount Rear reinforcing plate 机身加宽固定座...
- Page 9 step 4 步骤四 Hexagon socket head Socket screw tapping screw 圆柱头内六角螺丝 圆柱头内六角自攻牙螺丝 M1.6x3mm ST1.7x6 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝 ST1.7x4 Hexagon socket head Socket screw 飞控盒安装板 tapping screw 圆柱头内六角螺丝 圆柱头内六角自攻牙螺丝 M1.6x3mm ST1.7x6 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝 ST1.7x4 Frame upper side panel 底板...
- Page 10 step 5 步骤五 Socket screw 圆柱头内六角螺丝 M2x10mm-L4 Socket screw 圆柱头内六角螺丝 M2x10mm-L2.5 Washer 垫片 Ø2.1xØ3.6x0.2mm Main Pitch Control Arm 主螺距控制臂 Copper sets 铜套 Ø2.xØ3.9x2.2mm Flange bearing MF52ZZ M2 Nut 滚珠轴承 M2 防松螺母 Ø2xØ5x2.5mm Washer 垫片 Flange bearing MF52ZZ Ø2.1xØ3.6x0.2mm 滚珠轴承 Ø2xØ5x2.5mm Swash plate 倾斜盘...
- Page 11 step 6 步骤六 Landing skid mount 脚架固定座 Socket screw 圆柱头内六角螺丝 (M1.6x8mm)x4 机头罩脚架防松垫 Hexagon socket head machine screw 圆柱头内六角机械螺丝 M1.6x8mm Landing skid 脚架 Socket screw 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝 M1.6x3mm...
- Page 12 step 7 步骤七 Tail motor 尾电机 尾管内部固定块 Socket screw 尾电机固定座加强片 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝 M1.6x3mm Vertical wing 垂直翼 Socket screw Socket screw Socket screw 圆柱头内六角螺丝 M1.6x6mm 圆柱头内六角螺丝 圆柱头内六角螺丝 (M1.6x3mm)x5 (M1.6x6mm)x2 Socket screw 圆柱头内六角螺丝 M1.6x4mm Socket screw Socket screw 圆柱头内六角螺丝 圆柱头内六角螺丝...
- Page 13 step 8 步骤八 Socket screw Linkage Ball Servo Arm Metal Servo M1.6 Nut 圆头内十字螺丝 球头 (Ø3.175x3-M1.6) 全金属舵机 M1.6x4mm 舵机摆臂 M1.6 螺母 Socket screw 圆柱头内六角螺丝 Socket screw Socket screw M1.6x4mm M1.6 Nut Linkage Ball 圆头内十字机械牙螺丝 圆柱头内六角螺丝 螺母 (M1.6)x1 (M1.6x4)x1 球头 (Ø3.175x3-M1.6)x1 (M1.6x4mm)x2 全金属齿轮/塑胶外壳舵机...
- Page 14 step 9 步骤九 约 10mm CH3 Linkage rod CH3 连杆 约 28.2mm 连杆约 28.2mmx3 Linkage rod Approx.28.2mmx3 CH1Linkage rod CH1 连杆 CH2 Linkage rod CH2 连杆 Flight Control 飞控 CAUTION Double-sided tape 双面胶 注意 Note:Fist,the double-sided damping rubber should be fully fitted with the receiver board,and then install the flight control.The flight control must be completely parallel to the fuselage to achieve the best flight performance.
- Page 15 step 10 步骤十 Socket screw Screw sleeve Washer M2 Nut 圆柱头内六角螺丝 M2 防松螺母 (M2)x2 M2 螺丝套 横轴轴承垫片 (M2x12mm-L4)x2 (Ø2.1xØ10x0.3mm)x4 Socket screw 圆柱头内六角螺丝 (M2x12mm-L4) Screw sleeve M2 螺丝套 Washer 横轴轴承垫片 (Ø2.1xØ10x0.3mm) M2 Nut M2 防松螺母 (M2) Socket screw 圆柱头内六角螺丝 (M1.6x6mm)x2 Tail Blade 尾旋翼...
- Page 16 step 11 步骤十一 Battery mount 电池固定板 Hook and loop tape （ hooked ） 魔术粘（勾状） Hook and loop tape （ fuzzy ） 魔术粘（织毛状） Battery 电池 Hook and loop tape 魔术带 Align the sides of the panel with the fuselage bettery compertment slideay, then push it hard to hear a “click”...
- Page 17 step 12 步骤十二 Canopy protector 机头罩橡胶固定圈 Canopy 机头罩 WWW.OMPHOBBY.COM...
- Page 18 step 13 步骤十三 Data Data 3.3V 负极 负极 数据 数据 Antenna 天线 SERVO RUDD ELEV PITCH SPEED AILE AGILE GYRO TAIL MOTOR BIND WWW.OMPHOBBY.COM...
- Page 19 Spare parts picture-1 配件 -1 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2001 Model: OSHM2002 Model: OSHM2003 Model: OSHM2004 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 20 包装方式： 吊卡 +PE 袋 配件编号 : OSHM2056 配件编号 : OSHM2057 配件编号 : OSHM2058 配件编号 : OSHM2059 Product name: OMP HOBBY T6 Remote(MODE 1) Product name: OMP HOBBY T6 Remote(MODE 2) Product name: Canopy Rubber Ring Set Product name: Servo Swing Arm 配件名称 : OMP T6 遥控器...
- Page 21 Spare parts picture-3 配件 -3 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2072 Model: OSHM2074 Model: OSHM2075 Model: OSHM2076 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 22 Spare parts picture-4 配件 -4 Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2107 Model: OSHM2108 Package: Hang tag +PE bag Model: OSHM2110 Product name: Screw Kit Set 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 配件编号 : OSHM2107 配件编号...
- Page 23 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器电源指示灯（红色） 遥控器信号指示灯（蓝色） (MODEL HOLD IDLE Attitude mode 姿态模式 Attitude mode 姿态模式 3D mode 100% 3D 手动模式 Throttle, Orientation Front Back, Left Right 油门，方向 前后，左右 Flying Ring 吊环 POWER-2 POWER-1 Helicopter Battery Indicator 直升机电量指示灯...
- Page 24 Transmitter description-2 遥控器说明-2 (Product Model) 产品型号： T6 Handle (Diameters) 外形尺寸长 ： L165*W98*H180 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
- Page 25 Memo 备忘录 WWW.OMPHOBBY.COM...
- Page 26 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2020...
