INSTRUCTION MANUAL
使用说明书
OMP HOBBY
Thank you for buying
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
M2
products.The
is the

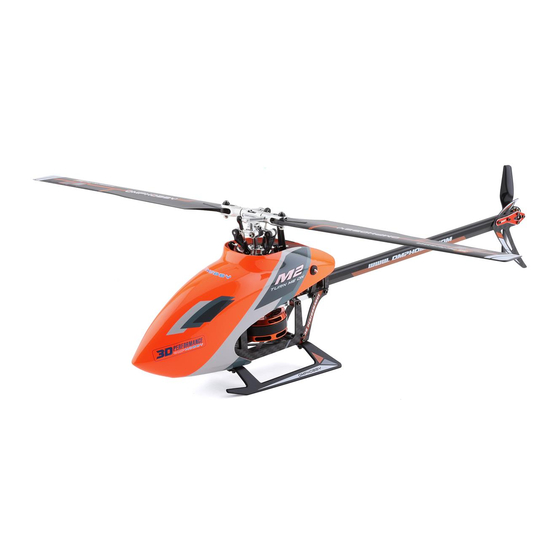

M2
helicopter.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OMP Hobby M2 Evo
Summary of Contents for OMP Hobby M2 Evo
- Page 1 INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY Thank you for buying products.The is the latest technology in Rotary RC mldels.Please read this manual carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
- Page 2 INTRODUCTION 前言 Thank you for buying OMPHOBBY Products. The M2 Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms of rotary flight. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual.
- Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
- Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 刀子 剪刀 尖嘴钳 斜口钳 Cutter Knife Diagonal Cutting Pliers Scissors Needle Nose Pliers 十字螺丝起子 六角螺丝起子 Philips Screw Drive Hexagon Screw Driver Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
- Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 422mm 机身长： 422mm Height ： 140mm 机身高： 140mm Main Blade ： 190mm 主旋翼长度： 190mm Main Rotor Diameter ： 434mm 主旋翼直径： 434mm Tail Rotor Diameter ： 88.9mm 尾旋翼直径： 88.9mm Flying Weight ： 345g 起飞重量约： 345g Features 设计特点...
- Page 6 step 1 步骤一 CAUTION Thrust braring and washer for radial bearing are wear items,and thus should be inspected for replacement after every 20 flights. For flights with high headspeed ,the inspection interval should be reduced to Obverse of bearing faces inside. ensure flight safety.
- Page 7 step 2 步骤二 Socket screw M2.5x7mm Socket screw Socket screw Socket screw (M2.5x7mm)x3 (M1.6x6mm)x2 (M1.7x8mm)x2 Socket screw Motor Mount (M1.6x4mm)x4 Swashplate Phase plastic Panel Spindle retaining ring Socket screw M3X2.5 Socket screw Main Motor M1.7x8mm Servo Mount set Socket screw M1.6x6mm Bearing-684ZZ Socket screw...
- Page 8 step 3 步骤三 Frame Rear carbon Reinforcement Plate Socket screw Socket screw Socket screw (M1.6x4mm)x6 (M1.7x4mm)x4 (M1.7x6mm)x2 Canopy Fixed Bolt Socket screw M1.6x4mm Socket screw Fuselage Lower Left M1.7x6mm Carbon Fiber Board set Socket screw M1.7x4mm Fuselage lower Right Carbon Fiber Board set Flight Control Mounting Panel...
- Page 9 step 4 步骤四 Socket screw M2x10mm-L4 Ball screws Washer Washer Ø2xØ3.5x0.4mm Ø2xØ3.5x0.3mm M2 Nut Socket screw M2x8mm Bearing Tilt tray bracket Pros and Cons auxiliary arm Pin Shaft Socket screw (M2x8mm)x2 Swash plate Socket screw (M2x10mm-L4)x1 Socket screw (M2x4mm)x4 Washer (Ø2xØ3.5x0.3mm)x4 Washer (Ø2xØ3.5x0.4mm)x2...
- Page 10 step 5 步骤五 Landing skid mount Landing Skids lock pad Landing skid Washer Ø1.6xØ3.5x0.4mm Socket screw M1.6x8mm Socket screw Socket screw M1.6x4mm (M1.6x8mm)x4 Socket screw (M1.6x4mm)x10 Socket screw Socket screw (M2x4mm)x4 M1.6x4mm Socket screw Washer M1.6x4mm (Ø1.6xØ3.5x0.4mm)x4 O-ring Socket screw Side plate struts M1.6x4mm WWW.OMPHOBBY.COM...
- Page 11 step 6 步骤六 Tail Motor 3K CF Vertical Stabilizer 3K 碳纤维垂直翼 Socket screw 六 Tail Boom inner Mount Tail Motor M1.6x3mm block Reinforcement Plate Tail Boom 尾管 Socket screw 六 M1.6x4mm Socket screw 六 M1.6x6mm Socket screw Socket screw Socket screw 六...
- Page 12 step 7 步骤七 Ball Joint Screw - L3 tooth Length (Ø3.175x3-M1.6) Socket screw (M1.6x4mm)x3 Servo Swing Arm M1.6 Nut M1.6 Linkage Ball (Ø3.175x3-M1.6)x1 Servo 全金属舵机 M1.6 Nut (M1.6)x1 Washer Ø2xØ3.6x0.2mm Socket screw M1.6x4mm Socket screw M1.6x4mm Socket screw M1.6x4mm Linkage Ball M1.6 Nut (Ø3.175x3-M1.6)x2 (M1.6)x2...
- Page 13 step 8 步骤八 Linkage rod CH2 Linkage rod 28.2mm 28.2mmx3 Linkage rod Approx.28.2mmx3 CH1 Linkage rod CH3 Linkage rod Flight Control Double-sided tape CAUTION Note:Fist,the double-sided damping rubber should be fully fitted with the receiver board, and then install the flight control.The flight control must be completely parallel to the fuselage to achieve the best flight performance.
- Page 14 step 9 步骤九 Socket screw Screw sleeve Washer M2 Nut (M2)x2 Socket screw (M2x12mm-L4)x2 (Ø2.1xØ10x0.3mm)x4 (M2x12mm-L4)x2 Screw sleeve Washer Ø2xØ10x0.2mm M2 Nut Main Blade Socket screw (M1.6x6mm)x2 Tail Blade Socket screw M1.6x6mm WWW.OMPHOBBY.COM...
- Page 15 step 10 步骤十 Batteries WWW.OMPHOBBY.COM...
- Page 16 step 11 步骤十一 Canopy WWW.OMPHOBBY.COM...
- Page 17 step 12 步骤十二 Data Data 3.3V Antenna POWER 电源线 LED Light LED灯 BIND 对频按键 Main Motor Tail Motor 尾电机线接口 主电机线接口 Flight Parameter Setting lntroduction 飞行参数设置说明 General Flight Model IDLE 1 Model IDLE 1 Model 一般飞行模式 IDLE 1模式 IDLE 2模式 Throttle Screw Pitch Throttle Screw Pitch...
- Page 18 Spare parts picture-1 配件 -1 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2301 Model: OSHM2302 Model: OSHM2303 Model: OSHM2304 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 19 Spare parts picture-2 配件 -2 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2317W Model: OSHM2317O Model: OSHM2014 Model: OSHM2318W 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
- Page 20 配件编号 : OSHM2328R 配件编号 : OSHM2329 配件编号 : OSHM2113 配件编号 : OSHM2330 Product name: Vertical Stabilizer set-Glamour Red Product name: battery Product name: Flight controller set Product name: M2 EVO Screw Kit set 配件名称 : 垂直翼组（魅力红） 配件名称 : 电池 配件名称 : 飞控组...
- Page 21 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器 遥控器 (MODEL HOLD IDLE Attitude mode Manual mode 100% Manual mode Throttle, Orientation Front Back, Left Right Flying Ring POWER-2 Helicopter Battery Indicator POWER-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器...
- Page 22 (Product Model) 产品型号： T6 (Diameters) 外形尺寸长 ： L165*W98*H180 Handle 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g 5V <2A Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
- Page 23 Transmitter description-3 遥控器说明-3 SE-0: /Attitude mode SF-0: /Throttle ON SE-1: /Manual mode SF-1: /Throttle OFF SA: /None 器 /Timer clear SB-0: /Normal mode SB-1: 3D 1/3D IDLE 1 SB-2: 3D 2/3D IDLE 2 emote sensin description o orro remote contro Zorro 遥控器...
- Page 24 Memo 备忘录 WWW.OMPHOBBY.COM...
- Page 25 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2022...
