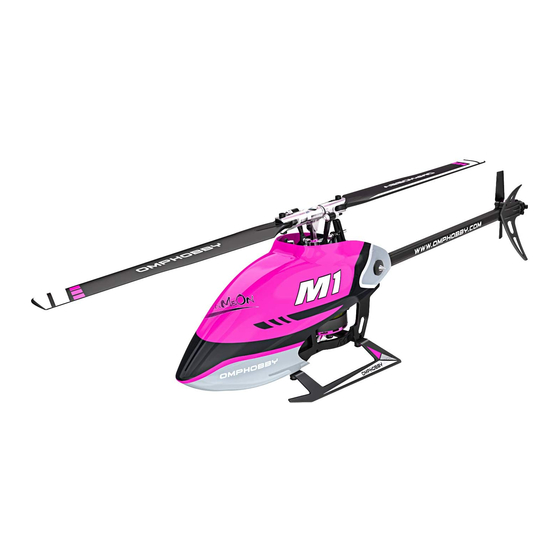

OMP Hobby M1 Manual

Flight controller settings
Hide thumbs Also See for M1:

Advertisement

Quick Links

Download this manual
M1 FLIGHT
CONTROLLER SETTINGS

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OMP Hobby M1

Summary of Contents for OMP Hobby M1

  • Page 1 M1 FLIGHT CONTROLLER SETTINGS...
  • Page 2 DIAGRAM OF FLIGHT CONTROLLER GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV SPEED AILE AGILE BIND GYRO Menu setting button RUDD Rudder setting mode ELEV Elevator setting mode AILE Aileron setting mode SERVO Servo central point setting PITCH Pitch setting SPEED...
  • Page 3 YAW SETTING Press SET for 3 seconds – RUDD light on – SPEED light flashes GND 5V S 5V GND D RUDD SERVO S-BUS DSM/X PITCH ELEV SPEED AILE AGILE BIND GYRO YAW RATE SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 4 YAW SETTING RUDD light on – click SET – GYRO light flashes GND 5V S 5V GND D RUDD SERVO S-BUS DSM/X PITCH ELEV SPEED AILE AGILE BIND GYRO YAW GAIN SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 5 OMPHOBBY www.omphobby.com...
  • Page 6 PITCH SETTING Press SET 3 seconds – ELEV light on – SPEED light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV SPEED AILE AGILE BIND GYRO PITCH RATE SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 7 PITCH SETTING ELEV light on – click SET – AGILE light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X ELEV PITCH AILE SPEED AGILE BIND GYRO PITCH AGILITY SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 8 PITCH SETTING ELEV light on – click SET – GYRO light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV AILE SPEED AGILE BIND GYRO PITCH GAIN SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 9 AILERON SETTING Press SET 3 seconds – AILE light on – SPEED light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV SPEED AILE AGILE BIND GYRO AILERON RATE SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 10 AILERON SETTING AILE light on – click SET – AGILE light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV AILE SPEED AGILE BIND GYRO AILERON AGILITY SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 11 AILERON SETTING AILE light on – click SET – GYRO light flashes GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV AILE SPEED AGILE BIND GYRO AILERON GAIN SETTING To adjust flight controller settings, press the SET key for 3 seconds.
  • Page 12 SERVO MID-POINT SETTING SERVO MID-POINT SETTING GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV AILE SPEED AGILE BIND GYRO SERVO MID-POINT SETTING To adjust flight controller settings, press the SET key for 3 seconds. Click SET key until SERVO light is on. Use the sticks of aileron, elevator, and rudder to setup the mid-point of the servos.

  • Page 13: Transmitter Description

    C OLLECTIVE PITCH SETTING Transmitter description Remote Control Power Light (Red) Remote Control Power Light (Blue) HOLD IDLE OMPHOBBY Attitude mode Attitude mode 3D mode 100% Front, Back, Throttle, Orientation Left, Right Helicopter Battery Indicator -11-...
  • Page 14 COLLECTIVE PITCH SETTING Click SET – PITCH light on SERVO RUDD PITCH ELEV SPEED AILE AGILE GYRO COLLECTIVE PITH SETTING To adjust flight controller settings, press the SET key for 3 seconds. Click SET key until PITCH light is on. Toggle the hold switch of radio transmitter to activate the throttle-cut.

  • Page 15: Reset Default Setting

    RESET DEFAULT SETTINGS Click SET 10 times GND 5V S 5V GND D SERVO RUDD S-BUS DSM/X PITCH ELEV AILE SPEED AGILE BIND GYRO RESET DEFAULT SETTING After a radio is bound to the helicopter, click SET key ten times, the blue and red LED lights of the flight controller will flash at the same time.
  • Page 16 DIAGRAM OF FLIGHT CONTROL SETTINGS blue light lighting -13-...
