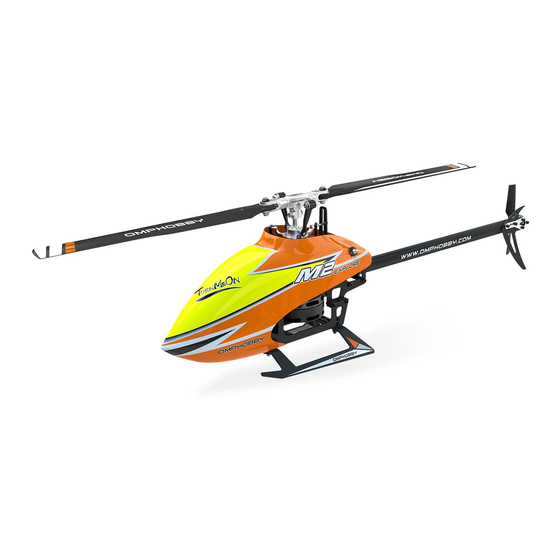

OMP Hobby M2 EXPLORE Instruction Manual

Hide thumbs Also See for M2 EXPLORE:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
使用说明书
EXPLORE
Thank you for buying
latest technology in Rotary RC mldels.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
OMP HOBBY
products.The
M2 EXP
M2EXP
is the
helicopter.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M2 EXPLORE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OMP Hobby M2 EXPLORE

Summary of Contents for OMP Hobby M2 EXPLORE

  • Page 1 EXPLORE INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY M2EXP Thank you for buying products.The is the latest technology in Rotary RC mldels.Please read this manual M2 EXP carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
  • Page 2 -EXPLORE INTRODUCTION 前言 Thank you for buying OMPHOBBY Products. The M2EXP Helicopter is designed as an easy to use,full featured Helicopter R/C model capable of all forms of rotary flight. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual.
  • Page 3 -EXPLORE Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
  • Page 4 -EXPLORE EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 刀子 剪刀 尖嘴钳 斜口钳 Cutter Knife Scissors Needle Nose Pliers Diagonal Cutting Pliers 六角螺丝起子 十字螺丝起子 Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 Philips Screw Drive Hexagon Screw Driver 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
  • Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 408mm 机身长： 408mm Height ： 135mm 机身高： 135mm Main Blade ： 173mm 主旋翼长度： 173mm Main Rotor Diameter ： 400mm 主旋翼直径： 400mm Tail Rotor Diameter ： 71.5mm 尾旋翼直径： 71.5mm Flying Weight ： 306g 起飞重量约： 306g Features 设计特点...
  • Page 7 -EXPLORE step 2 步骤二 倾斜盘塑胶相位座 Socket screw 圆柱头内六角螺丝 Spindle retaining ring Socket screw M2.5x7mm 主轴固定环 基米螺丝 M3X2.5 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝 Steering gear mount ST1.7x8mm 舵机固定座 Motor Mount Socket screw 主电机固定座 圆柱头内六角螺丝 M1.6x6mm Hexagon socket head Main Motor tapping screw 主电机...
  • Page 8 -EXPLORE step 3 步骤三 Canopy Support 机壳固定柱 Rear reinforcing plate 机身后加强板 Socket screw Socket screw Socket screw 圆柱头内六角螺丝 圆柱头内六角螺丝 圆柱头内六角螺丝 Frame upper side panel Canopy Support (M1.6x3mm)x4 (M1.6x4mm)x6 M1.6x4mm 机壳固定柱 机身上侧板 尾管固定座 Frame upper side panel 机身上侧板 Frame widening mount Rear reinforcing plate 机身加宽固定座...
  • Page 9 -EXPLORE step 4 步骤四 Hexagon socket head Socket screw tapping screw 圆柱头内六角螺丝 圆柱头内六角自攻牙螺丝 M1.6x3mm ST1.7x6 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝 ST1.7x4 Hexagon socket head 飞控盒安装板 Socket screw tapping screw 圆柱头内六角螺丝 圆柱头内六角自攻牙螺丝 M1.6x3mm ST1.7x6 Hexagon socket head tapping screw 圆柱头内六角自攻牙螺丝 ST1.7x4 Frame upper side panel 底板...
  • Page 10 -EXPLORE step 5 步骤五 Socket screw 圆柱头内六角螺丝 M2x10mm-L4 Socket screw 圆柱头内六角螺丝 M2x10mm-L2.5 Washer 垫片 Ø2.1xØ3.6x0.2mm Main Pitch Control Arm 主螺距控制臂 Copper sets 铜套 Ø2.xØ3.9x2.2mm Flange bearing MF52ZZ M2 Nut 滚珠轴承 M2 防松螺母 Ø2xØ5x2.5mm Washer 垫片 Flange bearing MF52ZZ Ø2.1xØ3.6x0.2mm 滚珠轴承 Ø2xØ5x2.5mm Swash plate 倾斜盘...
  • Page 11 -EXPLORE step 6 步骤六 Landing skid mount 脚架固定座 机头罩脚架防松垫 Landing skid 脚架 Hexagon socket head machine screw 圆柱头内六角机械螺丝 M1.6x8mm Hexagon socket head machine screw 圆柱头内六角机械螺丝 M1.6x8mm Socket screw 圆柱头内六角螺丝 (M1.6x3mm)x8 Socket screw 圆柱头内六角螺丝 (M1.6x8mm)x4 Socket screw 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝...
  • Page 12 -EXPLORE step 7 步骤七 Tail motor 尾电机 尾管内部固定块 Socket screw 尾电机固定座加强片 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝 M1.6x3mm Vertical wing 垂直翼 Socket screw 圆柱头内六角螺丝 Socket screw Socket screw 圆柱头内六角螺丝 圆柱头内六角螺丝 M1.6x6mm (M1.6x3mm)x5 (M1.6x6mm)x2 Socket screw 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 (半牙，牙长4) M1.6x12mm Socket screw Socket screw...
  • Page 13 -EXPLORE step 8 步骤八 Socket screw Linkage Ball 圆头内十字螺丝 Servo Arm Metal Servo M1.6 Nut 球头 (Ø3.175x3-M1.6) 舵机摆臂 螺母 M1.6 全金属舵机 M1.6x4mm Socket screw 圆柱头内六角螺丝 Socket screw Socket screw M1.6x4mm 圆头内十字机械牙螺丝 M1.6 Nut 圆柱头内六角螺丝 Linkage Ball 螺母 (M1.6)x1 球头 (Ø3.175x3-M1.6)x1 (M1.6x4)x1 (M1.6x4mm)x2 全金属齿轮/塑胶外壳舵机...
  • Page 14 -EXPLORE step 9 步骤九 连杆约 28.2mmx3 约 10mm Linkage rod 约 28.2mm Approx.28.2mmx3 CH1 Linkage rod CH1 连杆 CH3 Linkage rod CH3 连杆 CH2 Linkage rod CH2 连杆 Flight Control 飞控 CAUTION Double-sided tape 双面胶 注意 Note:Fist,the double-sided damping rubber should be fully fitted with the receiver board,and then install the flight control.The flight control must be completely parallel to the fuselage to achieve the best flight performance.
  • Page 15 -EXPLORE step 10 步骤十 Socket screw M2 Nut Screw sleeve Washer 圆柱头内六角螺丝 M2 防松螺母 (M2)x2 M2 螺丝套 横轴轴承垫片 (M2x12mm-L4)x2 (Ø2.1xØ10x0.3mm)x4 Socket screw 圆柱头内六角螺丝 (M2x12mm-L4) Screw sleeve M2 螺丝套 Washer 横轴轴承垫片 (Ø2.1xØ10x0.3mm) M2 Nut M2 防松螺母 (M2) Socket screw 圆柱头内六角螺丝 (M1.6x6mm)x2 Tail Blade 尾旋翼...
  • Page 16 -EXPLORE step 11 步骤十一 Battery mount 电池固定板 Hook and loop tape （ hooked ） 魔术粘（勾状） Hook and loop tape （ fuzzy ） 魔术粘（织毛状） Battery 电池 Hook and loop tape 魔术带 Align the sides of the panel with the fuselage bettery compertment slideay, then push it hard to hear a “click”...
  • Page 17 -EXPLORE step 12 步骤十二 Canopy 机头罩 Canopy protector 机头罩橡胶固定圈 WWW.OMPHOBBY.COM...
  • Page 18 -EXPLORE step 13 步骤十三 Data Data 3.3V 负极 负极 数据 数据 Antenna 天线 SERVO RUDD PITCH ELEV SPEED AILE AGILE GYRO TAIL MOTOR BIND 飞行参数设置说明 一般飞行模式 IDLE 1模式 模式 油门 螺距 油门 螺距 油门 螺距 11° 11° 11° 5.5° 5.5° 5.5°...
  • Page 19 Spare parts picture-1 配件 -1 Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2002 Model: OSHM2005 Model: OSHM2008 Package: Hang tag +PE bag Model: OSHM2010 Package: Hang tag +PE bag 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 包装方式：...
  • Page 20 配件编号 : OSHM2055 Product name: Battery Magic Tape Set Product name: Pull Rod Head Set Product name: Futaba Satellite Receiver Product name: OMP HOBBY T6 Remote(MODE 1) 配件名称 : 电池魔术贴组 配件名称 : futaba 卫星接收机 配件名称 : OMP T6 遥控器 (MODE 1) 配件名称...
  • Page 21 Spare parts picture-3 配件 -3 Model: OSHM2089 Package: Hang tag +PE bag Package: Hang tag +PE bag Package: Hang tag +PE bag Model: OSHM2090 Model: OSHM2091 Package: Hang tag +PE bag Model: OSHM2092 配件编号 : OSHM2089 包装方式： 吊卡 +PE 袋 包装方式：...
  • Page 22 Spare parts picture-4 配件 -4 Package: Hang tag +PE bag Package: Hang tag +PE bag Product name: Screw Kit Set 适用机型 : M2-EXP Package: Hang tag +PE bag Model OSHM2109 Model: OSHM2110 Model: OSHM2111 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 配件编号: OSHM2109 M2-V2 配件编号...
  • Page 23 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器电源指示灯（红色） 遥控器信号指示灯（蓝色） (MODEL 2) HOLD IDLE 姿态模式 Attitude mode 手动模式 Manual mode 100% Manual mode 手动模式 Throttle, Orientation Front Back, Left Right 油门，方向 前后，左右 Flying Ring 吊环 POWER-2 POWER-1 Helicopter Battery Indicator 直升机电量指示灯...
  • Page 24 -EXPLORE Transmitter description-2 遥控器说明-2 (Product Model) 产品型号： T6 (Diameters) 外形尺寸长 ： L165*W98*H180 Handle 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
  • Page 25 -EXPLORE Memo 备忘录 WWW.OMPHOBBY.COM...
  • Page 26 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2020...
