Important information on the document WARNING Operating this product without following the operating instructions May result in death or very serious injuries as a result of following improper procedures Study the operating instructions if you are to work with this product Familiarise yourself with the structure and contents of the operating instructions by reading the "Scope of the document"... -
Page 5: Scope Of The Document
Scope of the document This document relates to one or more of the products below: Reference number Machine designation 701F40=1 Socket router Pro-Fit 2000 Vario 701F40=1-US Socket router Pro-Fit 2000 Vario Nameplate key Product name Serial number Article number Voltage in volts/Frequency in Hz/Power in kW... -
Page 6: Document Release Date
Document release date Release date [year-month-day] Version number 2017-04-26 1717 Original operator's manual information This manual was created as the original operator's manual in the Dutch language. This manual in any other language is a translation of the original. -
Page 7: Product Description
Product description Intended use WARNING Use this product exclusively for the intended use. The manufacturer is only liable to the extent that the socket router Pro-Fit 2000 Vario is used in accordance with the instructions. You are advised to maintain this product in accordance with the manual. The product was designed for the following areas of application: Intended production methods Milling... -
Page 8: Explanation Of Symbols On The Product
Explanation of symbols on the product The symbols listed below appear on stickers attached to the product: Danger, voltage. Disconnect the voltage source before opening. Caution: First read the operator's manual carefully before using and/or operating this machine. Caution: rotating shaft. Contact with the shaft may cause very serious injuries resulting in death. -
Page 9: Product Overview

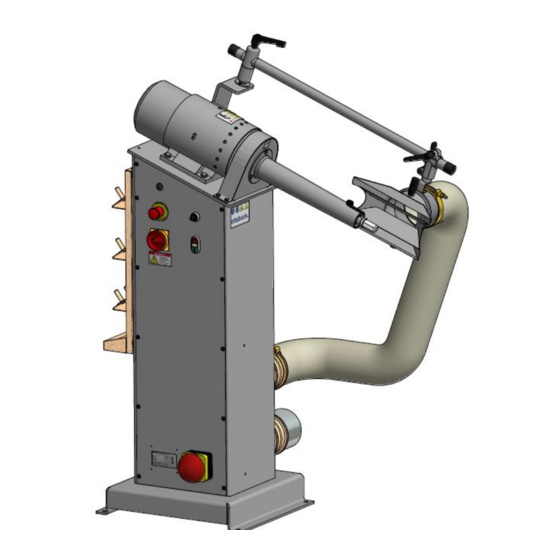

Product overview Product overview Socket router motor Interchangeable shaft guard Suction arm Suction nozzle Adapter/tool holder Operating panel Tool rack... -
Page 10: Operating Elements
Operating elements 2.5.1 Mains switch The product is ON when the switch is in the I ON position. The product is OFF when the switch is in the O OFF position. The mains switch can be locked in position O OFF using a padlock. -
Page 11: Operating Panel
2.5.2 Operating panel Operating panel key Emergency stop Stepless adjustment of motor rotation speed Start/stop buttons for socket router motor Mains switch Foot-operated emergency stop... - Page 12 1. Machine emergency stop. Pressing this button in immediately stops all moving and rotating parts of the machine. This button is only to be used in emergencies and/or when an emergency situation threatens to arise. 2. Stepless adjustment of motor rotation speed. Rotating this dial between 0 and 10 adjusts the rotation speed of the motor steplessly to any value between 1195 and 3890 rpm.
-
Page 13: Transport
Transport WARNING Never walk or stand under suspended loads May result in death or very serious injuries as a result of following improper procedures Ensure that no persons are located near suspended loads during transport. WARNING A number of precautions must be taken to ensure safety during transport: Wear safety shoes Ensure the personnel are properly trained Always lift or hoist with at least two people... -
Page 14: Unpacking
Unpacking ATTENTION Lift or hoist the product only at the point over the centre of gravity and ensure proper stability (for instance by using a forklift) When lifting or hoisting, make sure the product cannot fall over Place the product or parts of the product in suitable locations Protect the product from moisture When unpacking, a number of precautions must be taken to ensure safety: Wear safety shoes... -
Page 15: Inspecting The Delivered Contents
Product contents Product description Article number Image Socket router Pro-Fit 2000 Vario 701F40=1 or 701F40=1-US Manual for the socket router Pro-Fit 2000 Vario JAM-16.10.0115.0 Electrical diagram Push-fit connector Ø 125mm 702Y220=125 Open-ended spanner - 27mm 702F6=27 Earth cable for cuff JAM-01.99.1061.0... - Page 16 Shaft guard, short 702F196 Protective nut 5/8” 502K2=5/8” Adapter 5/8” - M16 702F7=M16 Adapter 5/8” – 5/8” 702F7=5/8” Socket router accessories 646D1074 The following product is supplied additionally with the 701F40=1: CEE wall socket, 230V (blue) JAM-01.06.0051.0...
-
Page 17: Installation
Sufficient space should be left around the product to allow for its operation and maintenance and for the heat to be dissipated. The surface must have a minimum load capacity equal to the weight of the socket router Pro-Fit 2000 Vario plus 10%. The weight of the product Technical Data can be found in the "... -
Page 18: Connecting The Product
Connecting the product Once the socket router Pro-Fit 2000 Vario has been positioned in its intended location with the required space left around it, it must be anchored to the floor to avoid the risk of it tipping over. It can then be connected up. -
Page 19: Anchoring The Product
6.1.4 Anchoring the product Step 1: Drill 12mm/0.4844 inch diameter holes in the floor to a depth of 75mm/3 inches using the centre spacings shown in the figure below: Step 2: Position the nut as high up on the thread as possible to prevent damage to the thread. -
Page 20: Technical Data
Technical data Name: 701F40=1(-US) socket router Year of manufacture: See nameplate Type: 701F40=1 701F40=1-US Weight [kg/lbs]: 120 kg/264 lb 120 kg/264 lb Dimensions: Width: 800 mm/31.5 in 800 mm/31.5 in Depth: 1220 mm/48.03 in 1220 mm/48.03 in Height: 1560 mm/61.4 in 1560 mm/61.4 in Power [kW/hp]: 2.2/2.99... -
Page 21: Ec Declaration Of Conformity
Manufacturer: Jos America Machines B.V. Industriepark "het Hoog" Mandenmaker 14 5253 RC, Nieuwkuijk, The Netherlands Hereby declares that the socket router Pro-Fit 2000 Vario manufactured by us complies fully with the following directives: 2006/42/EC General machinery directive 2014/35/EU Low voltage directive... -
Page 22: Use
This section describes the daily operation of the socket router Pro-Fit 2000 Vario. The product is only suitable for applications as described in the "Intended use" section. Safety measures, including the following, must be taken during use: Safety shoes required. -
Page 23: Adjusting The Suction Arm
Adjusting the suction arm WARNING Switch the product off before performing the actions described in this section May result in death or very serious injuries as a result of following improper procedures Appropriately trained personnel A number of levers allow the suction arm to be set to any position. -
Page 24: Exchanging The Shaft Guard
Exchanging the shaft guard WARNING Switch the product off before performing the actions described in this section May result in death or very serious injuries as a result of following improper procedures Appropriately trained personnel A long and a short guard are supplied for fitting over the motor shaft. - Page 25 The long shaft guard is fitted with an adjustable protective sleeve. This can be slid backwards or forwards to achieve optimal extraction for the type of tool being used at the time.
-
Page 26: Changing The Adapter And/Or Tool
Changing the adapter and/or tool WARNING Switch the product off before performing the actions described in this section May result in death or very serious injuries as a result of following improper procedures Appropriately trained personnel The tip of the socket router motor shaft is equipped with a hole having a 5/8"... -
Page 27: Servicing The Product
Servicing the product Servicing of the products of Ottobock | Jos America must only be performed by the supplier or by an installer approved by the supplier. Ensure that the power supply is completely disconnected during servicing, either by setting the mains switch to the O OFF position (see the "Mains switch"... -
Page 28: Failures And Maintenance
Failures and maintenance 11.1 Failures The most common malfunctions are mechanical failures which are generally easy to fix. Malfunction Possible cause Possible solution The machine is - Caused by the machine's natural - Change the rotation speed until vibrating frequency the vibration ceases (see the Operating elements "... -
Page 29: Maintenance
Before opening, remove the plug from the socket. The socket router Pro-Fit 2000 Vario requires no periodic maintenance. It is important however to keep the product clean. Ensure it is left free of dust and chips each... -
Page 30: Pictograms Used
Pictograms used In the following subsections you will see the symbols and pictograms that may be used in this document, together with their meaning. 12.1 Warning symbols Warning of general danger Warning of suspended loads Risk of tipping Hazardous voltage warning Warning of rotating parts Warning for splinters Noise warning... - Page 31 Toxic materials warning Irritating substances warning Risk of crushing lower limbs (such as feet) Risk of tripping Slip hazard warning Risk of crushing upper limbs (such as hands) Risk of cutting upper limbs (such as hands)
-
Page 32: Mandatory Symbols
12.2 Mandatory symbols General mandatory symbols You must read the manual carefully Work only with two people or in the presence of a second person Hair covering required Hearing protection required Eye and hearing protection required Eye protection required... - Page 33 Wear eye and mouth protection Light respiratory protection required Safety clothing required Safety gloves Safety shoes required Remove plug from socket before opening Switch before use Padlock required...
-
Page 34: Prohibition Symbols
12.3 Prohibition symbols Never walk or stand under suspended loads. Gloves prohibited Suction of sources of ignition prohibited 12.4 Pictograms for transport and storage Place in front of the forks of the forklift/pallet truck Lifting point This side up for transport and storage Protect from contamination Note the centre of gravity... -
Page 35: Notes
