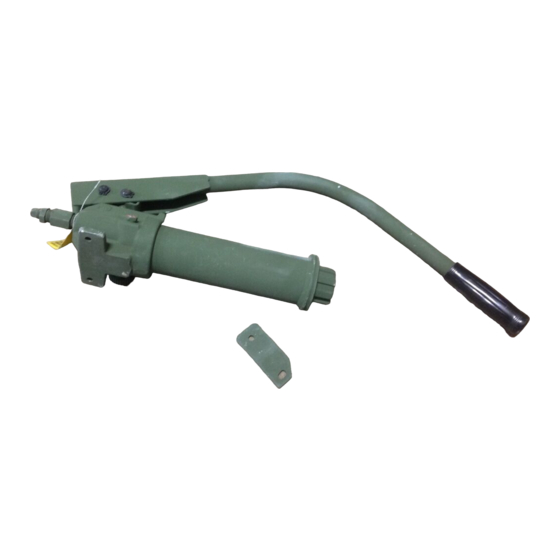

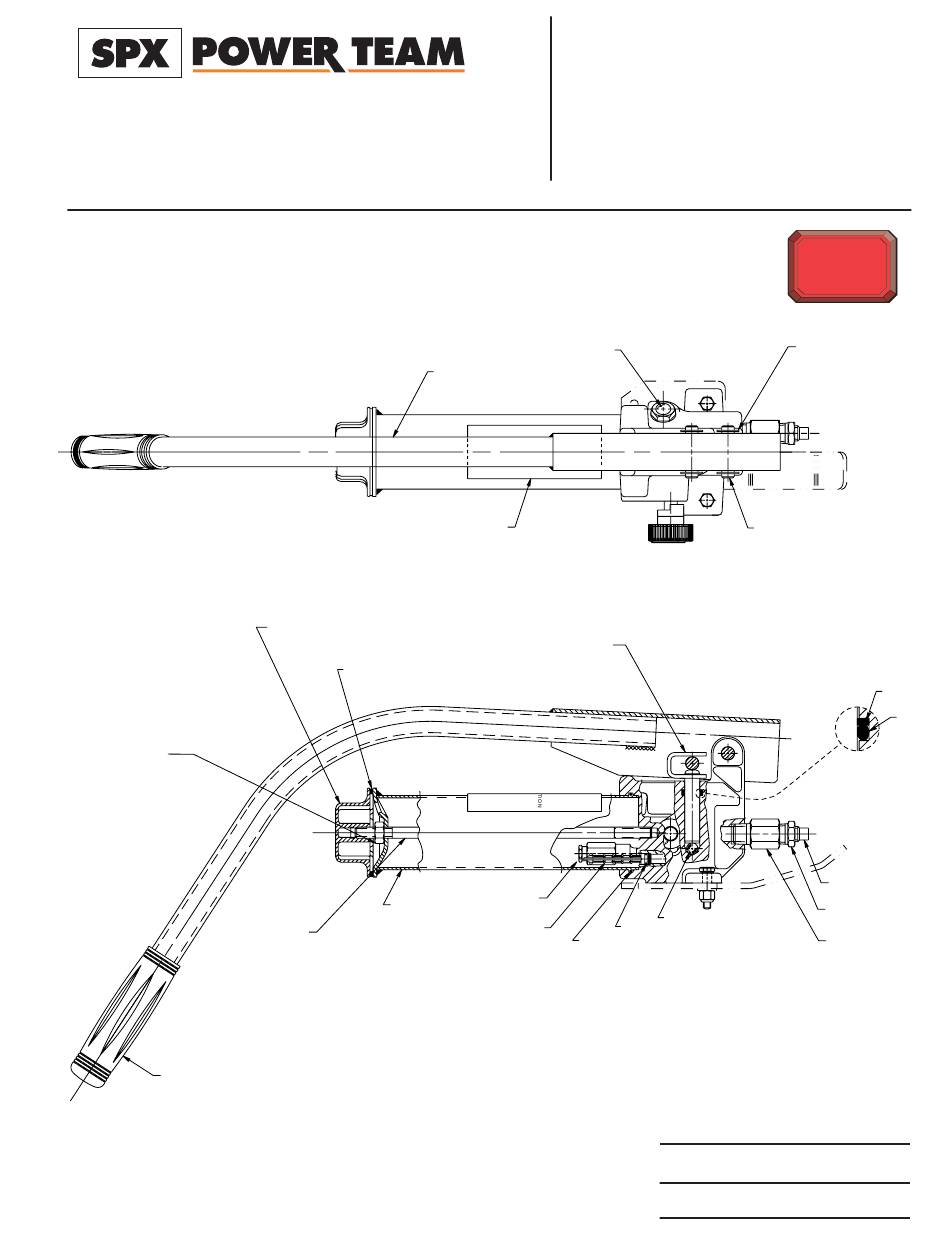

SINGLE-STAGE
HYDRAULIC HAND PUMP
1
21
22
17
18
®
Parts List and
Operating Instructions for:
2
5
6
16
13
15
14
Form No. 105227
1730-EG-123
4320-01-198-4551
4320-01-287-9662
61780
65856
To Parts
List
3
4
9
10
12
11
Sheet No.
1 of 4
Rev. 4
Date: 10 Aug. 2000
7
8
Advertisement
Table of Contents
Related Manuals for SPX POWER TEAM 1730-EG-123
Summary of Contents for SPX POWER TEAM 1730-EG-123
- Page 1 Form No. 105227 ® Parts List and Operating Instructions for: SPX Corporation Tech. Services: (800) 477-8326 1730-EG-123 5885 11th Street Fax: (800) 765-8326 Rockford, IL 61109-3699 USA 4320-01-198-4551 Order Entry: (800) 541-1418 Fax: (800) 288-7031 4320-01-287-9662 Internet Address: 61780 http://www.powerteam.com...
- Page 2 Parts List and Operating Instructions, Form No. 105227, Back sheet 1 of 4 Item Part Req'd Description 61813GR12 Handle 215907 Decal ("DO NOT REMOVE") 211743 Retaining Ring (7/16 shaft; Note: Expand retaining ring to .440 Ø max. during installation.) 211742 *308473 Warning Decal 211468...
-
Page 3: End View
Parts List and Operating Instructions Form No. 105227 END VIEW "A" "A" VIEW A-A Item Part Item Part Req’d Description Req’d Description *14874 Copper Washer *10267 O-ring (1/2 bolt) (7/16 X 5/16 X 1/16) 305975 Valve Screw *15085 Backup Washer (Torque to 350/370 in. - Page 4 Parts List and Operating Instructions, Form No. 105227, Back sheet 2 of 4 UNIVERSAL MOUNTING PLATE/RELEASE VALVE KNOB GUARD (For application to US Army aviation ground support skid mount helicopter ground handling truck cradles: 204-050-200, 214-706-104, and 1730-EG-100 model wheel sets) Item Part Req’d...
-
Page 5: Safety Precautions
Parts List and Operating Instructions Form No. 105227 SAFETY PRECAUTIONS These instructions should be read and carefully followed. Most problems with new equipment are caused by improper operation and installation. WARNING General Operation • All WARNING statements must be carefully observed to help prevent personal injury. •... -
Page 6: Preparation And Setup
Parts List and Operating Instructions, Form No. 105227, Back sheet 3 of 4 PREPARATION AND SET-UP Mounting of Hand Pump Refer to the illustration on sheet 2 of 4 for proper mounting of hand pump to ground handling truck cradles. Adjust the guard as necessary for adequate clearance with the skid tube lug. -
Page 7: Preventive Maintenance
Parts List and Operating Instructions Form No. 105227 PREVENTIVE MAINTENANCE Lubrication Regularly apply lubricant to all pivot and rubbing points. Use a good grade of No. 10 motor oil or grease. Do not use dry lubricants. Periodic Cleaning IMPORTANT: The greatest single cause of failure in hydraulic pumps is dirt. Keep the pump and attached equipment clean to prevent foreign matter from entering the system. -
Page 8: Troubleshooting Guide
Parts List and Operating Instructions, Form No. 105227, Back sheet 4 of 4 TROUBLESHOOTING GUIDE WARNING: It can be dangerous to work on pressurized equipment. Always release pump pressure and disconnect hose(s) from the pump before making repairs. Repair procedures must be performed in a dirt-free environment by qualified personnel familiar with this equipment. PROBLEM CAUSE SOLUTION...
