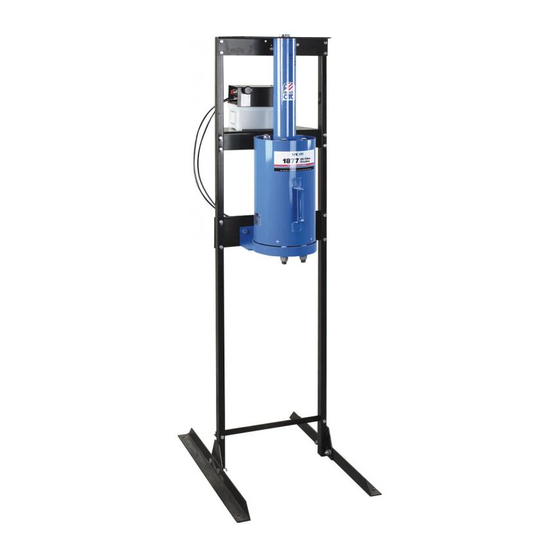

- Page 1 Form No. 102704 Parts List & Operating Instructions for: 1877 Heavy Duty Oil Filter Crusher...

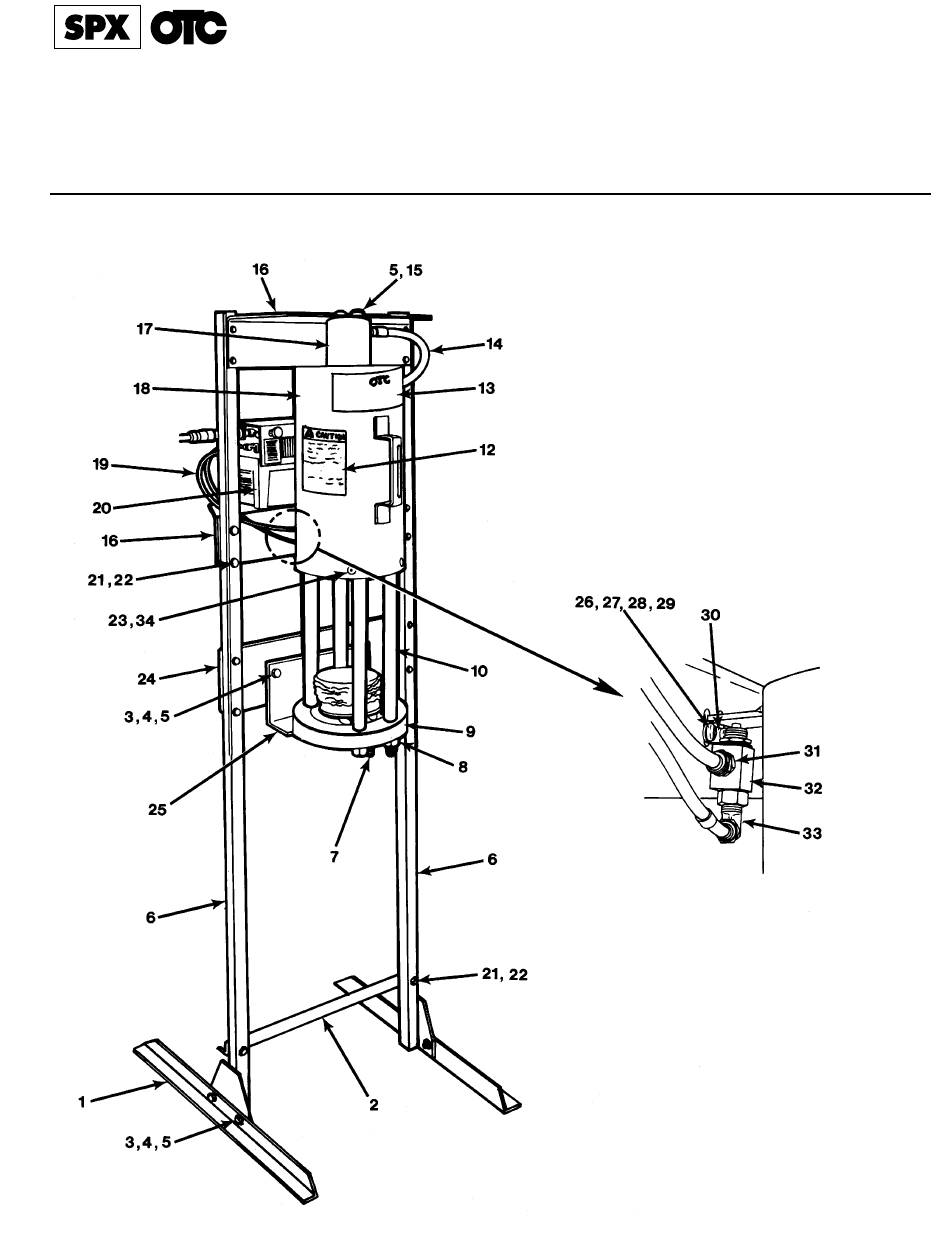

- Page 2 Parts List & Operating Instructions Item Part Description Req'd 311029 Foot Angle 310849 Angle 10080 Hex. Hd. Cap Screw (1/2-13 x 1-1/4" lg.) 10208 Hex Nut (1/2-13) 10249 Lockwasher (for 1/2" bolt) 48635 Upright Assembly 210195 Barbed Hose Fitting 217800 Locknut (3/4-16;...
-
Page 3: Safety Precautions
Parts List & Operating Instructions Form No. 102704 Safety Precautions WARNING: To help prevent personal injury, • Read and follow the operating instructions supplied with the pump and cylinder. • Wear eye protection that meets ANSI Z87.1 and OSHA standards. •... -
Page 4: Maintenance
Parts List & Operating Instructions Operating Instructions 1. Place an approved waste oil container under the drain holes of the Oil Filter Crusher . 2. Connect the pump to shop air regulated at 90-125 PSI maximum. 3. Lift the ram shield and center the oil filter over the center pin in the counterbore. - Page 5 Form No. 101658 Parts List for: 218228 MODEL F AIR HYDRAULIC PUMP Maximum Capacity: 10,000 PSI 2, 3, 4 Item Part Req’d Description 250490 Decal 250968 Rd. Hd. Machine Screw (#10-24 X 1-1/4" Lg.) 11108 External Tooth Washer 10197 Hex. Machine Screw Nut 10470 Adapter Union 250952...
- Page 6 Item Part Req’d Description 250804 90° Elbow Fitting 250463 90° Elbow Fitting 14281 1 Ft. Tubing (See schematic on Sheet 2 of 3 for approx. lengths.) 211060 Screw (#9-15 X 1" Lg.; Torque to 25/30 in. lbs.) 10623 Service Fitting Tee 250385 90°...
-
Page 7: Parts List
Parts List Form No. 101658 BASIC PUMP ASSEMBLY TOP VIEW Apply permatex between gasket coverplate. Item Part Req’d Description 1 420965BK2 Cover Plate 250725 Straight Fitting 11151 Cap Screw (10-24 UNC X 1-1/4" Lg.; Torque to 50/60 in. lbs.) 58685 Release Valve Body 421239 Release Valve... -
Page 8: Basic Pump Assembly
BASIC PUMP ASSEMBLY SECTION A-A Detail "A" 4, 5 9, 10 Detail "B" DETAIL "B" Refer to any operating instructions included with this product for detailed information about operation, testing, disassembly, reassembly, and preventive maintenance. Items found in this parts list have been carefully tested and selected. Therefore: Use only genuine OTC replacement parts! Additional questions can be directed to our Technical Services Department. - Page 9 Parts List Form No. 101658 Item Part Item Part Req’d Description Req’d Description 34757 Release Piston *17429 Backup Ring *208144 O-ring *13938 Compression Spring 28226 Piston (1-1/8" X 7/8 X 1/8; Apply lubricant) 34378 Check Valve Body 203143 Bumper *250638 Screen 210994 Spring Guide...
- Page 10 INSTRUCTIONS FOR RETAINER REPLACEMENT Your pump's retainer is locked into place by one of the two following methods. Determine which method was used on your pump's retainer, then follow the appropriate steps to remove the old and install and stake the new.
