Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 0800-567-8990

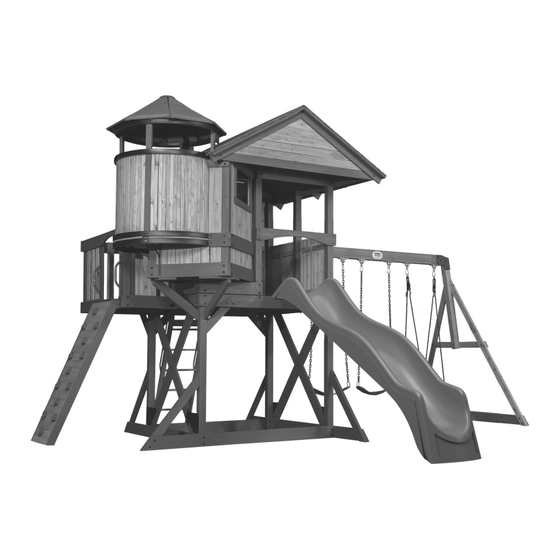

EAGLES NEST ELITE
Swing Set
Model # 1902329B or 2300163
The assembly manual must be retained
since it contains important information
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Please visit www.backyarddiscovery.com
INS-1902329B or 2300163-A-EAGLES NEST ELITE-ENG 09/29/22
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAGLES NEST ELITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery EAGLES NEST ELITE

Summary of Contents for Backyard Discovery EAGLES NEST ELITE

  • Page 1 FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE. Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your set, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com Made in China INS-1902329B or 2300163-A-EAGLES NEST ELITE-ENG 09/29/22...
  • Page 2 Basic Setup Dimensions & Assembly Notes Owner's Manual Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. • While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and improper assembly may result.
  • Page 3 STEP 1 PRE-ASSEMBLY - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 4 STEP 2 PRE-ASSEMBLY - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 9/16" STD Sockets 1/2" & 9/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Optional Claw Hammer...
  • Page 5 STEP 3 PRE-ASSEMBLY - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 6 Wood Components (Not to Scale) Parts Identification SWING BEAM - W4L12838 SB 9" BLOCK - W4L08962 3 3/8"x5 1/4"x89 1/2" (86x134x2274) (x1) 3 3/8"x5 1/4"x9" (86x134x228) (x1) POST - W4L12809 3"x3"x89 5/8" (76x76x2275) (x1) POST - W4L12811 POST - W4L08475 3"x3"x59"...
  • Page 7 Wood Components (Not to Scale) Parts Identification ANGLE BRACE - W4L11378 1 3/8"x3 3/8"x88 3/4" (36x86x2254) (x2) RIGHT UPRIGHT - W4L12841 LEFT UPRIGHT - W4L12840 1 3/8"x3 3/8"x64 7/8" (36x86x1649) (x1) 1 3/8"x3 3/8"x64 7/8" (36x86x1649) (x1) POST - W4L08495 POST - W4L08503 1 3/8"x2 3/8"x54 5/8"...
  • Page 8 Wood Components (Not to Scale) Parts Identification WALL SUPPORT - W4L08545 BASE BOARD - W4L12820 WALL SUPPORT - W4L08546 1"x5 1/4"x30 1/4" (24x134x768) (x1) 1"x5 1/4"x56" (24x134x1422) (x2) 1"x5 1/4"x14 7/8" (24x134x378) (x1) DECK BOARD - W4L12803 WALL SUPPORT - W4L12825 1"x5 1/4"x89 5/8"...
  • Page 9 Wood Components (Not to Scale) Parts Identification ROOF SUPPORT - W4L08519 ROOF SUPPORT - W4L08520 1"x3 3/8"x39 1/2" (24x86x1004) 1"x3 3/8"x74 3/4" (24x86x1900) (x1) (x1) ROOF SUPPORT - W4L08521 RAFTER - W4L08526 1"x3 3/8"x74 3/4" (24x86x1900) (x1) 1"x3 3/8"x47 5/8" (24x86x1209) (x4) RAFTER - W4L08527 WALL SUPPORT - W4L08533...
  • Page 10 Wood Components (Not to Scale) Parts Identification FLOOR BOARD - W4L08038 FLOOR BOARD - W4L08489 WALL PICKET - W4L08046 5/8"x2 1/2"x19 3/8" (16x62x493) (x2) 5/8"x3 3/8"x34 1/4" (16x86x869) (x1) 5/8"x4 3/8"x9 5/8" (16x112x244) (x4) WALL BOARD - W4L08532 WALL BOARD - W4L08530 WALL BOARD - W4L08531 5/8"x3"x10 1/2"...
  • Page 11 Wood Components (Not to Scale) Parts Identification POST - W2A02902 3"x3"x89 5/8" (76x76x2275) (x1) RIGHT WALL PANEL - W2A02903 RIGHT WALL PANEL - W2A02904 WALL PANEL - W2A02906 1 1/4"x10 3/16"x29 7/8" (32x258x759) (x2) 1 1/4"x12 1/2"x29 7/8" (32x318x759) 1 1/4"x11 5/8"x29 7/8" (32x295x759) (x2) (x2) REAR FORT WALL - W2A02905...
  • Page 12 Wood Components (Not to Scale) Parts Identification RP03 ROOF PANEL - W2A02185 1 9/16"x18 3/4"x85 3/16" (40x476x2165) (x1) RP04 ROOF PANEL - W2A02186 1 9/16"x18 3/4"x85 1/4" (40x476x2165) (x1) FLOOR PANEL - W2A02900 RP07 ROOF PANEL - W2A02189 1 1/4"x20 9/16"x65 11/16" (32x523x1644) (x2) 13/16"x24 7/8"x17 11/16"...
  • Page 13 Wood Components (Not to Scale) Parts Identification FLOOR PANEL - W2A02912 FLOOR PANEL - W2A02913 FLOOR PANEL - W2A02248 1 1/4"x14 5/16"x34 3/16" (32x363x869) 1 1/4"x14 5/16"x34 3/16" (32x363x869) 1 1/4"x12 1/16"x22 1/16" (32x302x558) (x1) (x1) (x1) GABLE PANEL - W2A02914 1 1/4"x69 1/2"x10 3/16"...

  • Page 14: Table Of Contents

    Hardware Components Parts Identification H100396 H100363 BOLT WH BLK BOLT WH BLK (x7) (x1) 5/16x1/2 5/16X6 H100468 BOLT WH BLK H100480 BOLT WH BLK (x20) 5/16x1 (x3) 5/16x4 3/4 H100534 BOLT WH BLK (x1) 5/16x4 1/2 H100415 BOLT WH BLK H100378 BOLT WH BLK (x103)
  • Page 15 Hardware Components Parts Identification H100171 BOLT WH BLK H100008 BOLT WH H100482 LAG SCREW WH BLK (x12) 1/4x1 (x3) (x2) 5/16x1 5/16x3 1/2 H100397 BOLT WH BLK (x1) 1/4x1 1/4 H100197 LAG SCREW WH BLK (x25) 5/16x2 1/2 H100031 WASHER LOCK EXT (x3) 12x19 H100406...
  • Page 16 Hardware Components Parts Identification H100203 SCREW PFH BLK (x4) 8x1/2 H100746 SCREW PWH SD (x150) 10x1 1/4 H100380 SCREW PFH BLK (x35) 8x1 1/8 H100736 SCREW PWH SD (x1) 8x1 5/8 H100387 SCREW PFH BLK (x336) 8x1-1/4 H100653 NUT LOCK BLK (x11) H100408 SCREW PWH BLK...
  • Page 17 Hardware Components Parts Identification H100114 TORX WRENCH (x1) T-30 H100147 TORX BIT (x1) T-30 H100764 SCREW SETTER (x1) H101100 MAGNETIC DRIVER (x1)
  • Page 18 Accessories (Not to Scale) Parts Identification A100118 HAND GRIP METAL GREEN 381 c/c (x4) A100164 BYD ID TAG (LARGE) AGES 3-10 (x1) A100134 HAND GRIP GREEN 816 C/C (x2) A100314 "A" REVISION TAG (x1) A100178 AUGER GROUND STAKE (x8) A4M00555 90°...
  • Page 19 Accessories (Not to Scale) Parts Identification A4M00880 TURRET WALL ARCH BAND (x2) A4M00907 TURRET WALL ARCH BAND (x1) A4M00881 QUARTER ROUND TURRET FLOOR SUPPORT (x2) A4M00883 QUARTER ROUND TURRET FLOOR SUPPORT (x1) A4M00896 TURRET WALL ARCH BAND (x1) A4M00897 QUARTER ROUND TURRET FLOOR SUPPORT (x2)
  • Page 20 Accessories (Not to Scale) Parts Identification A100325 A4M00926 SWING BEAM EXTENSION BRACKET-LEFT (x1) SINGLE DUCTILE HANGER SD (x6) A100326 SWING BEAM EXTENSION BRACKET-RIGHT (x1) A4M00927 QUICK LINK SD (x4) A4M00993 EXTENDED SWING BEAM BRACKET (x2) A6P00253 26" WEB SWING SEAT (x1) A4M01012 A4M00827...

  • Page 21: (X1) 5/16X4

    STEP 1 Phase 1 POST - W4L12811 WALL SUPPORT - W4L12822 (x1) 3"x3"x59" (76x76x1500) 1"x5 1/4"x77 3/8" (24x134x1964) (x1) FLOOR SUPPORT - W4L12823 POST - W4L12812 1"x3 3/8"x52 1/8" (24x86x1324) (x1) (x1) 3"x3"x69 3/4" (76x76x1771) A4M00827 TRIANGLE BRACE - BLK (x2) BASE BOARD - W4L12885 1"x5 1/4"x79 1/4"...
  • Page 22 STEP 2 Phase 1 CROSS BRACE - W4L12821 1"x5 1/4"x74 3/4" (24x134x1898) (x2) H100468 BOLT WH BLK H100378 H100195 BOLT WH BLK BOLT WH BLK (x5) (x2) 5/16x1 (x2) 5/16x2-3/4 5/16x1 3/4 H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x5) 8x19 (x9)

  • Page 23: (X9) 5/16X3

    STEP 3 Phase 1 POST - W4L12809 BASE BOARD - W4L12820 3"x3"x89 5/8" (76x76x2275) (x1) 1"x5 1/4"x56" (24x134x1422) (x2) A4M00827 POST - W2A02902 TRIANGLE BRACE - BLK (x2) WALL SUPPORT - W4L12804 3"x3"x89 5/8" (76x76x2275) (x1) 1"x5 1/4"x77 3/8" (24x134x1964) (x1) H100416 H100468...

  • Page 24: Bolt Wh Blk

    STEP 4 Phase 1 CROSS BRACE - W4L12821 1"x5 1/4"x74 3/4" (24x134x1898) (x2) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK H100468 BOLT WH BLK H100378 BOLT WH BLK (x5) 8x19 (x9) (x5) (x4) 5/16 5/16x1 5/16x1 3/4 TIP: 1. FOR EASE OF ASSEMBLY WE RECOMMEND USING SAW HORSES TO ASSEMBLE FORT.
  • Page 25 STEP 5 Phase 1 WALL SUPPORT - W4L12824 BASE BOARD - W4L12827 1"x5 1/4"x66 5/8" (24x134x1692) 1"x5 1/4"x89 5/8" (24x134x2275) (x1) (x1) H100415 BOLT WH BLK H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x8) 5/16x3 3/4 (x8) (x8) 5/16 8x19 TIP: 1.
  • Page 26 STEP 6 Phase 1 WALL SUPPORT - W4L12801 1"x5 1/4"x64 3/4" (24x134x1645) (x1) FLOOR SUPPORT - W4L12800 1"x3 3/8"x64 3/4" (24x86x1645) (x1) A100314 BASE BOARD - W4L12819 "A" REVISION TAG (x1) 1"x5 1/4"x64 3/4" (24x134x1645) (x1) H100415 BOLT WH BLK H100480 BOLT WH BLK H100392...
  • Page 27 STEP 7 Phase 1 H100362 SCREW PFH BLK FLOOR SUPPORT - W4L12807 (x8) (x2) 1 3/8"x3 3/8"x54 3/8" (36x86x1382) (x2) FLOOR SUPPORT (x8) SCREW - 3" FLUSH...

  • Page 28: (X4) 5/16X2

    STEP 8 Phase 1 ANGLE SUPPORT - W4L08458 1 3/8"x3 3/8"x18 3/4" (36x86x475) (x6) H100484 BOLT WH BLK H100205 BOLT WH BLK H100197 LAG SCREW WH BLK (x6) 5/16x3 1/4 (x6) 5/16x2-1/4 (x6) 5/16x2 1/2 H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x12) 5/16 (x18)
  • Page 29 STEP 9 Phase 1 H100205 BOLT WH BLK H100197 LAG SCREW WH BLK (x8) 5/16x2-1/4 (x4) 5/16x2 1/2 ANGLE BRACE - W4L08494 1 3/8"x3 3/8"x38 1/2" (36x86x978) (x4) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x12) (x8) 8x19 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
  • Page 30 STEP 1 0 Phase 1 H100415 BOLT WH BLK (x2) 5/16x3 3/4 POST - W4L08696 3"x3"x33 7/8" (76x76x860) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x2) 8x19 (x2) 5/16 3 3/8 in 2 1/2 in TIP: [86 mm] [62 mm] WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
  • Page 31 STEP 1 1 Phase 1 H100415 BOLT WH BLK H100391 SCREW PFH BLK (x2) 5/16x3 3/4 (x2) DECK BOARD - W4L12803 1"x5 1/4"x89 5/8" (24x134x2276) (x1) H100379 H100198 T-NUT BLK WASHER LOCK EXT BLK (x2) (x2) 5/16 8x19 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
  • Page 32 STEP 1 2 Phase 1 H100415 BOLT WH BLK POST - W4L08696 (x4) 5/16x3 3/4 3"x3"x33 7/8" (76x76x860) (x1) H100379 H100198 T-NUT BLK WASHER LOCK EXT BLK POST - W4L12828 (x4) (x4) 5/16 8x19 3"x3"x33 7/8" (76x76x860) (x1) TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.

  • Page 33: Nut Barrel Wh Blk

    STEP 13 Phase 1 2 1/8 in [55 mm] H100396 BOLT WH BLK H100192 NUT BARREL WH BLK (x2) 5/16x1/2 (x2) 5/16x7/8 2 in DECK BOARD - W4L08698 [50 mm] 1"x5 1/4"x22" (24x134x560) (x1) H100199 WASHER LOCK EXT BLK A4M00615 (x2) L BRACKET BLK 12x19...
  • Page 34 STEP 14 Phase 1 H100415 BOLT WH BLK (x2) 5/16x3 3/4 POST - W4L08746 3"x3"x33 7/8" (76x76x860) (x1) H100198 H100379 T-NUT BLK WASHER LOCK EXT BLK (x2) (x2) 5/16 8x19 3 3/8 in TIP: [86 mm] WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
  • Page 35 STEP 15 Phase 1 H100415 BOLT WH BLK (x4) 5/16x3 3/4 DECK RAIL - W4L12816 1"x5 1/4"x53 1/8" (24x134x1349) (x1) H100379 H100198 T-NUT BLK WASHER LOCK EXT BLK (x4) (x4) 5/16 8x19 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x1) DECK RAIL (x4)
  • Page 36 STEP 16 Phase 1 FLOOR SUPPORT - W4L08700 H100382 SCREW PFH BLK 1"x3 3/8"x46 1/8" (24x86x1172) (x1) (x4) 8x1 3/4 (x1) FLOOR SUPPORT (x4) SCREW - 1 3/4" LINE UP HOLES.
  • Page 37 STEP 17 Phase 1 FLOOR SUPPORT - W4L12888 1"x3 3/8"x58 3/4" (24x86x1493) (x1) H100382 SCREW PFH BLK (x4) 8x1 3/4 LINE UP HOLES. (x1) FLOOR SUPPORT (x4) SCREW - 1 3/4"...
  • Page 38 STEP 18 Phase 1 H100391 SCREW PFH BLK FLOOR SUPPORT - W4L08562 (x14) 1"x2 3/4"x3" (24x70x76) (x7) FLUSH 1 7/8 in [48 mm] ALL "H20" PARTS (x1) FLOOR SUPPORT (x14) (x1) SCREW - 2" FLOOR SUPPORT (x1) FLOOR SUPPORT (x1) FLOOR SUPPORT (x1) FLOOR SUPPORT...
  • Page 39 STEP 19 Phase 1 H100391 SCREW PFH BLK FLOOR SUPPORT - W4L08466 (x8) (x2) 1"x1 3/8"x48 3/8" (24x34x1230) 1 7/8 in [48 mm] (x2) FROM TOP EDGE FLOOR SUPPORT BOTH SIDES (x8) SCREW - 2"...
  • Page 40 STEP 20 Phase 1 FLOOR BOARD - W4L12808 5/8"x5"x64 3/4" (16x128x1644) (x1) FLOOR BOARD - W4L12806 5/8"x4"x64 3/4" (16x102x1644) (x1) H100200 SCREW PFH BLK FLOOR PANEL - W2A02900 (x72) 8x1 1/2 1 1/4"x20 9/16"x65 11/16" (32x523x1644) (x2) FLOOR BOARD - W4L12814 5/8"x4"x64 3/4"...
  • Page 41 STEP 21 Phase 1 FLOOR BOARD - W4L11558 5/8"x3"x18 7/8" (16x76x480) (x1) H100200 SCREW PFH BLK (x38) 8x1 1/2 FLOOR PANEL - W2A02228 (x1) 1 1/4"x20 1/4"x22" (32x515x555) FLOOR PANEL - W2A02227 1 1/4"x22 1/16"x20 11/16" (32x555x525) (x2) (x1) FLOOR BOARD (x38) SCREW - 1 1/2"...
  • Page 42 STEP 22 Phase 1 FLOOR PANEL - W2A02248 FLOOR PANEL - W2A02230 FLOOR PANEL - W2A02229 1 1/4"x12 1/16"x22 1/16" (32x302x558) (x1) 1 1/4"x20 5/16"x22 15/16" (32x516x582) 1 1/4"x19 15/16"x22 15/16" (32x506x582) (x1) (x1) H100200 SCREW PFH BLK (x32) 8x1 1/2 NOTE: DO NOT PUT WEIGHT OR WALK ON BALCONY SURFACES UNTIL AFTER...
  • Page 43 STEP 23 Phase 1 A100178 METAL GROUND STAKE BROWN (x4) H100404 NUT BARREL WH BLK H100171 BOLT WH BLK (x4) 1/4x5/8 (x4) 1/4x1 H100474 WASHER FLAT BLK H100400 WASHER LOCK EXT BLK (x4) (x4) 8x15 9x18 NOTE: 1. SCREW THE AUGER INTO THE GROUND NEXT TO THE GROUND BOARD.
  • Page 44 STEP 1 Phase 2 LEFT UPRIGHT - W4L12840 1 3/8"x3 3/8"x64 7/8" (36x86x1649) (x1) H100391 SCREW PFH BLK (x10) LADDER RUNG - W4L06609 1"x3 3/8"x18 1/8" (24x86x460) (x5) (x10) (x1) SCREW - 2" LEFT UPRIGHT (x5) LADDER RUNG...
  • Page 45 STEP 2 Phase 2 H100391 SCREW PFH BLK RIGHT UPRIGHT - W4L12841 (x10) 1 3/8"x3 3/8"x64 7/8" (36x86x1649) (x1) (x1) RIGHT UPRIGHT (x10) SCREW - 2"...
  • Page 46 STEP 3 Phase 2 H100503 BOLT WH BLK (x4) 5/16x3-1/2 A100134 HAND GRIP GREEN 816 C/C (x2) H100379 T-NUT BLK (x4) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) HAND GRIP GREEN 816 C/C (x4) BOLT - 3 1/2" (x4) T-NUT - 5/16"...
  • Page 47 STEP 4 Phase 2 H110 ATTACHMENT BOARD - W4L12839 1"x3 3/8"x20 1/8" (24x86x512) (x1) H100391 SCREW PFH BLK (x8) REAR SUPPORT - W4L11417 5/8"x3 3/8"x20 1/8" (16x86x512) (x1) (x8) SCREW - 2" (x1) REAR SUPPORT FLUSH H110 (x1) ATTACHMENT BOARD...
  • Page 48 STEP 5 Phase 2 H100195 BOLT WH BLK (x2) 5/16x2-3/4 (x1) LADDER SUB ASSEMBLY (FROM PREVIOUS STEP). H100198 H100379 T-NUT BLK WASHER LOCK EXT BLK (x2) (x2) 5/16 8x19 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) T-NUT - 5/16" (x2) WASHER - 8x19 (x2)
  • Page 49 STEP 1 Phase 3 27 1/4 in [692 mm] H100415 BOLT WH BLK (x6) 5/16x3 3/4 WALL SUPPORT - W4L12815 FRONT 1"x5 1/4"x77 3/8" (24x134x1964) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK POST - W4L12810 (x6) 8x19 (x10) 5/16 3"x3"x29 3/8"...
  • Page 50 STEP 2 Phase 3 H100415 BOLT WH BLK (x3) 5/16x3 3/4 POST - W4L12826 (x1) 3"x3"x53 7/8" (76x76x1370) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x3) 8x19 (x3) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x3) T-NUT - 5/16"...
  • Page 51 STEP 3 Phase 3 H100415 BOLT WH BLK H100458 LAG SCREW WH BLK (x1) 5/16x3 3/4 (x1) 5/16x2 POST - W4L08522 3 3/8"x1 3/8"x53 7/8" (86x36x1370) (x2) H100379 T-NUT BLK (x3) 5/16 POST - W4L08475 H100198 WASHER LOCK EXT BLK H100205 BOLT WH BLK (x1)
  • Page 52 STEP 4 Phase 3 1 3/4 in [43 mm] H100415 BOLT WH BLK H100458 LAG SCREW WH BLK (x2) 5/16x3 3/4 WALL SUPPORT - W4L08546 (x2) 5/16x2 1"x5 1/4"x14 7/8" (24x134x378) (x1) H100379 T-NUT BLK 1 3/4 in (x6) 5/16 [43 mm] H100198 WASHER LOCK EXT BLK...
  • Page 53 STEP 5 Phase 3 H100415 BOLT WH BLK POST - W4L08476 (x2) 5/16x3 3/4 3"x3"x53 7/8" (76x76x1370) (x1) POST - W4L08553 H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK 3"x3"x53 7/8" (76x76x1370) (x1) (x2) 8x19 (x2) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY.
  • Page 54 STEP 6 Phase 3 H100415 BOLT WH BLK WALL SUPPORT - W4L08491 (x8) 5/16x3 3/4 (x1) 1"x5 1/4"x28 1/4" (24x134x716) 2 1/2 in [62 mm] H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x8) 8x19 (x8) 5/16 WALL SUPPORT - W4L08545 1"x5 1/4"x30 1/4"...
  • Page 55 STEP 7 Phase 3 2 1/2 in [62 mm] H100415 BOLT WH BLK H100197 LAG SCREW WH BLK (x6) 5/16x3 3/4 WALL SUPPORT - W4L08490 (x2) 5/16x2 1/2 1"x5 1/4"x29 1/8" (24x134x741) (x1) 1 3/4 in [43 mm] H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x8)
  • Page 56 STEP 8 Phase 3 H100415 BOLT WH BLK H100197 DECK BOARD - W4L12805 LAG SCREW WH BLK (x6) 5/16x3 3/4 (x2) 1"x5 1/4"x25 3/8" (24x134x645) 5/16x2 1/2 (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK ENTRY BOARD - W4L12817 (x8) 8x19 (x6)
  • Page 57 STEP 9 Phase 3 H100415 BOLT WH BLK (x5) 5/16x3 3/4 DECK BOARD - W4L12818 (x1) 1"x5 1/4"x89 5/8" (24x134x2276) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x5) 8x19 (x5) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x5) T-NUT - 5/16"...
  • Page 58 STEP 1 0 Phase 3 H100415 BOLT WH BLK H100458 LAG SCREW WH BLK (x1) 5/16x3 3/4 (x2) 5/16x2 ROOF SUPPORT - W4L08518 1"x3 3/8"x76 3/4" (24x86x1949) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x3) 8x19 (x1) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS (x1)
  • Page 59 STEP 1 1 Phase 3 H100415 BOLT WH BLK H100458 LAG SCREW WH BLK (x1) 5/16x3 3/4 (x1) 5/16x2 H100379 T-NUT BLK ROOF SUPPORT - W4L08520 (x3) 5/16 1"x3 3/8"x74 3/4" (24x86x1900) (x1) H100198 WASHER LOCK EXT BLK H100205 BOLT WH BLK (x4) 8x19 (x2)
  • Page 60 STEP 1 2 Phase 3 H100415 BOLT WH BLK (x2) 5/16x3 3/4 ROOF SUPPORT - W4L08513 1"x3 3/8"x76 3/4" (24x86x1949) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x2) 8x19 (x2) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) (x2) (x2)
  • Page 61 STEP 13 Phase 3 H100387 SCREW PFH BLK (x52) 8x1-1/4 RIGHT WALL PANEL - W2A02903 RIGHT WALL PANEL - W2A02904 1 1/4"x10 3/16"x29 7/8" (32x258x759) (x2) 1 1/4"x12 1/2"x29 7/8" (32x318x759) (x2) (x1) RIGHT WALL PANEL (x1) RIGHT WALL PANEL (x1) RIGHT WALL PANEL (x1)
  • Page 62 STEP 14 Phase 3 H100387 SCREW PFH BLK REAR FORT WALL - W2A02905 (x24) 8x1-1/4 (x2) 1 1/4"x8 1/8"x53 15/16" (32x212x1370) **CENTER WALL PANELS IN OPENINGS. (x2) REAR FORT WALL (x24) SCREW - 1 1/4"...
  • Page 63 STEP 15 Phase 3 H100387 SCREW PFH BLK WALL PANEL - W2A02906 (x24) 8x1-1/4 (x2) 1 1/4"x11 5/8"x29 7/8" (32x295x759) **EVENLY SPACE AND CENTER WALL PANELS IN OPENINGS. (x2) WALL PANEL (x24) SCREW - 1 1/4"...
  • Page 64 STEP 16 Phase 3 H100468 BOLT WH BLK H100378 BOLT WH BLK (x4) 5/16x1 (x4) 5/16x1 3/4 WALL PICKET - W4L12829 A100118 HAND GRIP METAL GREEN 381 c/c 1"x3 3/8"x29 3/4" (24x86x756) (x2) (x2) H100198 WASHER LOCK EXT BLK (x4) 8x19 H100379 T-NUT BLK...
  • Page 65 STEP 17 Phase 3 H100378 BOLT WH BLK (x2) 5/16x1 3/4 WALL PICKET - W4L12829 1"x3 3/8"x29 3/4" (24x86x756) (x1) H100198 WASHER LOCK EXT BLK (x2) 8x19 H100379 T-NUT BLK (x2) 5/16 NOTE: (x2) BOLT - 1 3/4" 1. DO NOT PUT ANY WEIGHT ON SHORT THE BALCONY UNTIL AFTER COMPLETION OF PHASE 7.
  • Page 66 STEP 18 Phase 3 WALL PICKET - W4L08544 H100387 SCREW PFH BLK 5/8"x3 3/8"x29 7/8" (16x86x759) (x3) (x12) 8x1-1/4 NOTE: 2 3/8 in 1. DO NOT PUT ANY WEIGHT ON SHORT THE BALCONY UNTIL [60 mm] AFTER COMPLETION OF PHASE 7. (3 SPCS) START HERE 2.
  • Page 67 STEP 19 Phase 3 WALL PICKET - W4L08544 H100387 SCREW PFH BLK 5/8"x3 3/8"x29 7/8" (16x86x759) (x3) (x12) 8x1-1/4 NOTE: 2 1/2 in 1. DO NOT PUT ANY WEIGHT ON SHORT THE BALCONY UNTIL [62 mm] AFTER COMPLETION OF PHASE 7. (3 SPCS) 2.
  • Page 68 STEP 20 Phase 3 WALL PICKET - W4L08544 H100387 SCREW PFH BLK 5/8"x3 3/8"x29 7/8" (16x86x759) (x2) (x8) 8x1-1/4 2 3/4 in [70 mm] (2 SPCS) (x2) WALL PICKET (x8) SCREW - 1 1/4"...
  • Page 69 STEP 21 Phase 3 WALL PICKET - W4L08544 H100387 SCREW PFH BLK 5/8"x3 3/8"x29 7/8" (16x86x759) (x2) (x8) 8x1-1/4 (x8) SCREW - 1 1/4" 2 3/8 in [60 mm] (2 SPCS) (x2) WALL PICKET...
  • Page 70 STEP 22 Phase 3 WALL PICKET - W4L08544 H100387 SCREW PFH BLK 5/8"x3 3/8"x29 7/8" (16x86x759) (x3) (x12) 8x1-1/4 2 3/8 in [60 mm] (3 SPCS) (x3) WALL PICKET (x12) SCREW - 1 1/4"...
  • Page 71 STEP 1 Phase 4 2 1/8 in [53 mm] FLOOR SUPPORT - W4L08479 BASE BOARD - W4L08563 1"x3 3/8"x32" (24x86x813) (x1) 1"x3 3/8"x35" (24x86x889) (x1) A4M00615 L BRACKET BLK (x2) H100192 NUT BARREL WH BLK H100396 BOLT WH BLK H100197 LAG SCREW WH BLK (x2) 5/16x7/8...
  • Page 72 STEP 2 Phase 4 H100197 LAG SCREW WH BLK WALL SUPPORT - W4L12842 (x4) 5/16x2 1/2 1"x5 1/4"x36" (24x134x915) (x1) H100391 SCREW PFH BLK (x4) H100198 WASHER LOCK EXT BLK WALL SUPPORT - W4L08481 (x4) 8x19 1"x5 1/4"x36" (24x134x915) (x1) (x1) WALL SUPPORT (x1)
  • Page 73 STEP 3 Phase 4 TOP EDGE POST - W4L08484 WALL SUPPORT - W4L12843 POST - W4L08487 3"x3"x47 1/4" (76x76x1201) (x1) 1"x5 1/4"x32" (24x134x813) (x1) 3"x3"x13 5/8" (76x76x345) (x1) H100415 BOLT WH BLK H100458 LAG SCREW WH BLK (x8) 5/16x3 3/4 (x1) 5/16x2 H100379...
  • Page 74 STEP 4 Phase 4 FLOOR SUPPORT - W4L08483 H100382 SCREW PFH BLK (x1) 1"x3 3/8"x26" (24x86x661) (x3) 8x1 3/4 FLOOR SUPPORT - W4L08562 1"x2 3/4"x3" (24x70x76) (x2) FLOOR SUPPORT - W4L08482 H100391 SCREW PFH BLK 1"x3 3/8"x32" (24x86x813) (x1) (x8) (x4) SCREW - 2"...
  • Page 75 STEP 5 Phase 4 ANGLE SUPPORT BRACE - W4L12935 H100484 BOLT WH BLK H100482 LAG SCREW WH BLK 1 3/8"x3 3/8"x25 3/8" (36x86x643) (x2) (x2) 5/16x3 1/4 (x2) 5/16x3 1/2 H100198 WASHER LOCK EXT BLK (x4) 8x19 H100379 T-NUT BLK H100487 LAG SCREW WH BLK CROSS BRACE - W4L12915...
  • Page 76 STEP 6 Phase 4 H100200 SCREW PFH BLK FLOOR PANEL - W2A02912 FLOOR PANEL - W2A02913 (x31) 8x1 1/2 1 1/4"x14 5/16"x34 3/16" (32x363x869) 1 1/4"x14 5/16"x34 3/16" (32x363x869) (x1) (x1) FLOOR BOARD - W4L08489 (x1) 5/8"x3 3/8"x34 1/4" (16x86x869) (x31) SCREW - 1 1/2"...
  • Page 77 STEP 7 Phase 4 H100197 LAG SCREW WH BLK WALL SUPPORT - W4L08492 (x4) 5/16x2 1/2 WALL SUPPORT - W4L08486 1"x5 1/4"x10 5/8" (24x134x269) (x1) H100379 T-NUT BLK 1"x5 1/4"x7 1/2" (24x134x192) (x1) (x8) 5/16 H100415 BOLT WH BLK (x4) 5/16x3 3/4 WALL SUPPORT - W4L08485 1"x5 1/4"x36"...
  • Page 78 STEP 8 Phase 4 H100415 BOLT WH BLK FLOOR SUPPORT - W4L12844 H100458 LAG SCREW WH BLK (x1) 5/16x3 3/4 1"x2 3/8"x23 3/8" (24x60x594) (x1) (x1) 5/16x2 FLOOR SUPPORT - W4L12845 H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK 1"x2 3/8"x24 3/8" (24x60x619) (x1) (x1) 5/16...
  • Page 79 STEP 9 Phase 4 NOTE PILOT NOTE PILOT HOLES. HOLES. H100387 SCREW PFH BLK (x46) 8x1-1/4 WLL PANEL - W2A02909 WALL PANEL - W2A02908 1/16"x1/16"x1/16" (32x547x243) 1/16"x1/16"x1/16" (32x243x521) (x1) (x1) NOTE PILOT HOLES. (x24) (x22) SCREW - 1 1/4" SCREW - 1 1/4" (x1) (x1) WLL PANEL...
  • Page 80 STEP 1 0 Phase 4 H100391 SCREW PFH BLK WALL SUPPORT - W4L08533 (x4) 1"x3 3/8"x35" (24x86x889) (x1) (x2) SCREW - 2" (x1) (x2) SCREW - 2" WALL SUPPORT...
  • Page 81 STEP 1 1 Phase 4 LEFT WINDOW WALL PANEL - W2A02910 H100387 SCREW PFH BLK (x1) 1 1/4"x16"x43 1/4" (32x407x1099) (x28) 8x1-1/4 WALL BOARD - W4L08536 RIGHT WINDOW WALL PANEL - W2A02911 5/8"x3 3/8"x20 1/2" (16x86x521) (x1) 1 1/4"x15 7/8"x43 1/4" (32x404x1099) (x1) (x10) NOTE:...
  • Page 82 STEP 1 2 Phase 4 WINDOW BOTTOM - W4L08538 WINDOW SIDE - W4L08539 H100380 SCREW PFH BLK 5/8"x2 3/8"x25 1/4" (16x60x640) 5/8"x2 3/8"x12 5/8" (16x60x321) (x1) (x2) (x20) 8x1 1/8 (x20) SCREW - 1 1/8" (x2) WINDOW SIDE (x1) WINDOW BOTTOM INSIDE VIEW OUTSIDE VIEW...
  • Page 83 STEP 13 Phase 4 H100534 BOLT WH BLK H100415 BOLT WH BLK (x1) 5/16x4 1/2 (x1) 5/16x3 3/4 ROOF SUPPORT - W4L08519 1"x3 3/8"x39 1/2" (24x86x1004) (x1) H100198 WASHER LOCK EXT BLK H100379 T-NUT BLK (x2) (x1) 5/16 8x19 H100199 WASHER LOCK EXT BLK (x1) 12x19...
  • Page 84 STEP 14 Phase 4 H100391 SCREW PFH BLK ROOF SUPPORT - W4L08521 (x4) 1"x3 3/8"x74 3/4" (24x86x1900) (x1) (x4) SCREW - 2" (x1) ROOF SUPPORT...
  • Page 85 STEP 15 Phase 4 H100200 SCREW PFH BLK WALL BOARD - W4L12846 (x4) 8x1 1/2 1"x1 3/8"x5 7/8" (24x34x150) (x2) (x2) WALL BOARD (x4) SCREW - 1 1/2" INSIDE VIEW OUTSIDE VIEW...
  • Page 86 STEP 1 Phase 5 H100200 SCREW PFH BLK POST - W4L08495 (x4) 8x1 1/2 1 3/8"x2 3/8"x54 5/8" (36x60x1389) (x2) WALL SUPPORT - W4L08496 H100392 SCREW PWH BLK A4M00555 1"x2 3/8"x27 1/8" (24x60x688) (x1) 90° L-BRACKET - BLK (x2) (x2) 8x3/4 (x2) POST...
  • Page 87 STEP 2 Phase 5 POST - W4L08503 1 3/8"x2 3/8"x47 1/4" (36x60x1200) (x1) A4M00880 TURRET WALL ARCH BAND (x1) POST - W4L08504 1 3/8"x2 3/8"x47 1/4" (36x60x1200) (x1) A4M00881 QUARTER ROUND TURRET FLOOR SUPPORT (x1) H100398 T-NUT BLK H100567 BOLT WH BLK H100800 BOLT WH BLK (x5)
  • Page 88 STEP 3 Phase 5 H100200 SCREW PFH BLK WALL SUPPORT - W4L08496 (x4) 8x1 1/2 (x1) 1"x2 3/8"x27 1/8" (24x60x688) (x4) SCREW - 1 1/2" (x1) WALL SUPPORT...
  • Page 89 STEP 4 Phase 5 H100567 BOLT WH BLK (x7) 1/4x2 1/4 A4M00896 TURRET WALL ARCH BAND (x1) H100398 T-NUT BLK A4M00897 (x7) QUARTER ROUND TURRET FLOOR SUPPORT (x2) TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x7) BOLT - 2 1/4" (x1) TURRET WALL ARCH BAND (x7)
  • Page 90 STEP 5 Phase 5 H100567 BOLT WH BLK (x5) A4M00907 1/4x2 1/4 TURRET WALL ARCH BAND (x1) H100398 T-NUT BLK (x5) A4M00883 QUARTER ROUND TURRET FLOOR SUPPORT (x1) TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x1) TURRET WALL ARCH BAND (x1) QUARTER ROUND TURRET FLOOR SUPPORT (x5)
  • Page 91 STEP 6 Phase 5 H100171 BOLT WH BLK (x2) 1/4x1 H100408 SCREW PWH BLK (x2) 8x1/2 H100398 T-NUT BLK (x2) (x1) TURRET SUB ASSEMBLY (FROM PHASE 5 - STEP 5) TIP: (x1) BOLT - 1" WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x1) T-NUT - 1/4"...
  • Page 92 STEP 7 Phase 5 H100460 LAG SCREW WH BLK (x4) 1/4x1 H100630 WASHER FLAT BLK H100653 NUT LOCK BLK (x2) A4M01012 8x19 (x2) METAL ANGLE BRACE (x2) (x2) METAL ANGLE BRACE (x4) LAG SCREW - 1" (x2) NUT - 1/4" (x2) WASHER - 8x19...
  • Page 93 STEP 8 Phase 5 WALL PICKET - W4L08046 WALL PICKET - W4L08047 H100387 SCREW PFH BLK 5/8"x4 3/8"x9 5/8" (16x112x244) 5/8"x3"x9 5/8" (16x75x244) (x4) (x2) (x24) 8x1-1/4 (x1) WALL PICKET (x4) WALL PICKET (x24) (x1) SCREW - 1 1/4" WALL PICKET...
  • Page 94 STEP 9 Phase 5 FLOOR BOARD - W4L12917 5/8"x4 3/8"x33 1/2" (16x112x852) (x2) FLOOR BOARD - W4L08038 H100200 SCREW PFH BLK 5/8"x2 1/2"x19 3/8" (16x62x493) (x2) (x20) 8x1 1/2 FLOOR BOARD - W4L12918 5/8"x4 3/8"x31 7/8" (16x112x811) (x2) FLOOR BOARD - W4L12916 5/8"x4 3/8"x34"...
  • Page 95 STEP 1 0 Phase 5 A4M00880 H100567 BOLT WH BLK H100398 T-NUT BLK TURRET WALL ARCH BAND (x1) (x5) (x5) 1/4x2 1/4 H100171 BOLT WH BLK A4M00881 QUARTER ROUND TURRET FLOOR SUPPORT (x2) 1/4x1 (x1) TIP: (x3) WE RECOMMEND INSTALLING T-NUTS BOLT - 2 1/4"...
  • Page 96 STEP 1 1 Phase 5 WALL PICKET - W4L08506 5/8"x1 3/8"x32 7/8" (16x34x835) (x60) H100746 SCREW PWH SD (x120) 10x1 1/4 (x60) WALL PICKET (x120) SCREW - 1 1/4"...
  • Page 97 STEP 1 2 Phase 5 H100387 SCREW PFH BLK WALL SUPPORT - W4L08560 H100415 BOLT WH BLK H100379 T-NUT BLK (x4) 8x1-1/4 (x1) 1"x5 1/4"x8 5/8" (24x134x218) 5/16x3 3/4 (x1) (x1) 5/16 WALL PICKET - W4L08561 H100171 H100398 T-NUT BLK BOLT WH BLK H100198 WASHER LOCK EXT BLK...
  • Page 98 STEP 13 Phase 5 H100405 WASHER LOCK EXT BLK H100397 BOLT WH BLK (x1) 6x15 (x1) 1/4x1 1/4 H100400 WASHER LOCK EXT BLK H100198 WASHER LOCK EXT BLK WALL SUPPORT - W4L13101 (x1) 8x15 (x1) 8x19 1 3/8"x2 3/8"x11 3/4" (36x60x300) (x1) H100404 NUT BARREL WH BLK...
  • Page 99 STEP 14 Phase 5 H100387 SCREW PFH BLK (x14) 8x1-1/4 WALL PICKET - W4L08512 WALL PANEL - W2A02907 5/8"x1 3/8"x39 7/8" (16x34x1013) (x1) 1 1/4"x9 13/16"x39 7/8" (32x250x1013) (x1) (x1) (x1) WALL PICKET WALL PANEL (x14) SCREW - 1 1/4"...
  • Page 100 STEP 15 Phase 5 H100488 BOLT WH BLK (x4) 1/4x2 TURRET FILLER BOARD - W4L11445 5/8"x3 3/8"x5 3/4" (16x86x146) (x2) H100405 WASHER LOCK EXT BLK H100398 T-NUT BLK (x4) 6x15 (x4) TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x4) T-NUT - 1/4"...
  • Page 101 STEP 16 Phase 5 H100489 BOLT PTH BLK H100630 WASHER FLAT BLK A4M00842 (x8) 1/4x3/4 (x8) 8x19 METAL ROOF FULL RIB (x8) A4M00844 H100392 H100653 NUT LOCK BLK SCREW PWH BLK ROUND ROOF RIB CONNECTOR PLATE (x1) (x8) (x16) 8x3/4 (x1) NOTE: (x8)
  • Page 102 STEP 17 Phase 5 H100392 SCREW PWH BLK (x48) 8x3/4 PILOT HOLES RP07 ROOF PANEL - W2A02189 13/16"x24 7/8"x17 11/16" (21x632x450) (x8) SCREW INTO PILOT HOLES LOCATED IN ROOF PANELS. RP07 (x8) ROOF PANEL (x48) SCREW - 3/4"...
  • Page 103 STEP 18 Phase 5 H100736 SCREW PWH SD (x1) 8x1 5/8 A6P00239 ROUND ROOF PLASTIC CAP (x1) NOTE: DO NOT OVER-TIGHTEN SCREW. (x1) ROUND ROOF PLASTIC CAP 2 PEOPLE REQUIRED (x1) SCREW - 1 5/8"...
  • Page 104 STEP 19 Phase 5 H100387 SCREW PFH BLK WALL PICKET - W4L08544 (x12) 8x1-1/4 5/8"x3 3/8"x29 7/8" (16x86x759) (x3) NOTE: 1. DO NOT PUT ANY WEIGHT ON SHORT THE BALCONY UNTIL AFTER COMPLETION OF PHASE 7. 2. USE A LADDER TO ASSEMBLE ANY PICKETS LOCATED ON THE SHORT BALCONY RAILS.
  • Page 105 STEP 1 Phase 6 H100378 BOLT WH BLK (x2) 5/16x1 3/4 RAFTER - W4L08526 1"x3 3/8"x47 5/8" (24x86x1209) (x2) H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x2) 5/16 (x2) 8x19 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) T-NUT - 5/16"...
  • Page 106 STEP 2 Phase 6 WALL BOARD - W4L08532 WALL BOARD - W4L08530 WALL BOARD - W4L08531 5/8"x3"x10 1/2" (16x77x268) (x1) (x1) 5/8"x3 3/8"x34 1/8" (16x86x867) (x1) 5/8"x3 3/8"x22 3/8" (16x86x567) H100387 SCREW PFH BLK (x24) 8x1-1/4 GABLE PANEL - W2A02914 1 1/4"x69 1/2"x10 3/16"...
  • Page 107 STEP 3 Phase 6 H100378 BOLT WH BLK (x2) 5/16x1 3/4 RAFTER - W4L08526 1"x3 3/8"x47 5/8" (24x86x1209) (x2) H100379 T-NUT BLK H100198 WASHER LOCK EXT BLK (x2) 5/16 (x2) 8x19 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) T-NUT - 5/16"...
  • Page 108 STEP 4 Phase 6 WALL BOARD - W4L08532 WALL BOARD - W4L08530 WALL BOARD - W4L08531 5/8"x3"x10 1/2" (16x77x268) (x1) (x1) 5/8"x3 3/8"x34 1/8" (16x86x867) (x1) 5/8"x3 3/8"x22 3/8" (16x86x567) H100387 SCREW PFH BLK (x24) 8x1-1/4 GABLE PANEL - W2A02914 1 1/4"x69 1/2"x10 3/16"...
  • Page 109 STEP 5 Phase 6 H100392 SCREW PWH BLK RAFTER - W4L08527 (x4) 8x3/4 1"x3 3/8"x47 5/8" (24x86x1209) (x2) RAFTER CLEAT - W4L11446 H100387 SCREW PFH BLK A4M00555 5/8"x2 3/8"x3 1/8" (16x60x80) (x1) 90° L-BRACKET - BLK (x2) (x4) 8x1-1/4 (x2) SCREW - 3/4"...
  • Page 110 STEP 6 Phase 6 H100200 SCREW PFH BLK (x8) 8x1-1/2 H100391 SCREW PFH BLK RP03 ROOF PANEL - W2A02185 (x6) 1 9/16"x18 3/4"x85 3/16" (40x476x2165) (x1) (x6) TIP: SCREW - 2" WE RECOMMEND INSTALLING THE ROOF BOTH ENDS FASTENERS ON THE RIGHT SIDE USING A SMALL HAND OPERATED PHILLIPS SCREW DRIVER.
  • Page 111 STEP 7 Phase 6 H100391 SCREW PFH BLK (x6) RP04 ROOF PANEL - W2A02186 1 9/16"x18 3/4"x85 1/4" (40x476x2165) (x1) (x6) SCREW - 2" BOTH ENDS RP04 (x1) ROOF PANEL FLUSH...
  • Page 112 STEP 8 Phase 6 H100391 SCREW PFH BLK (x6) RP02 ROOF PANEL - W2A020184 1 9/16"x19 1/4"x85 3/16" (40x488x2165) (x1) (x6) SCREW - 2" BOTH ENDS RP02 (x1) ROOF PANEL...
  • Page 113 STEP 9 Phase 6 H100391 SCREW PFH BLK (x6) RP02 ROOF PANEL - W2A020184 1 9/16"x19 1/4"x85 3/16" (40x488x2165) (x1) (x6) SCREW - 2" BOTH ENDS RP02 (x1) ROOF PANEL...
  • Page 114 STEP 1 0 Phase 6 H100391 SCREW PFH BLK (x4) RP01 ROOF PANEL - W2A02182 1/16"x1/16"x1/16" (40x287x2165) (x1) RP01 (x1) ROOF PANEL (x4) SCREW - 2"...
  • Page 115 STEP 1 1 Phase 6 H100391 SCREW PFH BLK (x4) RP01 ROOF PANEL - W2A02182 1/16"x1/16"x1/16" (40x287x2165) (x1) ROOF EDGES SHOULD MEET WITH NO GAP SHOWING. (x4) SCREW - 2" RP01 (x1) ROOF PANEL...
  • Page 116 STEP 1 Phase 7 H100489 BOLT PTH BLK (x26) ROCK WALL BOARD - W4L12833 1/4x3/4 5/8"x3 3/8"x23 1/4" (16x86x590) A6P00036 (x4) GREEN HC ROCK #1 (x6) H100473 WASHER LOCK INT BLK (x26) ROCK WALL BOARD - W4L12834 8x15 5/8"x3 3/8"x23 1/4" (16x86x590) (x5) H100398 T-NUT BLK...
  • Page 117 STEP 2 Phase 7 RIGHT RAIL - W4L12831 LEFT RAIL - W4L12830 1 3/8"x3 3/8"x64 3/4" (36x86x1645) (x1) 1 3/8"x3 3/8"x64 3/4" (36x86x1645) (x1) ROCK WALL BOARD - W4L12837 ROCK WALL BOARD - W4L12832 5/8"x2 3/4"x23 1/4" (16x69x590) (x1) 5/8"x3 3/8"x23 1/4" (16x86x590) (x9) LEFT ROCK - SUB ASSEMBLY (x3) DOUBLE ROCK - SUB ASSEMBLY (x4)
  • Page 118 STEP 3 Phase 7 ROCK WALL CLEAT - W4L12847 H100380 SCREW PFH BLK 5/8"x2 3/8"x61 3/4" (16x60x1568) (x1) (x12) 8x1 1/8 9 1/2 in [241 mm] 1 3/8 in [34 mm] (x1) ROCK WALL CLEAT (x12) SCREW - 1 1/8"...
  • Page 119 STEP 4 Phase 7 1 1/2 in [37 mm] ATTACHMENT BOARD - W4L12836 H100391 SCREW PFH BLK H100379 T-NUT BLK 1"x3 3/8"x24 1/4" (24x86x615) (x1) (x4) (x2) 5/16 (x2) T-NUT - 5/16" (x1) ATTACHMENT BOARD SUB ASSEMBLY J31 SUB ASSEMBLY (x4) SCREW - 2"...
  • Page 120 STEP 5 Phase 7 ROCK WALL END BOARD - W4L12835 H100200 SCREW PFH BLK (x4) 5/8"x3 3/8"x24 1/4" (16x86x615) (x1) 8x1 1/2 (x4) SCREW - 1 1/2" FLUSH (x1) ROCK WALL END BOARD FLUSH...
  • Page 121 STEP 6 Phase 7 H100195 BOLT WH BLK (x2) 5/16x2-3/4 (1) ROCK WALL ASSEMBLY H100198 WASHER LOCK EXT BLK (FROM PREVIOUS STEP). (x2) 8x19 ROCK WALL ASSEMBLY (x2) BOLT - 2-3/4 (x2) WASHER - 8x19...
  • Page 122 STEP 7 Phase 7 H100471 LAG SCREW WH BLK H100468 BOLT WH BLK (x2) 5/16x1 1/2 (x2) 5/16x1 A100118 HAND GRIP METAL GREEN 381 c/c (x2) H100379 T-NUT BLK (x2) 5/16 TIP: WE RECOMMEND INSTALLING T-NUTS INTO BOARDS BEFORE ASSEMBLY. (x2) HAND GRIP METAL GREEN 381 c/c (x2)
  • Page 123 STEP 1 Phase 8 A100326 SWING BEAM - W4L12838 SWING BEAM EXTENSION BRACKET-RIGHT (x1) 3 3/8"x5 1/4"x89 1/2" (86x134x2274) (x1) SB 9" BLOCK - W4L08962 A4M00993 EXTENDED SWING BEAM BRACKET (x2) 3 3/8"x5 1/4"x9" (86x134x228) (x1) A100325 SWING BEAM EXTENSION BRACKET-LEFT (x1) H100192 NUT BARREL WH BLK...
  • Page 124 STEP 2 Phase 8 A4M00926 A100164 BYD ID TAG (LARGE) AGES 3-10 SINGLE DUCTILE HANGER SD (x6) (x1) H100665 BOLT HEX SD H100708 WASHER LOCK INT SD H100703 WASHER FLAT SD (x12) 3/8x5 3/4 (x12) 10x18 (x12) 11x25 H100203 SCREW PFH BLK H100700 T-NUT SD (x4)
  • Page 125 STEP 3 Phase 8 ANGLE BRACE - W4L11378 END SUPPORT - W4L11379 1 3/8"x3 3/8"x88 3/4" (36x86x2254) (x2) 1 3/8"x3 3/8"x44 1/8" (36x86x1120) (x1) SP50 SWING BEAM SUPPORT - W4L11377 GROUND BOARD - W4L11380 3 3/8"x3 3/8"x49 3/8" (86x86x1254) 1"x5 1/4"x86 3/4" (24x134x2202) (x1) (x1) H100415...
  • Page 126 STEP 4 Phase 8 H100416 BOLT WH BLK (x2) 5/16x3 H100192 NUT BARREL WH BLK (x2) 5/16x7/8 (1) SWING BEAM A-FRAME ASSEMBLY (FROM PREVIOUS STEP). (x2) NUT BARREL - 7/8" (x2) BOLT - 3" SWING BEAM ASSEMBLY SWING BEAM A-FRAME ASSEMBLY...
  • Page 127 STEP 5 Phase 8 H100481 BOLT HEX BLK (x4) 5/16x1 1/4 H100477 WASHER SPLIT BLK (x4) 5/16 H100478 WASHER FLAT BLK (1) SWING BEAM ASSEMBLY (x4) 8x27 (FROM PREVIOUS STEP). SWING BEAM ASSEMBLY (x4) (x4) WASHER - 8x27 BOLT - 1 1/4" (x4) WASHER - 5/16...
  • Page 128 STEP 6 Phase 8 A6P00362 A4M00927 A6P00253 QUICK LINK SD 26" HD BELT SWING 26" WEB SWING SEAT (x2) (x4) (x1) A4M01005 CHAIN GREEN 7mm x 1452mm (57in) (x4) NOTE: SEE WEB SWING SETUP INSTRUCTIONS, ON THE NEXT PAGE, FOR PROPER INSTALLATION. (x4) CHAIN GREEN 7mm x 1452mm (57in) (x4)
  • Page 129 SETUP WEB SWING WEB SWING SETUP INSTRUCTIONS: FOLLOW INSTRUCTIONS BELOW BEFORE USING THE WEB SWING. TIGHTEN IMPORTANT: QUICK LINK SWING MUST BE SET AT A MINIMUM OF 8 INCHES OFF THE INSERT INTO QUICK LINK GROUND WHEN INSTALLED. IMPORTANT: TO ENSURE STRAIGHT SWINGING MOTION, ADJUST ALL (4) "S"...
  • Page 130 STEP 1 Phase 9 H100008 BOLT WH H100004 NUT BARREL WH (x3) 5/16x1 (x3) 5/16 x 5/8 A100287 or A6P00539 (x1) SLIDE VF 10 FT H100031 WASHER LOCK EXT H100088 SCREW PFH SLIDE MOUNTING BOARD - W4L09040 (x3) 12x19 (x4) 8x1 1/8 5/8"x1 3/8"x20 3/8"...
  • Page 131 STEP 1 Phase 10 A100178 AUGER GROUND STAKE (x4) H100406 BOLT WH BLK H100404 H100171 NUT BARREL WH BLK BOLT WH BLK (x2) 1/4x1 1/2 (x4) (x2) 1/4x5/8 1/4x1 H100474 H100400 WASHER LOCK EXT BLK WASHER FLAT BLK (x4) (x4) 9x18 8x15 NOTE:...
