3.2 Fan Mounting

3.2.1 Flange Sealing Recommendation

The pressure tightness of the fan flange was successfully tested at Levitronix
setup:
•
Flat Gasket: Material FKM, thickness 3 mm, dimensions see Figure 10.
•
Flange Counter Part: Material PP, thickness 15 mm.
•
Screws: M10 screws, tightening torque 5 Nm.

3.2.2 Mounting Proposals

BFS-i10 fans can be adapted into many different duct systems and may be operated in parallel or series to
achieve higher flow or pressure. This section describes a few of many possible mounting scenarios. For more
in-depth information contact Levitronix
210 mm

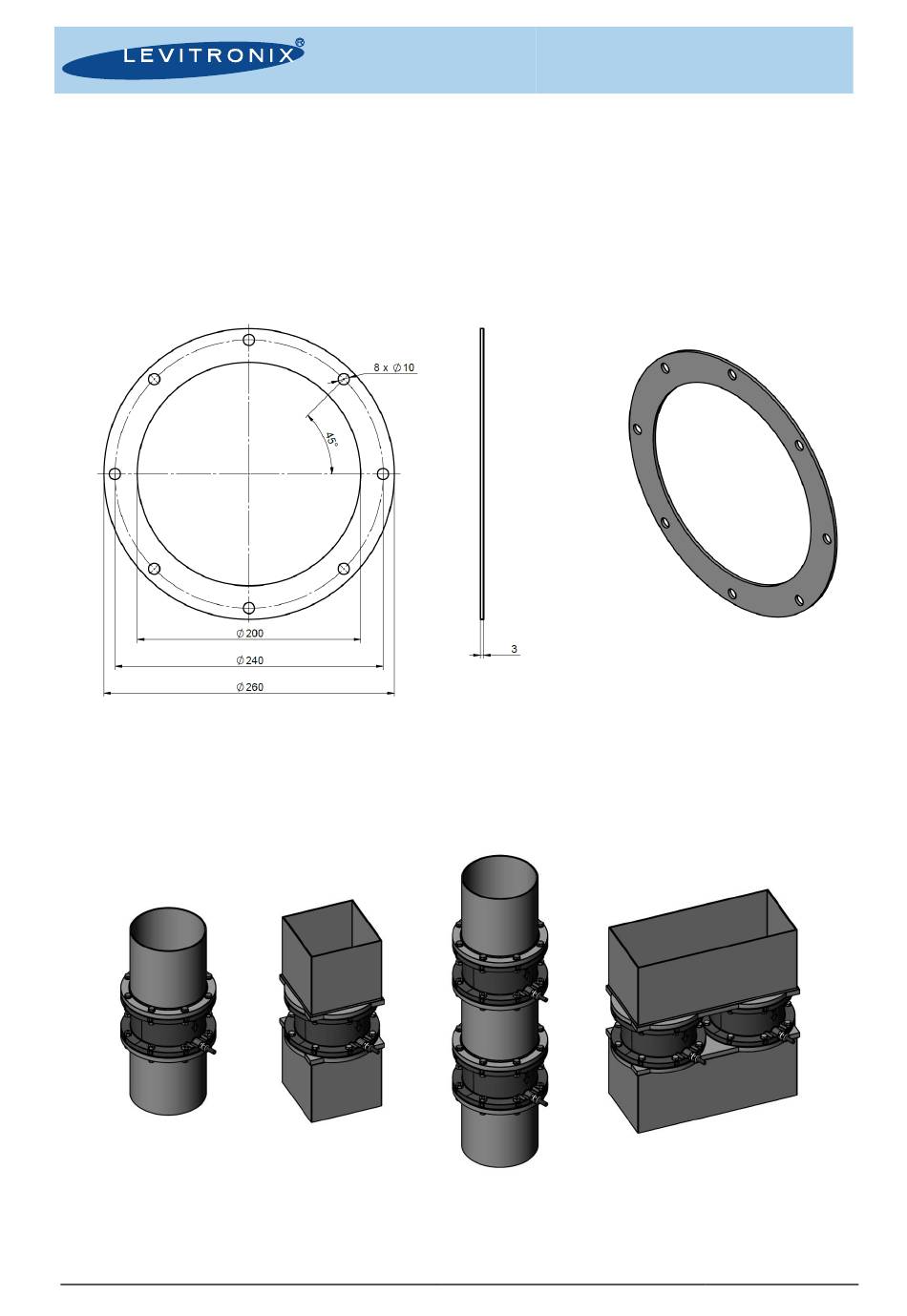

Figure 11: Possible mountings of BFS-i10 in different duct systems
PL-3505-00, Rev00, DCO# 21-249
Figure 10: Flat Gasket Dimensions, used by Levitronix
Note: Dimensions in mm.
® technical support (chapter 6).
210 mm x 210 mm
(Stated dimensions are outer duct dimensions)
210 mm
Series Operation
Up to 2x pressure
User Manual for BFS-i10
www.levitronix.com
®
with the following reference
®
474 mm x 210 mm
Parallel operation
Up to 2x flow rate
