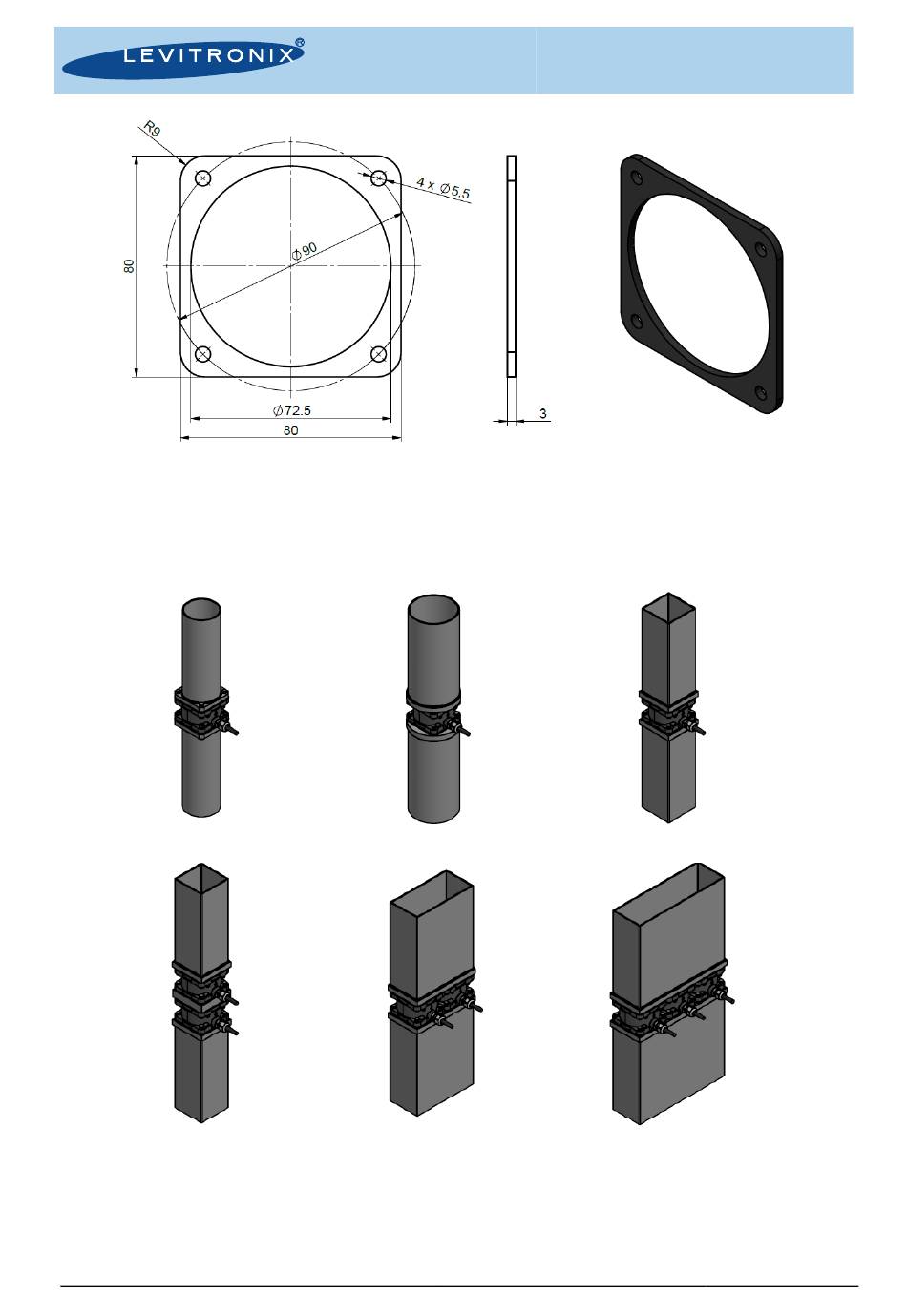

Figure 15: Flat Gasket Dimensions (mm) used by Levitronix

4.2.2 Mounting Proposals

BFS-i04 fans can be adapted into many different duct systems and may be operated in parallel or series to
achieve higher flow or pressure. This section shows a few of many possible mounting scenarios. For more in-
®
depth information contact Levitronix technical support (section 6.3).
Round duct, Round duct,
Square duct
small diameter large diameter
2 fans in series, 2 fans in parallel, 3 fans in parallel
up to 2 x pressure up to 2 x flow rate 3 x flow rate
Figure 16: Possible mountings of BFS-i04 in different duct systems
