3.2 Fan Mounting

3.2.1 Flange Sealing Recommendation

The pressure tightness of the fan flange was successfully tested at Levitronix
setup:
•
Flat Gasket: Material FKM, thickness 3 mm, dimensions see Figure 10.
•
Flange Counter Part: Material PVC, thickness min. 10 mm, recommended 15 mm.
•
Screws: M10 screws, tightening torque 1.5 – 3.5 Nm.

3.2.2 Mounting Proposals

BFS-i06 fans can be adapted into many different duct systems and may be operated in parallel or series to
achieve higher flow or pressure. This section describes a few of many possible mounting scenarios. For more
in-depth information contact Levitronix
110 mm x 110 mm
110 mm x 110 mm
Series operation
Up to 2x pressure
Figure 11: Possible mountings of BFS-i06 in different duct systems
PL-3502-00, Rev00, DCO# 21-249

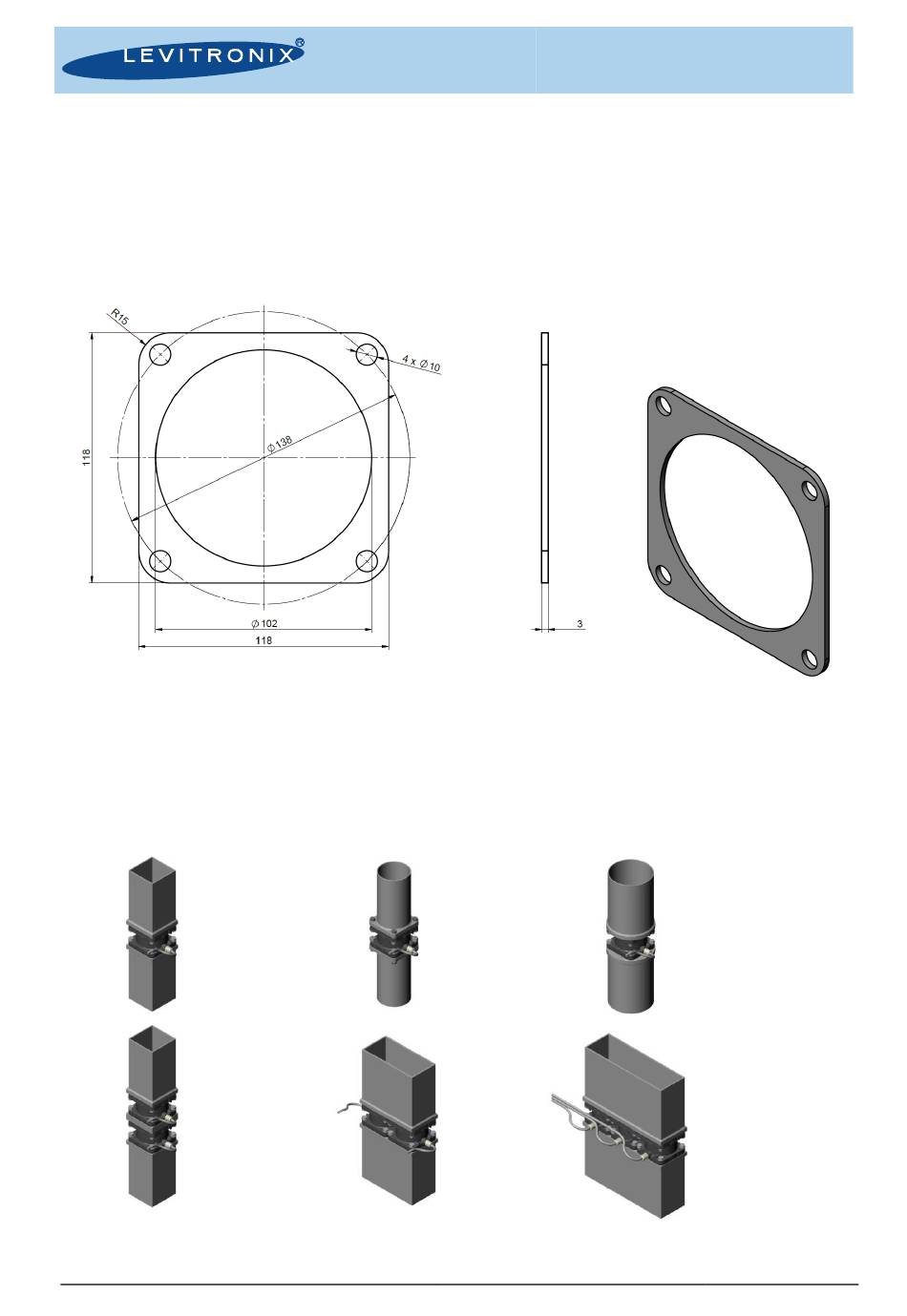

Figure 10: Flat Gasket Dimensions, used by Levitronix
Note: Dimensions in mm
®
technical support (chapter 6).
(Stated dimensions are outer duct dimension)
110 mm
230 mm x 110 mm
Parallel operation
Up to 2x flow rate
User Manual for BFS-i06
www.levitronix.com
®
with the following reference
®
150 mm
350 mm x 110 mm
Parallel operation
Up to 3x flow rate
