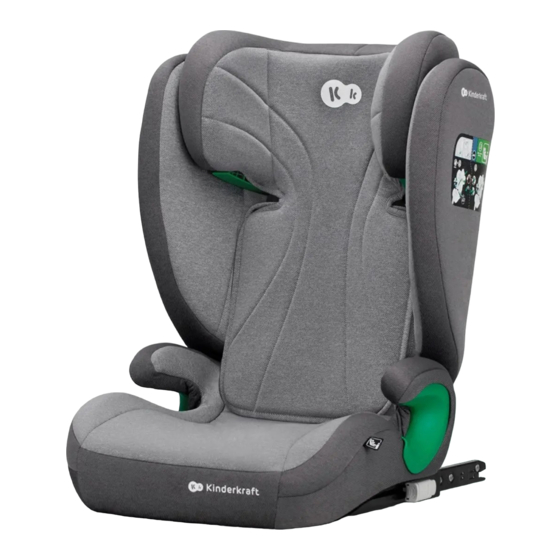

Kinderkraft JUNIOR FIX 2 i-Size User Manual
  1. Manuals
  2. Brands
  3. Kinderkraft Manuals
  4. Car Seat
  5. JUNIOR FIX 2 i-Size
  6. User manual

Kinderkraft JUNIOR FIX 2 i-Size User Manual

Hide thumbs Also See for JUNIOR FIX 2 i-Size:

Advertisement

Table of Contents

JUNIOR FIX 2 i-Size
USER GUIDE
MODEL: JUNIOR FIX 2 i-Size ECE R129.03
v.3.0
MODEL: I-GUARD
ECE.R129.03
ver. 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUNIOR FIX 2 i-Size and is the answer not in the manual?

Questions and answers

Related Manuals for Kinderkraft JUNIOR FIX 2 i-Size

Summary of Contents for Kinderkraft JUNIOR FIX 2 i-Size

  • Page 1 JUNIOR FIX 2 i-Size USER GUIDE MODEL: JUNIOR FIX 2 i-Size ECE R129.03 v.3.0 MODEL: I-GUARD ECE.R129.03 ver. 1.2...
  • Page 2 UN/ECE Regulation No. 129 concerning the approval of child restraint systems (UN/ECE R129/03). The Junior Fix 2 i-Size car seat is designed to transport children with a height of 100-150 cm forward-facing. The car seat can be installed in the car in the places indicated by the manufacturer in the vehicle manual.
  • Page 3 Hight of the child Car seat setting Car seat mounting ISOFIX + three-point car seat belt 100-150cm Three-point car seat belt...

  • Page 4: Safety Instructions

    2.0 Safety instructions Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. • The car seat MUST NOT be installed on the vehicle seats mounted backwards or sideways. • The car seat MUST NOT be placed on the vehicle seats with an active front air-bag.
  • Page 5 NEVER leave your child unattended in the car seat. !WARNINGS! Make sure that the luggage and other objects are adequately secured, in particular on the rear parcel shelf, as they can cause injuries in the event Please refer to your vehicle operating manual for information on the suitability of a collision.
  • Page 6 Set a good example for your child and always fasten your car seat belt. An On some vehicle seats made of delicate materials, the use of car seats adult who is not fastened with a car seat belt can also pose a threat to a child. may leave marks and/or discolouration.
  • Page 7 3.0 Installing the car seat backrest 1. Place the backrest behind the seat and hook the bottom of the backrest onto the seat 2. Adjust the backrest until it locks in the vertical position. You will hear a characteristic "click" sound. 3.
  • Page 8 4.0 Securing the child in the car seat 4.1 Headrest height adjustment 1. Grasp the headrest adjustment lever located on the back of the headrest and pull it gently upwards 2. Adjust the headrest by selecting one of ten options and when the height is adjusted, release the adjustment lever.
  • Page 9 4.2 Correct headrest adjustment Verify whether the safety harness fits the child's body properly; if not, adjust the headrest height When adjusting the headrest, make sure that the shoulder safety harness passes between the child's shoulder and neck (through the middle of the collarbone). The harness cannot press against the child's neck or slip off the shoulder.

  • Page 10: Adjusting The Backrest

    4.3 Adjusting the backrest The backrest of the car seat is movable, thanks to which it is possible to adjust it accurately to the plane of the vehicle seat. Adjust the position of the car seat backrest, until it is snug against the vehicle seat.
  • Page 11 5.0 Installation in the vehicle 5.1 Installation using ISOFIX connectors 1. Press the ISOFIX latch release buttons and slide them out as far as possible. 2. Grasp the car seat with both hands and insert both latches into the places of installation on the vehicle seat. When you hear a "click" of each of the ISOFIX latches, push the seat of the car seat against the backrest of the vehicle seat, exerting firm even pressure on both sides.
  • Page 12 4. Place your child in the car seat 5. Adjust the headrest to the child's height. 6. Pass the vehicle seat belt through the car seat shoulder guide and waist guides, and then fasten it. You should hear a characteristic "click". Pay attention to the correct positioning of the belt in the guides (waist and shoulder guides).
  • Page 13 7. The waist seat belt must run as low as possible across your child's pelvis. 8. Pull the waist section of the belt towards the buckle and then the shoulder section towards the belt retractor, eliminating any slack.
  • Page 14 5.2 Installation using the vehicle three-point seat belt. 1. Make sure that the backrest of the car seat rests flat against the backrest of the vehicle seat. 2. Place your child in the car seat 3. Adjust the headrest to the child's height. 4.
  • Page 15 5. The waist seat belt must run as low as possible across your child's pelvis. 6. Pull the waist section of the belt towards the buckle and then the shoulder section towards the belt retractor, eliminating any slack.
  • Page 16 6.0 Removing the car seat (ISOFIX installation system) 1. Press the ISOFIX release buttons on both ISOFIX latches simultaneously. 2. When the latches are released and the ISOFIX button indicators turn red, slide the car seat out of the ISOFIX guides. 3.
  • Page 17 7.0 Removing the car seat backrest for storage 1. Uncover the inside of the car seat by unfastening the fasteners located on the backrest. 2. Push the backrest so that it lies flat. 3. Detach the backrest by pulling it out from the latches ISOFIX release button ISOFIX latch...

  • Page 18: Removing The Cover

    8.0 Removing the cover 1. To make it easier to remove the cover, raise the headrest to the highest position. Uncover the car seat cover by replacing the material from the backrest to the headrest, and then unfasten the fasteners located on the edges of the fabric of the inner part of the car seat backrest.

  • Page 19: Installing The Cover

    5. Pull the material towards you to slide it off the seat. 6. Remove the fabric from the headrest starting from its sides. 8.1 Installing the cover To put the cover back on - just reverse the above sequence of actions. Align the cover with the attachment points on the car seat.
  • Page 20 • Prolonged sun exposure of the cover is prohibited. • Plastic parts can be cleaned with soap and water. • Do not use aggressive cleaning agents (such as bleach/stain removers). Full text of Warranty Terms and Conditions is available on the website WWW.KINDERKRAFT.COM...
