Summary of Contents for Kinderkraft I-SPARK i-Size

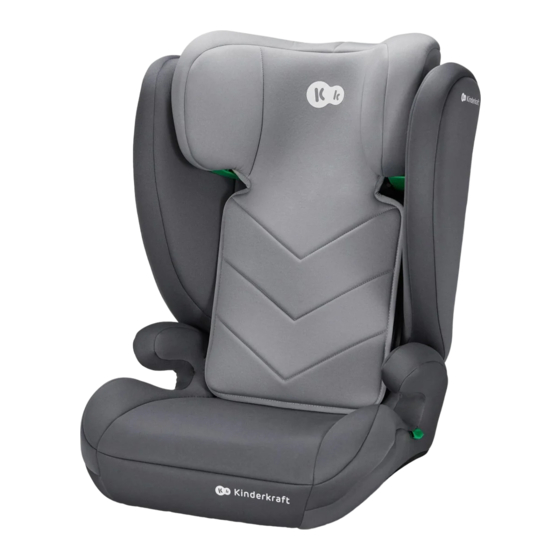

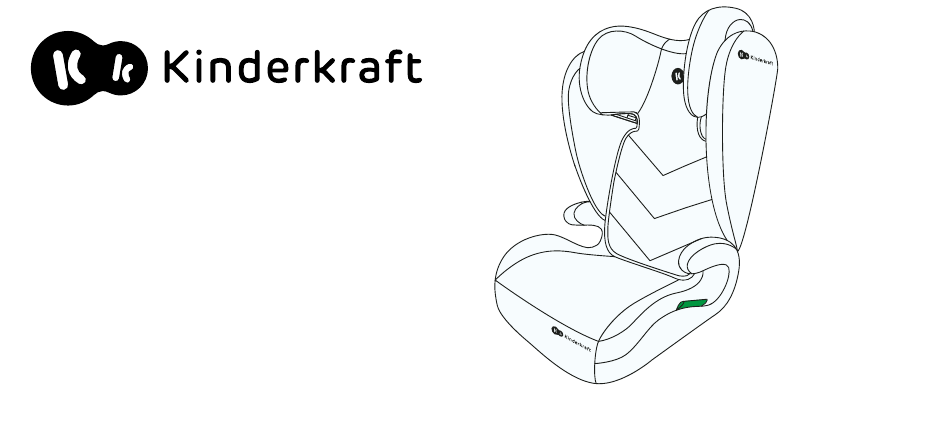

- Page 1 I-SPARK i-Size USER GUIDE MODEL: I-SPARK i-Size ECE R129.03 v.1.0 MODEL: I-GUARD ECE.R129.03 ver. 1.2...
- Page 2 UN/ECE Regulation No. 129 concerning the approval of child restraint systems (UN/ECE R129/03). The I-SPARK i-Size car seat is intended for transporting children 100-150 cm tall (up to approximately 12 years). The child should be fastened using three-point car seat belt for adults.
- Page 3 Hight of the child Car seat setting Car seat mounting 100-150cm Three-point car seat belt 140-150cm Three-point car seat belt...
-
Page 4: Safety Instructions
2.0 Safety instructions Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. • The car seat MUST NOT be installed on the vehicle seats mounted rearward facing or sideways. •... - Page 5 Please refer to your vehicle operating manual for information on the • Make sure that the luggage and other objects are adequately secured, suitability of the vehicle seat for use with a car seat. in particular on the parcel shelf, as they can cause injuries in the event of •...
- Page 6 • In the event of an emergency, it is important to quickly unfasten the car seat • On some vehicle seats made of delicate materials, the use of car seats belt. This means that the release button of the safety harness is not fully may leave marks and/or discolouration.
- Page 7 3.0 Securing the child and backrest adjustment" The backrest of the car seat is movable, thanks to which it is possible to adjust it accurately to the plane of the vehicle seat. It is important for the car seat to be snug against the surface of the vehicle seat. Tilt the backrest backwards until it is snug against the vehicle seat.
- Page 8 3.1 Height of the headrest The headrest should fit snugly around your child's head, with the lower part of the headrest at the same height as your child's shoulders. 1. Grasp the headrest adjustment lever located on the back of the headrest and pull it gently upwards 2.
- Page 9 3.2 Removing the car seat backrest 1. Uncover the inside of the car seat by unfastening the fasteners located on the backrest. 2. Push the backrest away from you so that the car sea backrest lies flat. 3. Detach the backrest by pulling it out of the latches. Fastener Backrest latches...
- Page 10 3.3 Installing the car seat backrest 1. Place the backrest flat behind the seat 2. Hook the lower part of the backrest onto the seat 3. Adjust the backrest until it locks in the vertical position. You will hear a characteristic "click"...
- Page 11 4.0 Installation of the car seat Note! The car seat should be placed directly on the vehicle seat. 4.1 Children between 100 and 150 cm tall - using a three-point car seat belt. 1. Place the car seat on the vehicle seat. 2.
- Page 12 4.2 Children between 140 and 150 cm tall - using a three-point car seat belt. 1. Place the car seat on the vehicle seat. 2. Push the car seat all the way to the vehicle seat. 3. Place your child in the car seat 4.
-
Page 13: Removing The Cover
5.0 Removing the cover 1. Remove the fabric from the headrest starting from the sides. Gently stretch the elastic band securing the material and remove it from the hook. 2. Unfasten the fasteners located on both sides of the car seat backrest and then uncover the interior of the seat. - Page 14 NOTE! The car seat must not be used without the cover. The full text of the Warranty Terms and Conditions is available on the website WWW.KINDERKRAFT.COM • The cover is removable and washable with a mild powder and using a program for delicate fabrics (30°C).
