6.1875"
Luxier

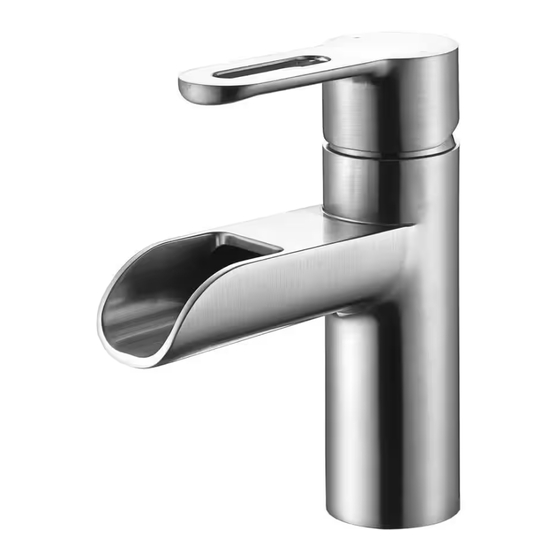

Single Handle Lavatory Faucet
Model Number:
BSH16-SB
(Brushed Nickel)
BSH16-SC
(Chrome)
BSH16-SG
(Brushed Gold)
BSH16-SM
(Matte Black)
BSH16-SO
(Oil Rubbed Bronze)
1.75"
1.375" Hole Size
Approx. 24" long hose with 3/8" compression ttings
Features:
- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free Ceramic Cartridge
- Maximum Flow Rate 1.2 gpm at 60 psi
- Complies with:
NSF 61-9
ASME A112.18.1 / CSA B125.1
IAPMO / UPC / cUPC
CA AB-1953
ADA
5.5"
4.4"
3.25"
* Drawing not to scale. All Measurements are approximate*
1
6.625"
Max. Deck Thickness 2.25"
BSH16-S Rev. C 02/2023
Advertisement
Related Manuals for Luxier BSH16-SB
Summary of Contents for Luxier BSH16-SB
- Page 1 Single Handle Lavatory Faucet Model Number: Features: BSH16-SB - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole Installation BSH16-SC (Chrome) - Drip Free Ceramic Cartridge BSH16-SG (Brushed Gold) - Maximum Flow Rate 1.2 gpm at 60 psi BSH16-SM...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier BSH16-S Rev. C 02/2023...
- Page 4 10. Plastic Support 11. Base Ring 12. Base Ring Washer 13. Rubber Washer 14. Metal Washer 15. Locking Nut 16. Screws 17. Water Supply Hoses 18. Filter Screens 19. Pop Up Drain Assembly 20. Hex Key Luxier BSH16-S Rev. C 02/2023...
