Luxier

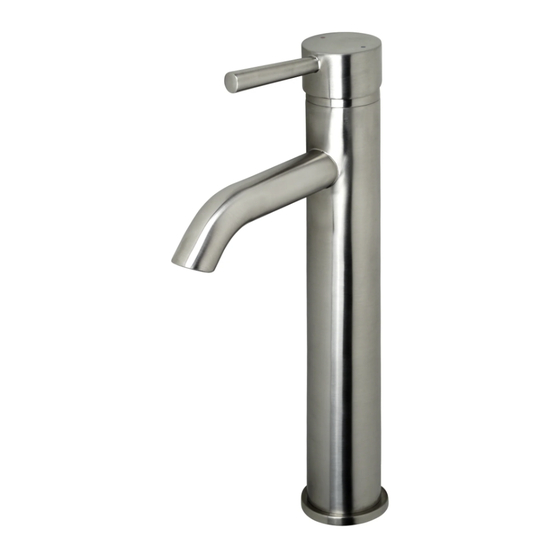

Single Handle Vessel Sink Faucet
Model Number:
BSH03-TB
(Brushed Nickel)
BSH03-TC
(Chome)
BSH03-TG
(Brushed Gold)
BSH03-TM
(Matte Black)
BSH03-TO
(Oil Rubbed Bronze)
2"
13.38"
2.2"
2"
Approx. 27" long water supply hose with 3/8" compression tting
Features:
- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free Ceramic Cartridge
- Maximum Flow Rate 1.2 gpm at 60 psi
- Complies with:
NSF 61-9
ASME A112.18.1 / CSA B125.1
IAPMO / UPC / cUPC
CA AB-1953
ADA
7.24"
3.8"
5.6"
Max. Deck Thickness 1.5"
1 3/8" Hole Size
*Drawings Not To Scale. All Measurements are Approximate*
1
9.25"
BSH03T Rev. SG2 10/2021
Advertisement
Related Manuals for Luxier BSH03-TB
Summary of Contents for Luxier BSH03-TB
- Page 1 Single Handle Vessel Sink Faucet Model Number: Features: BSH03-TB - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole Installation BSH03-TC (Chome) - Drip Free Ceramic Cartridge BSH03-TG (Brushed Gold) - Maximum Flow Rate 1.2 gpm at 60 psi...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 When using spray cleaners, spray rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier BSH03T Rev. SG2 10/2021...
- Page 4 F. Remove aerator from the spout and 13. Steel Washer let the water run for about 1 minute to 14. Locking Nut clear any debris in the plumbing system. 15. Screws (x2) Attach the aerator. 16. Water Supply Hoses Luxier BSH03T Rev. SG2 10/2021...
