5.9"
6.13"
Luxier USA

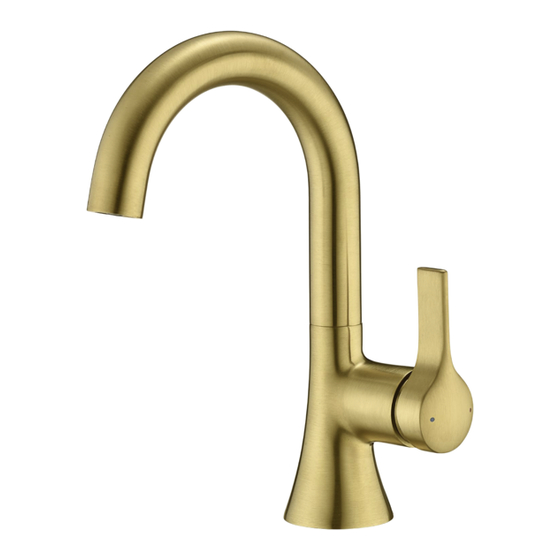

Single Handle Lavatory Faucet
Model Number:
BSH11-SB
(Brushed Nickel)
BSH11-SC
(Chrome)
BSH11-SG
(Brushed Gold)
BSH11-SM
(Matte Black)
BSH11-SO
(Oil Rubbed Bronze)
4.93"
2"
2.19"
Approx. 21" long hose with 3/8" compression ttings
Features:
- Brass and Zinc Alloy Construction
- Single Hole (Right Hand) Installation
- 1/4 Turn Drip Free Ceramic Cartridge
- Maximum Flow Rate 1.2 gpm at 60 psi
- Complies with:
NSF 61-9
ANSI / ASME A112.18.1
cUPC
IAPMO / UPC
CA AB-1953
ADA
8.84"
1.375" Hole Size
* Drawing not to scale. All Measurements are approximate*
1
4.72"
Max. Deck Thickness 2"
BSH11-S Rev. B 3/2021
Advertisement
Table of Contents
Related Manuals for Luxier BSH11-SG
Summary of Contents for Luxier BSH11-SG
- Page 1 - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole (Right Hand) Installation BSH11-SC (Chrome) - 1/4 Turn Drip Free Ceramic Cartridge BSH11-SG (Brushed Gold) - Maximum Flow Rate 1.2 gpm at 60 psi BSH11-SM (Matte Black) - Complies with:...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. BSH11-S Rev. B 3/2021 Luxier USA...
- Page 4 02. Handle 03. Cap 04. Bonnet 05. Cartridge 06. Body 07. Aerator 08. Mounting Rod 09. Rubber Washer 10. Metal Washer 11. Nut 12. Deck Plate 13. Water Supply Hose 14. Pop Up Drain Assembly BSH11-S Rev. B 3/2021 Luxier USA...
