Luxier FTF01-TB Quick Start Manual

Freestanding floor mount bathtub filler
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

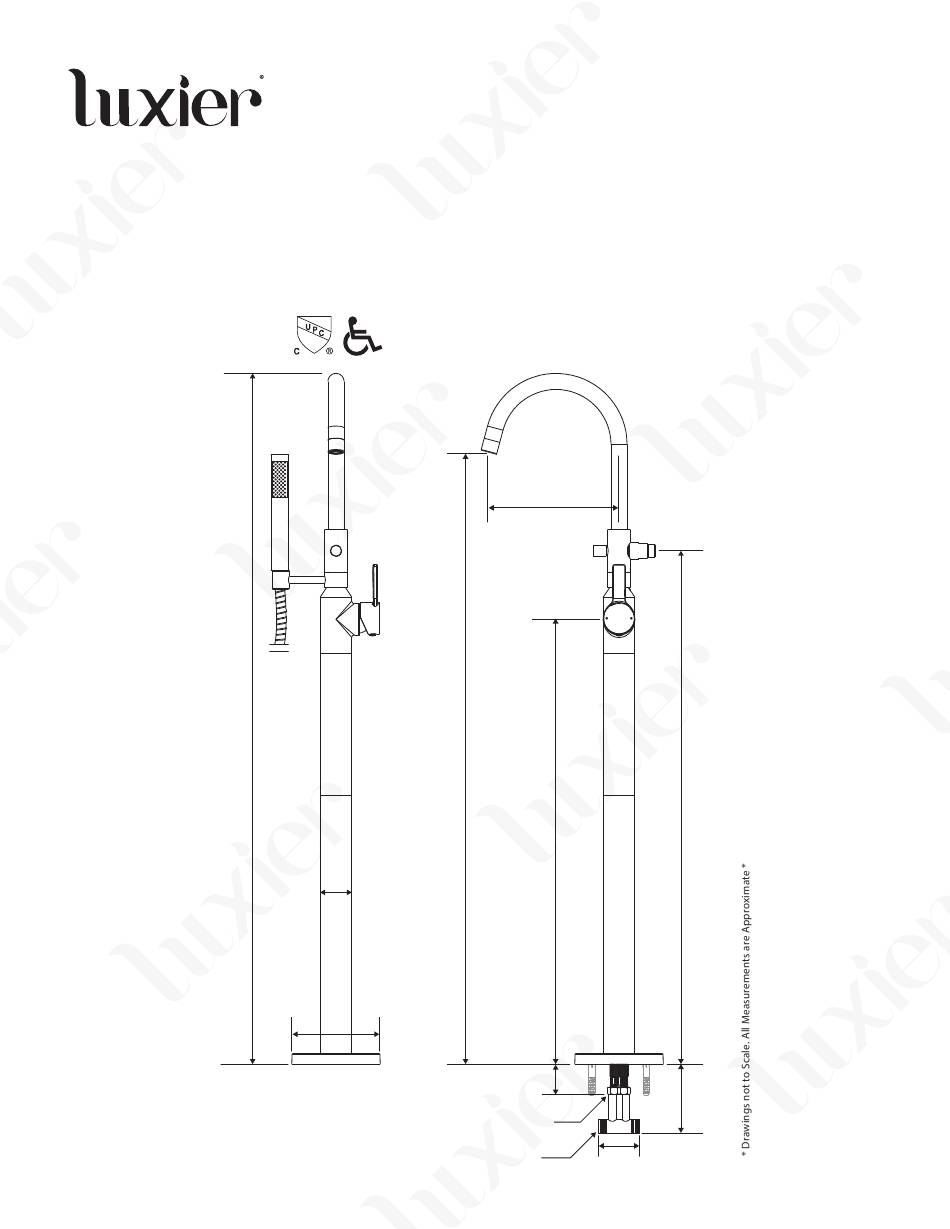

43 1/16"
Luxier
Freestanding Floor Mount Bathtub Filler
Model Number:
FTF01-TB
(Brushed Nickel)
FTF01-TC
(Chrome)
FTF01-TM
(Matte Black)
FTF01-TO
(Oil Rubbed Bronze)
38 1/8"
2"
5 1/2"
1

Features:

- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free 40 mm Ceramic Cartridge
- Hand shower flow rate 1.8 gpm at 80 psi
- Tub spout flow rate 3.7 gpm at 20 psi
- Rough-in kit included
- Complies with:
IAPMO / UPC / cUPC
ADA
8 1/8"
27 3/4"
1 3/4"
G3/8
1/2" NPT
3 1/2"
32"
4 1/4"
FTF01 Rev.3.1 01/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTF01-TB and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier FTF01-TB

Summary of Contents for Luxier FTF01-TB

  • Page 1 Freestanding Floor Mount Bathtub Filler Model Number: Features: FTF01-TB - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole Installation FTF01-TC (Chrome) - Drip Free 40 mm Ceramic Cartridge FTF01-TM (Matte Black) - Hand shower flow rate 1.8 gpm at 80 psi...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
  • Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier FTF01 Rev.3.1 01/2021...
  • Page 4 T-Connector before connecting tighten it fully. Slide the Escutcheon onto the to the water pipes. Do not overtighten the Bottom Tube and connect it to the Top Tube. connections. Make sure the Tubes are fully tightened. Luxier FTF01 Rev.3.1 01/2021...
  • Page 5 Use a drill with T-Connector. Do not overtighten the connections. 3/8” drill bit, drill the holes 2” deep and insert the included anchors. Make sure the anchors are flush with the finished floor. Luxier FTF01 Rev.3.1 01/2021...
  • Page 6 1 minute and check for leaks at all connections. Move the Handle (4) throughout the temperature range to flush out any debris in both hot and cold water lines thoroughly. The installation is now complete. Luxier FTF01 Rev.3.1 01/2021...
  • Page 7 09. Hot and Cold Water Supply Hose 10. Mounting Screws and Anchors 11. T-Connector 12. Cartridge 13. Cartridge Locking Nut 14. Dome Cap 13 14 15. Cap, Setscrew and Hex Wrench 16. Handle 17. Setscrews 18. Spout Luxier FTF01 Rev.3.1 01/2021...
