6.77"
6.2"
Luxier USA

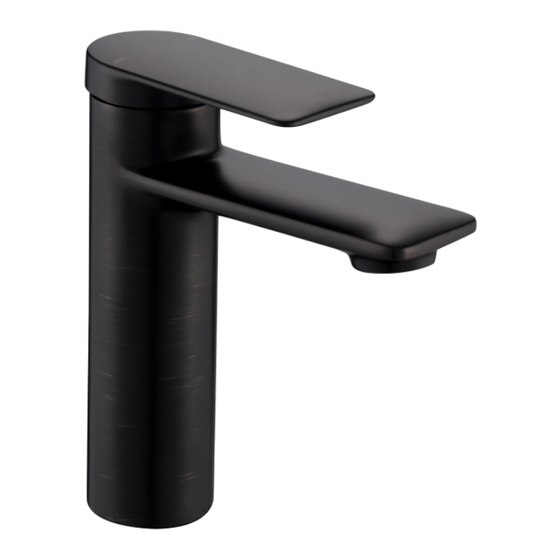

Single Handle Lavatory Faucet
Model Number:
BSH07-SB
(Brushed Nickel)
BSH07-SC
(Chrome)
BSH07-SO
(Oil Rubbed Bronze)
BSH07-SM
(Matte Black)
4.59"
1.8"
1 3/8" Hole Size
3/8" Compression Fittings
2.18"
1
Features:
- Brass and Zinc Alloy Construction
- Single Hole Installation
- Drip Free Ceramic Cartridge
- Maximum Flow Rate 1.2 gpm at 60 psi
- Complies with:
NSF 61-9
ASME A112.18.1 / CSA B125.1
IAPMO / UPC / cUPC
CA AB-1953
ADA
5.96"
4.21"
Max. Deck Thickness 2"
* Drawing not to scale. All Measurements are approximate*
BSH07S Rev. B 04/2021
Advertisement
Related Manuals for Luxier BSH07-SB
Summary of Contents for Luxier BSH07-SB
- Page 1 Single Handle Lavatory Faucet Model Number: Features: BSH07-SB - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole Installation BSH07-SC (Chrome) - Drip Free Ceramic Cartridge BSH07-SO (Oil Rubbed Bronze) - Maximum Flow Rate 1.2 gpm at 60 psi...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier USA BSH07S Rev. B 04/2021...
- Page 4 05. O-Ring 06. Bonnet 07. Cartridge 08. Body 09. Water Supply Hoses (non-removable) 10. Mounting Rod 11. Rubber Washer 12. Metal Washer 13. Locking Nut 14. Aerator 15. Pop Up Drain Assembly 16. Deck Plate Luxier USA BSH07S Rev. B 04/2021...
