5.9"
Luxier USA

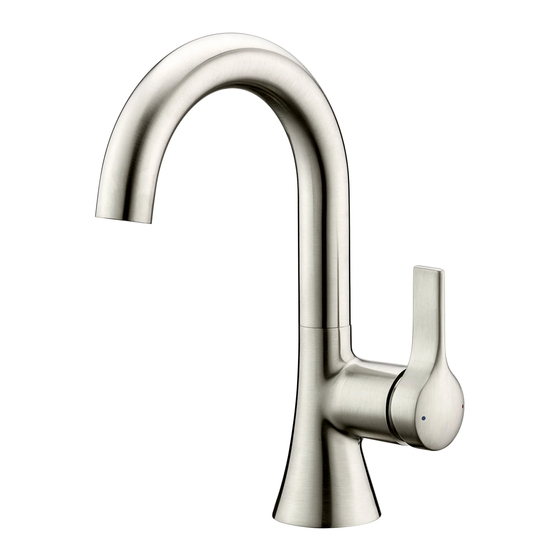

Single Handle Lavatory Faucet
Model Number:
BSH11-SB
(Brushed Nickel)
BSH11-SC
(Chrome)
BSH11-SM
(Matte Black)
BSH11-SO
(Oil Rubbed Bronze)
4.93"
2"
Approx. 21" long hose with 3/8" compression ttings
Features:
- Brass and Zinc Alloy Construction
- Single Hole (Right Hand) Installation
- 1/4 Turn Drip Free Ceramic Cartridge
- Maximum Flow Rate 1.2 gpm at 60 psi
- 2 Stage Sprayer Head
- Complies with:
NSF 61-9
ANSI / ASME A112.18.1
cUPC
Certified by
IAPMO R&T
IAPMO / UPC
CA AB-1953
ADA
8.84"
1.375" Hole Size
* Drawing not to scale. All Measurements are approximate*
1
4.72"
Max. Deck Thickness 2"
BSH11-S Rev. 1 5/2020
Advertisement
Related Manuals for Luxier BSH11-SB
Summary of Contents for Luxier BSH11-SB
- Page 1 Single Handle Lavatory Faucet Model Number: Features: BSH11-SB - Brass and Zinc Alloy Construction (Brushed Nickel) - Single Hole (Right Hand) Installation BSH11-SC (Chrome) - 1/4 Turn Drip Free Ceramic Cartridge BSH11-SM (Matte Black) - Maximum Flow Rate 1.2 gpm at 60 psi...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);...
- Page 3 • When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. BSH11-S Rev. 1 5/2020 Luxier USA...
- Page 4 01. Setscrew 02. Handle 03. Cap 04. Bonnet 05. Cartridge 06. Body 07. Aerator 08. Mounting Rod 09. Rubber Washer 10. Metal Washer 11. Nut 12. Water Supply Hose 13. Pop Up Drain Assembly BSH11-S Rev. 1 5/2020 Luxier USA...
