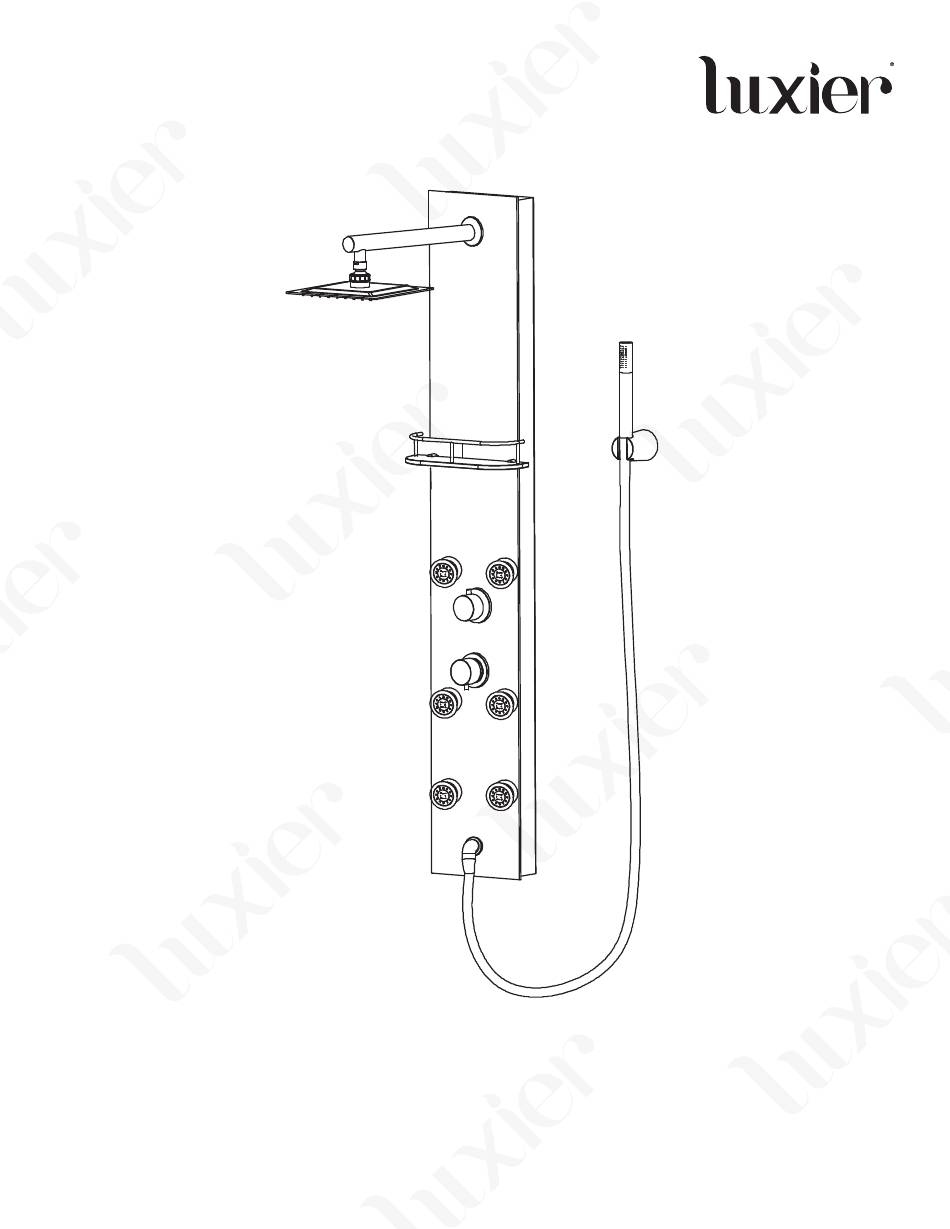

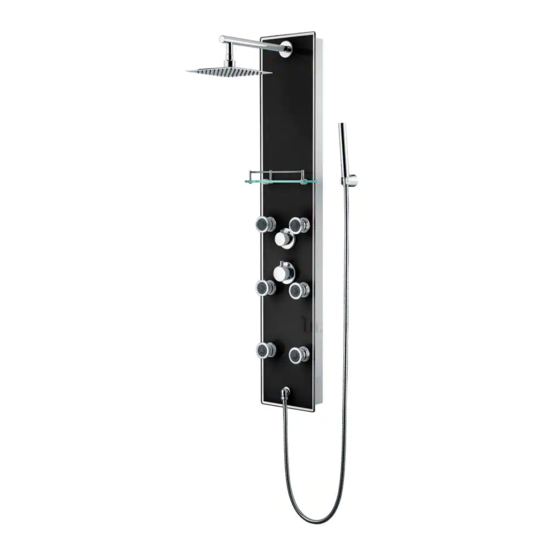

Features
- Stunning stylish European inspired design
- Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors)
- Square stainless thin profile shower head
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP26-CEC-AQU
(Aqua Blue)
SP26-CEC-BLK
(Black)
SP26-CEC-SLR
(Silver)
SP26-CEC-WHT
(White)
SP26-CEC Rev. A 022020
Advertisement
Related Manuals for Luxier SP26-CEC-AQU
Summary of Contents for Luxier SP26-CEC-AQU
- Page 1 SP26-CEC-AQU (Aqua Blue) SP26-CEC-BLK (Black) SP26-CEC-SLR (Silver) SP26-CEC-WHT (White) Features - Stunning stylish European inspired design - Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors) - Square stainless thin profile shower head - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber grommets, and other parts are required but not included with this product.) Refer to Appendix A for detail diagram for the outlet box. Luxier SP26-CEC Rev. A 022020...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP26-CEC Rev. A 022020...
-
Page 5: Technical Data
California. To learn more about this water saving feature, please contact our customer service department.) 240 mm 340 mm 9.45” 13.39” 1300 mm 51.18” 710 mm 27.95” 480 mm 18.90” 270 mm 10.63” 70 mm 2.76” * Drawings not to scale. All measurements are approximate * Luxier SP26-CEC Rev. A 022020... - Page 6 06. Glass Shelf 07. Rubber Gasket 08. Locking Nut 09. Hand Shower 10. Hand Shower Cradle 11. Rubber Gasket 12. Hand Shower Hose 13. Screw x 4 14. Mounting Bracket x 2 15. Wall Anchors x 4 Luxier SP26-CEC Rev. A 022020...
-
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before drilling the tiles, use a small piece of painters tape or masking tape over the drill area. This will prevent dam- 1” ages to the tiles) Luxier SP26-CEC Rev. A 022020... - Page 8 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP26-CEC Rev. A 022020...
- Page 9 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP26-CEC Rev. A 022020...
-
Page 10: Operation
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP26-CEC Rev. A 022020... - Page 11 NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to provide a visual concept of the shower outlet box to speed up the installation process. All images are copyright to their respective owners.
