Luxier SP21-SS

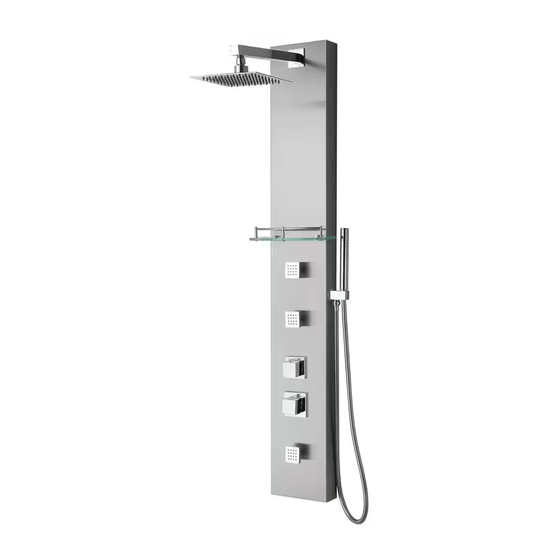

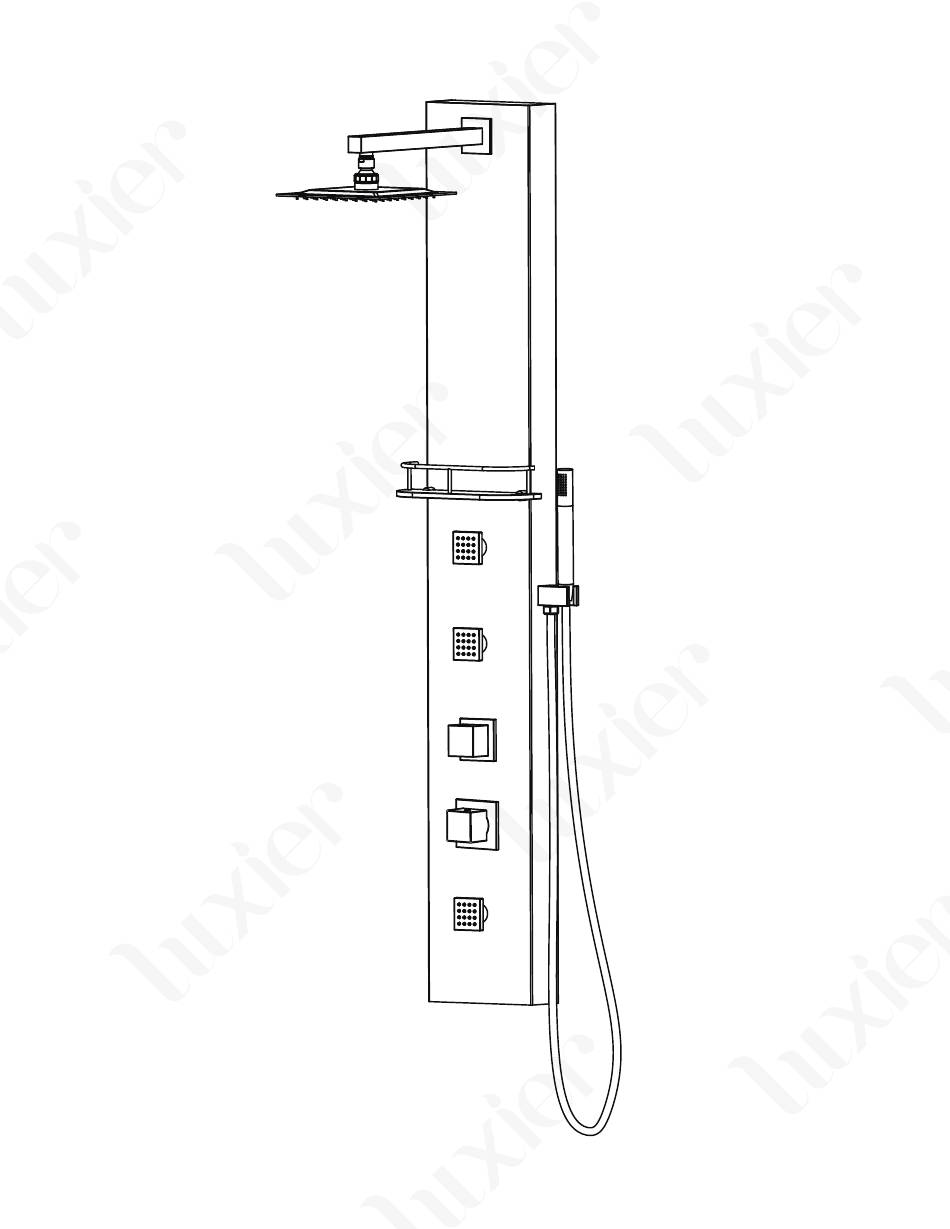

Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- Square stainless thin profile shower head
- 3 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP21-SS Rev. A4 102017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP21-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP21-SS

Summary of Contents for Luxier SP21-SS

  • Page 1 - Durable stainless steel frame construction - Square stainless thin profile shower head - 3 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf Luxier SP21-SS Rev. A4 102017...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP21-SS Rev. A4 102017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP21-SS Rev. A4 102017...
  • Page 5 National Plumbing Code of Canada IAPMO IGC 154-2016 Recommended Operating Pressure: 60 - 70 psi 180mm 355mm 7.1” 14” 1,400mm 55.11” 815mm 32.09” 635mm 25” 290mm 210mm 11.42” 8.27” 70mm 2.76” *All Measurements are Approximate Luxier SP21-SS Rev. A4 102017...

  • Page 6: Parts List

    09. Valve 10. Hand Shower Water Connector 11. Nut 12. Gasket 13. Locking Nut 14. Gasket 15. Rainfall Shower Water Connector 16. Screws X 4 17. Mounting Brackets X 2 18. Wall Anchors X 4 Luxier SP21-SS Rev. A4 102017...

  • Page 7: Installation

    Use a piece of painters tape or masking tape over the drill area to prevent damages to the tiles. (NOTE: The distance between the two 815mm brackets should be 815 mm or 32.09”) 32.09” Luxier SP21-SS Rev. A4 102017...
  • Page 8 4. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any pip- ing or wiring in the wall. Insert the anchors into the wall. 1” 5. Secure the mounting brackets to the wall. Luxier SP21-SS Rev. A4 102017...
  • Page 9 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP21-SS Rev. A4 102017...
  • Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP21-SS Rev. A4 102017...

  • Page 11: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP21-SS Rev. A4 102017...
