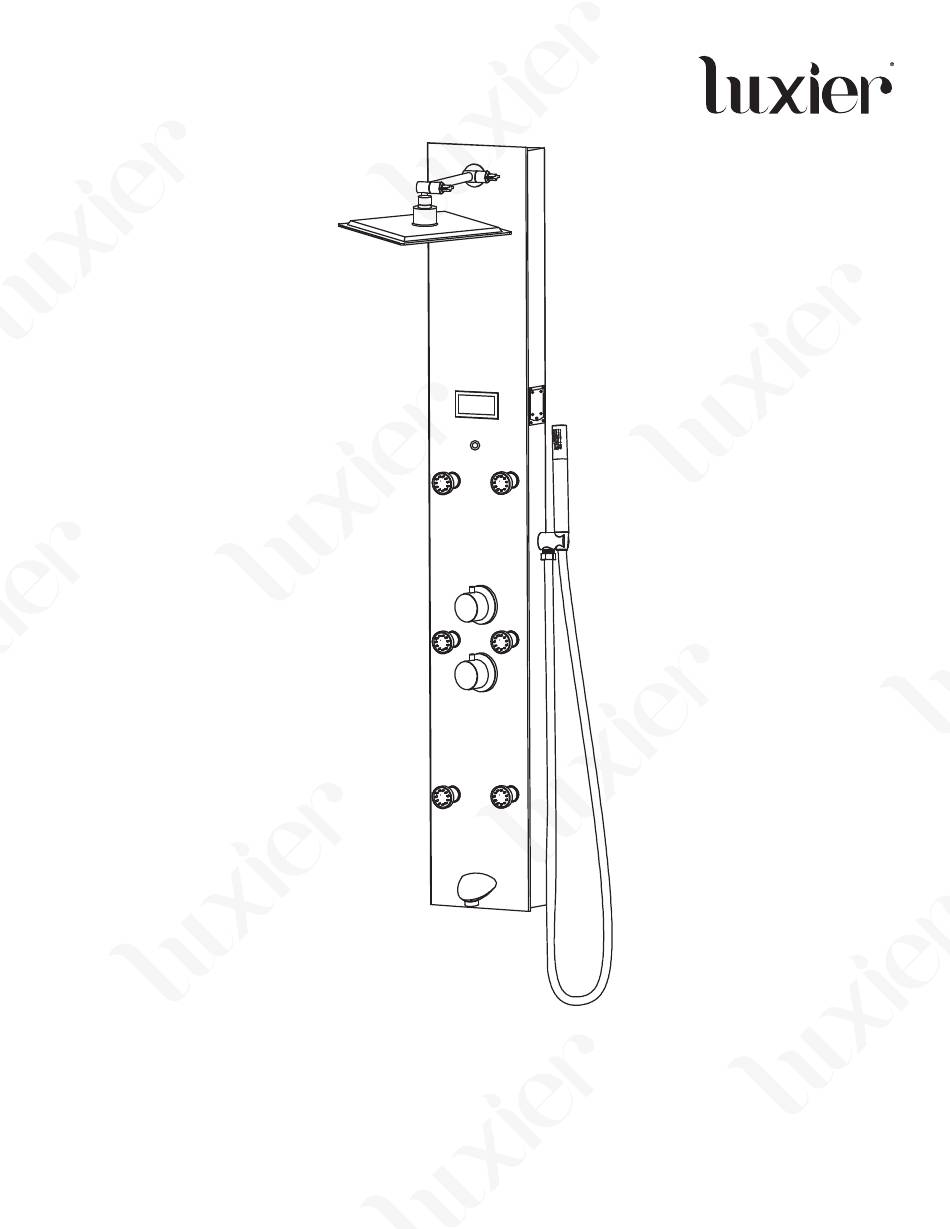

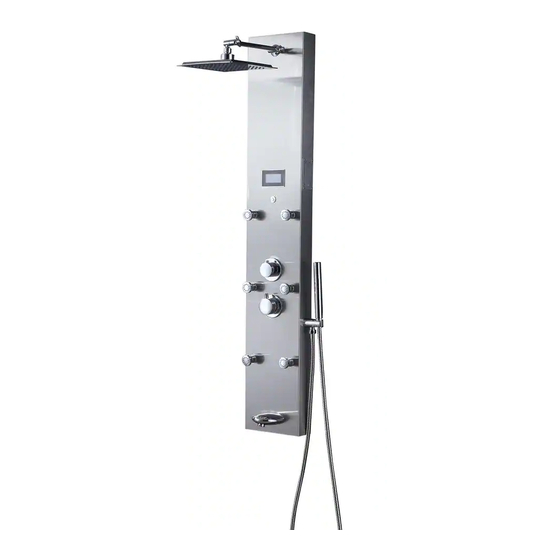

SP34-CEC
Features
- Stunning stylish European inspired design
- Square thin profile shower head with adjustable shower arm
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Battery / hydro opereated LCD temperature display
Luxier
1
SP34-CEC Rev. A 102019
Advertisement
Related Manuals for Luxier SP34-CEC
Summary of Contents for Luxier SP34-CEC
- Page 1 - Stunning stylish European inspired design - Square thin profile shower head with adjustable shower arm - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Battery / hydro opereated LCD temperature display Luxier SP34-CEC Rev. A 102019...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber grommets, and other parts are required but not included with this product.) Refer to Appendix A for detail diagram for the outlet box. Luxier SP34-CEC Rev. A 102019...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP34-CEC Rev. A 102019...
-
Page 5: Technical Data
304.5 mm 220 mm 11.99” 8.66” 1300 mm 51.18” 690 mm 27.17” 630 mm 24.8” 420 mm 16.54” 78 mm 3.07” 185 mm 7.28” 60mm 2.36” * Drawings not to scale. All measurements are approximate * Luxier SP34-CEC Rev. A 102019... - Page 6 (2 AA batteries not included) 08. Locking Nut 09. Locking Nut 10. Hand Shower 11. Hand Shower Cradle 12. Rubber Washers 13. Hand Shower Hose 14. Screw x 4 15. Mounting Bracket x2 16. Wall Anchors x 4 Luxier SP34-CEC Rev. A 102019...
-
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before drilling the tiles, use a small piece of painters tape or masking tape over the drill area. This will prevent dam- 1” ages to the tiles) Luxier SP34-CEC Rev. A 102019... - Page 8 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP34-CEC Rev. A 102019...
- Page 9 With the water running on the shower panel. Press the small button under the digital screen to display current water temperature. The display will automatically shutdown about 18 seconds after the water is turned off. Luxier SP34-CEC Rev. A 102019...
-
Page 10: Operation
7. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP34-CEC Rev. A 102019... - Page 11 NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to provide a visual concept of the shower outlet box to speed up the installation process. All images are copyright to their respective owners.
