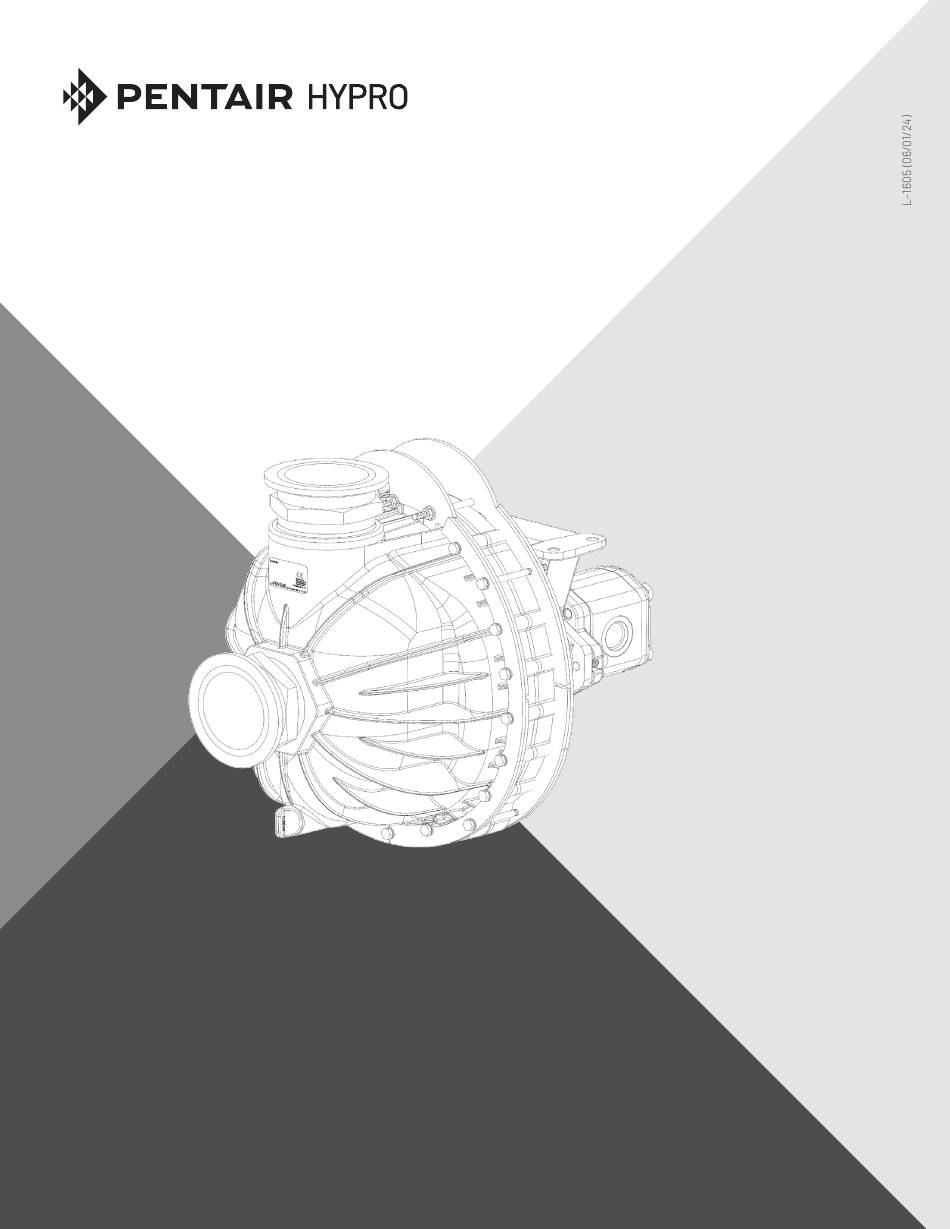

- Page 1 HYDRAULICALLY DRIVEN SELF-PRIMING GTX TRANSFER PUMPS 9343P-GM6Y-SP-004 SERIES INSTALLATION AND OPERATIONS MANUAL pentair.com ©2024 Pentair. All Rights Reserved.
-
Page 2: Table Of Contents
N’essayez pas d’installer votre pompe avant de lire le manuel. Des exemplaires originaux du manuel pour des pompes de Hypro sont fournis en anglais. Pour trouver une copie dans votre langue maternelle pour aller a www.hypro.pentair.com (French). NON tentare di installare la vostra pompa prima di leggere il manuale. Esemplare originale del manuale per Hypro pompe sono in inglese. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Do not pump at pressures higher than the maximum recommended pressure. SAVE THESE INSTRUCTIONS: This manual contains important instructions that should be followed during installation, Maximum liquid temperature is 140o F. operation, and maintenance of the product. Always refer to the Disconnect power before servicing. -
Page 4: General Information
PURPOSE OF MANUAL DO NOT pump water or other liquids intended for Pentair has provided this manual to provide instructions and human consumption. requirements that must be met when installing, operating, and maintaining the pump(s) identified on the cover. - Page 5 GENERAL INFORMATION PRIOR TO HYDRAULIC INSTALLATION PACKAGING DESCRIPTIONS AND UNPACKING INSTRUCTIONS Prior to installation, refer to the tractor or sprayer manual and This pump comes completely assembled. determine what type of hydraulic system is being used. The Hypro centrifugal pumps are shipped in cardboard boxes or ...
-
Page 6: Installation
GENERAL INFORMATION / INSTALLATION TRANSPORT STORAGE All Hypro pumps are capable of being transported by air, sea, New pumps in their boxes can be stored several years as rail or motor vehicle. When the pump is shipped, ensure that the long as the port plugs are not removed. - Page 7 Refer to the standard, to confirm that all components that need to be Pump Selection Guide at www.hypro.pentair.com to confirm you connected to earth are satisfactorily bonded. have the proper pump for your hydraulic system.
- Page 8 INSTALLATION HOOKING UP THE HYDRAULIC MOTOR TO THE TRACTOR oil flow for the hydraulic motor being used (Refer to the Pump HYDRAULIC SYSTEM Selection Guide). Hypro hydraulic motor-driven pumps can be mounted on either This system maintains a constant flow of hydraulic oil for a given the tractor or sprayer.
-
Page 9: Maintenance And Service
MAINTENANCE AND SERVICE MAINTENANCE AND SERVICE MAINTENANCE, ROUTINE SERVICING, AND INSPECTION PRIOR TO SERVICE PREVENTATIVE MAINTENANCE CHECKLIST All maintenance should be done when machinery is stationary and has been isolated from its energy sources. It is dangerous to perform maintenance while machinery CHECK DAILY WEEKLY... -
Page 10: Technical Data
TECHNICAL DATA 9343P-GM6Y-SP-004 - PUMP PERFORMANCE - STANDARD 9343P-GM6Y-SP-004 PERFORMANCE 9343P-GM6Y-SP-004 - PUMP PERFORMANCE - METRIC 9343P-GM6Y-SP-004 PERFORMANCE TECHNICAL DATA TABLE HYDRAULIC MAX FLOW MAX HYD. HYDRAULIC SUSTAINED RATE FLOW HYDRAULIC MAX INLET MOUNTING PRESSURE PORTS CASE DRAIN WEIGHT PUMP (GPM) (GPM) PORTS... -
Page 11: Dimensional Data
DIMENSIONAL DATA L-1605 (06-01-2024) -
Page 12: Repair Parts Index
REPAIR PARTS The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used.Failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective, it should be sent back to Hypro for service. ITEM 28 IS NOT SHOWN. - Page 13 REPAIR PARTS ITEM NUMBER PART NUMBER DESCRIPTION QTY. 0101-1543GTX HOUSING UNI FLANGE GTX 0150-1543P VOLUTE POLY TRANSFER 1543P 0150-1543P IMPELLER 0500-9343 HYD PEDESTAL SHAFT 0750-1543GTX PLATE BACK XFER PUMP GTX 0750-9243A PEDESTAL HOUSING 1410-0091 SLINGER RING 1610-0069 KEY (SQUARE) 1700-0232 FLAPPER VALVE 1720-0230 O-RING...
-
Page 14: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Not primed. Reprime, inspect suction system for air leaks and/or check assembly. Pump takes too long to prime. Check hose and fittings for leaks and correct. Flow through pump completely or partially blocked. Locate and remove obstruction. Attach strainer. Pressure required by system at design flow rate exceeds Compare pump pressure and flow rate against pump performance chart. -
Page 15: Declaration Of Incorporation
EC DECLARATION OF INCORPORATION EC Declaration of Incorporation Manufacturers Name: Pentair Flow Technologies, LLC Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Emission Directive 2010/26/EU and of Parts 1 of Annex I of Machinery Directive 2006/42/EC. -
Page 16: Warranty
Fx: 800.323.6496 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
