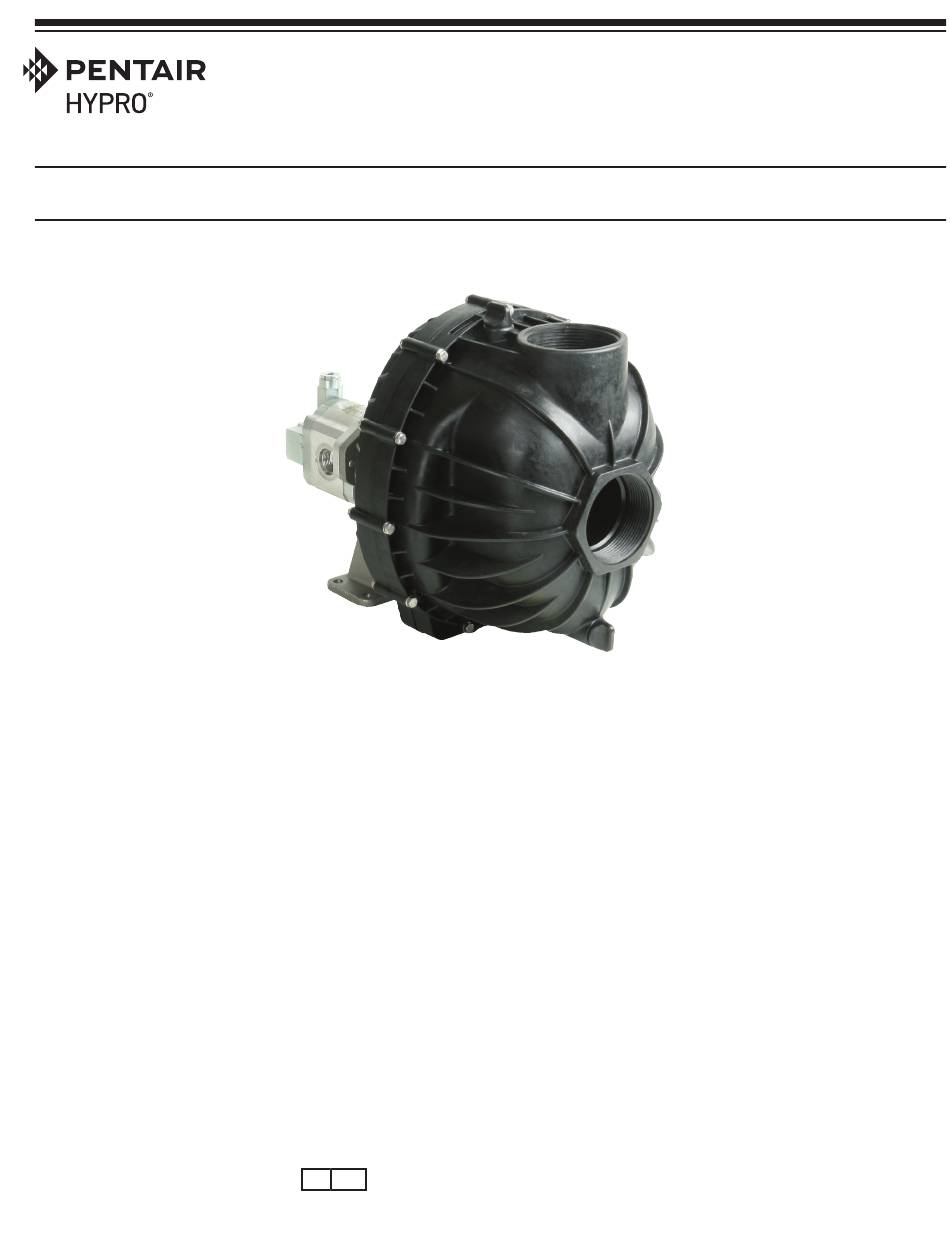

9343P Series Hydraulically Driven, Self-Priming Polypropylene Transfer Pumps
9343P-GM6-SP, 9343P-GM6-USP, 9343P-GM6Y-SP
Close-Coupled, Hyd. Motor-Driven,
Self-Priming Poly Transfer Pump
Max. Flow Rate: ........................................................................... 450 GPM
Max. Pressure: ................................................................................ 52 PSI
Max. Total Head .............................................................................120 FT.
Max. Suction Lift: ..............................................................................25 FT.
Ports: ................................................................................3" NPT Inlet(-SP)
Hydraulic Ports: ...................................................................... SAE-10 Inlet
Hydraulic Flow: ...........................................................................8-11 GPM
Pentair
375 5th Ave. NW, New Brighton, MN 55112
Phone: (651)766-6300 -OR- 800-424-9776 Fax: 800-323-6496
www.hypro.pentair.com
EU Authorized Representative:
9343 Series
Hydraulically Driven, Self-priming
Polypropylene Transfer Pumps
Original Instruction Manual
KEEP FOR FUTURE REFERENCE
3" NPT Outlet(-SP)
3" UF Outlet(-USP)
3" UF Inlet(-USP)
QNET BV Hommerterweg 286
EC
REP
6436 AM Amstenrade, The Netherlands
KvK Zuid-Limburg 14091511
9343P-GM10-SP, 9343P-GM10Y-SP
Max. Flow Rate: ........................................484 GPM
Max. Pressure: ............................................. 58 PSI
Max. Total Head ..........................................134 FT.
Max. Suction Lift: ...........................................25 FT.
Ports: .....................................................3" NPT Inlet
Hydraulic Ports: ...................................SAE-10 Inlet
Hydraulic Flow: ......................................12-16 GPM
SAE-12 Outlet
Hypro Series 9343
Form L-1581 Rev. A 10/18
Close-Coupled, Hyd. Motor-Driven,
Self-Priming Poly Transfer Pump
3" NPT Outlet
SAE-12 Outlet
Advertisement
Table of Contents
Related Manuals for Pentair HYPRO 9343 Series
Summary of Contents for Pentair HYPRO 9343 Series
- Page 1 SAE-12 Outlet Hydraulic Ports: ..............SAE-10 Inlet Hydraulic Flow: ........12-16 GPM SAE-12 Outlet Hydraulic Flow: ................8-11 GPM Pentair 375 5th Ave. NW, New Brighton, MN 55112 Phone: (651)766-6300 -OR- 800-424-9776 Fax: 800-323-6496 www.hypro.pentair.com EU Authorized Representative: QNET BV Hommerterweg 286...
-
Page 2: Table Of Contents
Contents EU Language Manuals ................................3 Introduction .....................................4 Description .................................4 Purpose of Manual ..............................4 Misuses ..................................5 Pump Identification ..............................5 General Safety Information..............................6 Hazardous Substance Alert ............................6 Hydraulic Systems ..............................7 Lifting, Transport, and Intermediate Storage ......................8 Assembly and Installation ...............................9 Assembly ...................................9 Installation .................................9 Operation ................................. -
Page 3: Eu Language Manuals
Hypro sont fournis en anglais. Pour trouver une copie dans votre langue maternelle pour aller a www.hypro.pentair.com (French) NON tentare di installare la vostra pompa prima di leggere il manuale. Esemplare originale del manuale per Hypro pompe sono in inglese. Per trovare una copia nella vostra lingua andare a www.hypro.pentair.com (Italian) Не пытайтесь установить ваш насос до чтения руководства. Оригинальные копии этого руководства для насосы Hypro на английском языке. Найти копию на ваш родной язык перейти к www.hypro.pentair.com (Russian) NO intente instalar su bomba antes de leer el manual. -
Page 4: Introduction
Introduction Description Hypro Self-Priming Polypropylene Transfer Pumps handle big, high-capacity, liquid transfer jobs with ease. Use them for transferring water, liquid fertilizers, and other chemicals compatible with pump materials. Make short work of other farm jobs: filling nurse tanks, watering seedbeds, and transferring liquids. This self-priming model makes it ideal for de-watering applications. Purpose of Manual Hypro has provided this manual to provide instructions and requirements that must be met when installing, using and maintaining the product(s) included in this document. If the product is sold, the seller must pass this manual onto the new owner. The following special attention notices are used to notify and advise, the user of this product, of procedures that may be dangerous to the user or result in damage to the product. -
Page 5: Misuses
Misuses Hypro centrifugal pumps are designed to operate effectively within the specified speed, pressure and environmental ranges. Going outside of these ranges will void the warranty and could cause damage to property, serious injury, or death. • DO NOT run the pump faster than the maximum specified speed. • DO NOT run the pump higher than the maximum specified pressure. • DO NOT run pumps when the liquid has exceeded the maximum or minimum temperature limit (see Intended Uses). • DO NOT pump non-approved liquids. • DO NOT pump water or other liquids for human consumption. •... -
Page 6: General Safety Information
General Safety Information California Proposition 65 Warning -- This product and related accessories contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Notes are used to notify of installation, operation, or 1. Do not pump at pressures higher than the maximum maintenance information that is important but not safety recommended pressure. -
Page 7: Hydraulic Systems
General Information—Hydraulic Systems Hydraulic Pumps Rotor Inner Ring Rotor Hydraulic pumps come in two basic types: • Constant displacement - which will continue to put Gerotor-Type out its rated flow regardless of pressure, until the re- Hydraulic Motor lief valve bypasses the flow. •... -
Page 8: Lifting, Transport, And Intermediate Storage
Lifting, Transport, and Intermediate Storage Packaging Descriptions and Unpacking Instructions • Hypro centrifugal pumps are shipped in cardboard boxes for safe transporting. • When pumps are shipped in large quantities, they may be put on a pallet to allow for easy storage, lifting and handling. -
Page 9: Assembly And Installation
Assembly and Installation Assembly • This pump comes completely assembled. Installation Before attempting to install your Hypro centrifugal pump, it is imperative to read and understand the following: • Installation of a Hypro pump should only be performed by a technician having the knowledge and skills necessary to install the pump without the risk of property damage or injury. • When handling Hypro pumps, one should wear steel-toed shoes and protective gloves in order to protect the feet in the event the pump is dropped and protect the hands from any sharp surfaces on the pump or chemicals. - Page 10 10 microns. The Refer to the Pump Selection Guide at www.hypro.pentair. >10 micron filter should be placed on the return line of the com to confirm you have the proper pump for your hydraulic hydraulic system to mitigate the risk of contaminating the oil system.
-
Page 11: Operation
Operation Open Center Systems - All Models Adjusting Centrifugal Pump Output Adjusting Centrifugal Pump Output 1. Install a shut-off valve and pressure gauge on the dis- charge line for initial setup. 2. Close and lock down the bypass adjusting screw in the 1. Install a shut-off valve and pressure gauge on the dis- hydraulic motor. -
Page 12: Troubleshooting
Troubleshooting Guide PROBABLE CAUSE SYMPTOM PUMP SYSTEM No water delivered Not enough water delivered Not enough pressure Abnormal noise and/or vibration Pump works for a while then stops CAUSE CORRECTIVE ACTION 1. PUMP A. Not primed Reprime, inspect suction system for air leaks and/or check assembly B. Pump takes too long to prime Check for air leaks C. Flow through pump completely or partially blocked Locate and remove obstruction. Attach Strainer D. Internal leakage Check clearances between face of vanes and case. Should not exceed 1/32 E. Loose or broken parts... -
Page 13: Pump Technical Data
Model 9343P Performance Data 9343P-GM6-SP Pump Performance - Standard 9343P-GM6-SP Pump Performance - Metric 9343P-GM10-SP Pump Performance - Standard 9343P-GM10-SP Pump Performance - Metric L-1581 Rev. A (10/18) -
Page 14: Dimension Drawings
Model 9343P Dimensional Drawings Model 9343P-GM6-SP 3" NPT OUTLET 1/2" NPT FILL 2.75 INLET PORT SAE -10 THIS SIDE 3" NPT INLET OUTLET PORT SAE-12 OTHER SIDE 12.60 13.48 6.25 1/2" NPT DRAIN 1.94 3.00 [10.3] 12.6 4X ÿ .41 6.00 6.42 288.3... -
Page 15: Maintenance And Servicing
Maintenance and Servicing Information • All maintenance should be done when machinery is stationary and has been isolated from its energy sources. It is dangerous to perform maintenance while machinery is still connected to its power source. Machinery should be isolated from its electrical, hydraulic or gas engine power source. -
Page 16: Replacement Parts
Replacement Parts 9343P-GM6-SP and 9343P-GM10-SP The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used.Failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective, it should be sent back to Hypro for service. Pedestal Assembly Pedestal Assembly 0751-9343A contains: Ref #... -
Page 17: Declaration Of Incorporation
EC DECLARATION OF INCORPORATION EC Declaration of Incorporation Manufacturers Name: Pentair Flow Technologies, LLC Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Emission Directive 2010/26/EU and of Parts 1 of Annex I of Machinery Directive 2006/42/EC. -
Page 18: Warranty
Please package all returns carefully. All products returned for warranty work should be sent shipping charges prepaid: AMERICAS EUROPE ALL OTHER REGIONS HYPRO / PENTAIR HYPRO EU Ltd. HYPRO / PENTAIR Attention: Service Department Station Road...
