Pentair Hypro 9910-D252 Installation, Operation, Repair And Parts Manual

Installation, Operation, Repair, and Parts Manual
California Proposition 65 Warning -- This product
and related accessories contain chemicals known to the
State of California to cause cancer, birth defects or other
reproductive harm.
Hypro medium pressure diaphragm pumps are
recommended for spraying herbicides, pesticides,
liquid fertilizers, and many other hard-to-handle fluids.
Low-cost maintenance and almost wear-free operation
make these pumps ideal for a wide variety of spraying

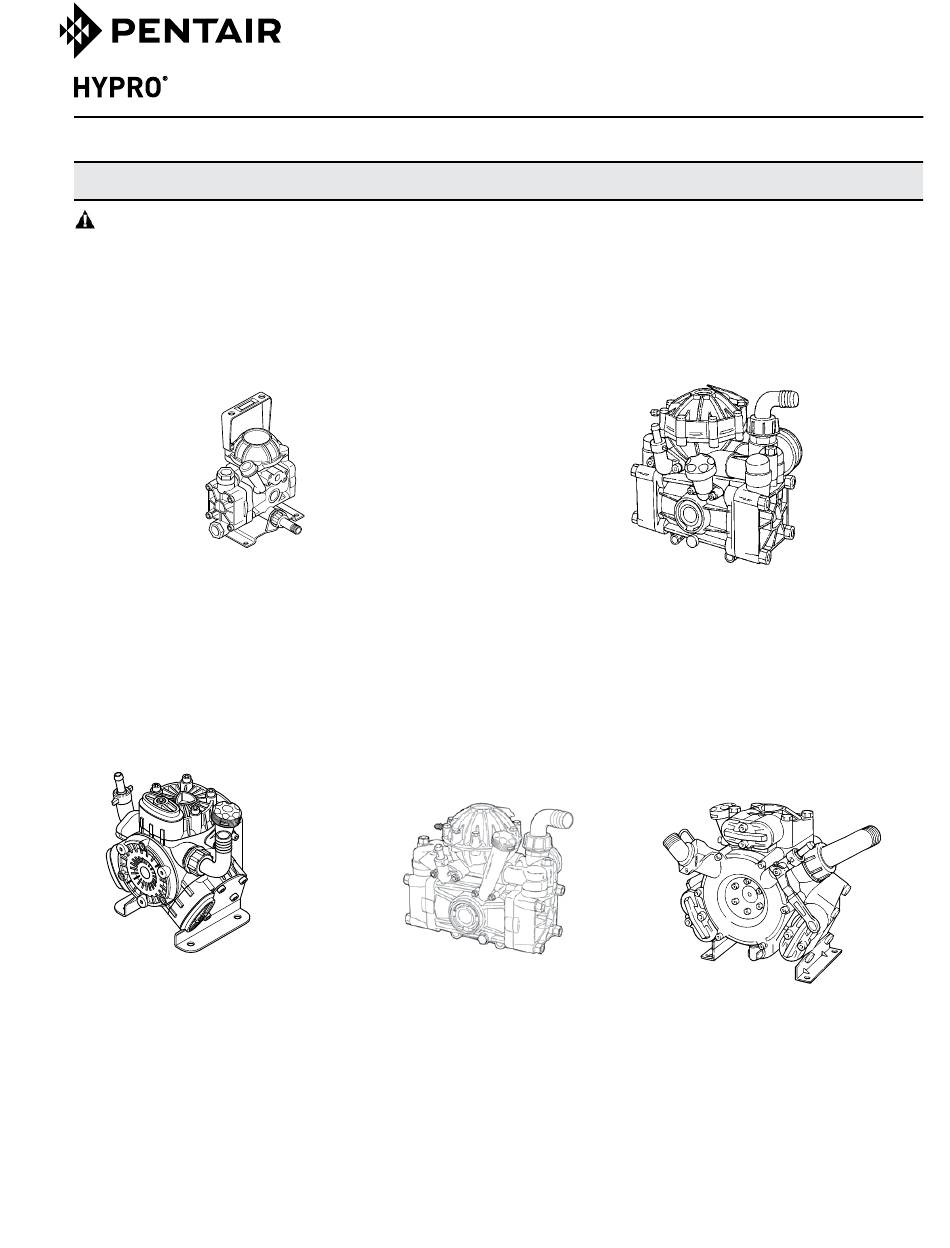

Model 9910-D252
Model 9910-D252GRGI
Model 9910-D252GRGI58
Model 9910-D252GRGIAP
Max flow: 6 gpm
Max pressure: 290 psi
Max speed: 650 rpm (D252)
3600 rpm (D252GRGI)
2 diaphragms
Model 9910-D303
Model 9910-D303GRGI
Model 9910-D403
Model 9910-D403GRGI
Max flow: 7.9 gpm (D303)
10.6 gpm (D403)
Max pressure: 580 psi
Max speed: 550 rpm (D303 & D403)
3600 rpm (D303GRGI & D403GRGI)
3 diaphragms
Medium Pressure
Diaphragm Pumps
Description
jobs. Pressure and output are designed for optimum
performance of small to medium-sized sprayers.
Hypro medium pressure diaphragm pumps can be
adapted for male 1-3/8" splined shaft, female 1-3/8"
splined shaft, 1" solid shaft, or gear reduction drive
options. See kits on page 2. Pumps include a pulsation
dampener except for Models 9910-D303, D403, and
D503.
Model 9910-D50
Model 9910-D50AP-A
Model 9910-D50-B
Max flow: 14 gpm
Max pressure: 580 psi
Max speed: 550 rpm
2 diaphragms
Model 9910-D30
Model 9910-D30AP-A
Model 9910-D30GRGI
Model 9910-D30-B-GRGI
Max flow: 9 gpm
Max pressure: 580 psi
Max speed: 550 rpm (D30)
3600 rpm (D30GRGI)
2 diaphragms
Model 9910-D503
Model 9910-D503GRGI
Max flow: 15 gpm
Max pressure: 580 psi
Max speed: 550 rpm (D503)
3 diaphragms
See page 2 for drive options and control units.
Form L-1382
(10/15, Rev. D)
3600 rpm (D503GRGI)
