Cast Iron, Polypropylene & Stainless Steel Series
Pentair
375 5th Ave., New Brighton, MN 55112
Phone: (651)766-6300 -OR- 800-424-9776 Fax: 800-323-6496
www.hypropumps.com
EU Authorized Representative:
Original Instruction Manual
KEEP FOR FUTURE REFERENCE
Centrifugal Pump
QNET BV Hommerterweg 286
EB
REP
6436 AM Amstenrade, The Netherlands
KvK Zuid-Limburg 14091511
Hypro
9260 Series
Series 9260P, 9262 & 9263
®
Form L-1561
Rev B
Advertisement
Table of Contents
Related Manuals for Pentair HYPRO 9260 Series
Summary of Contents for Pentair HYPRO 9260 Series

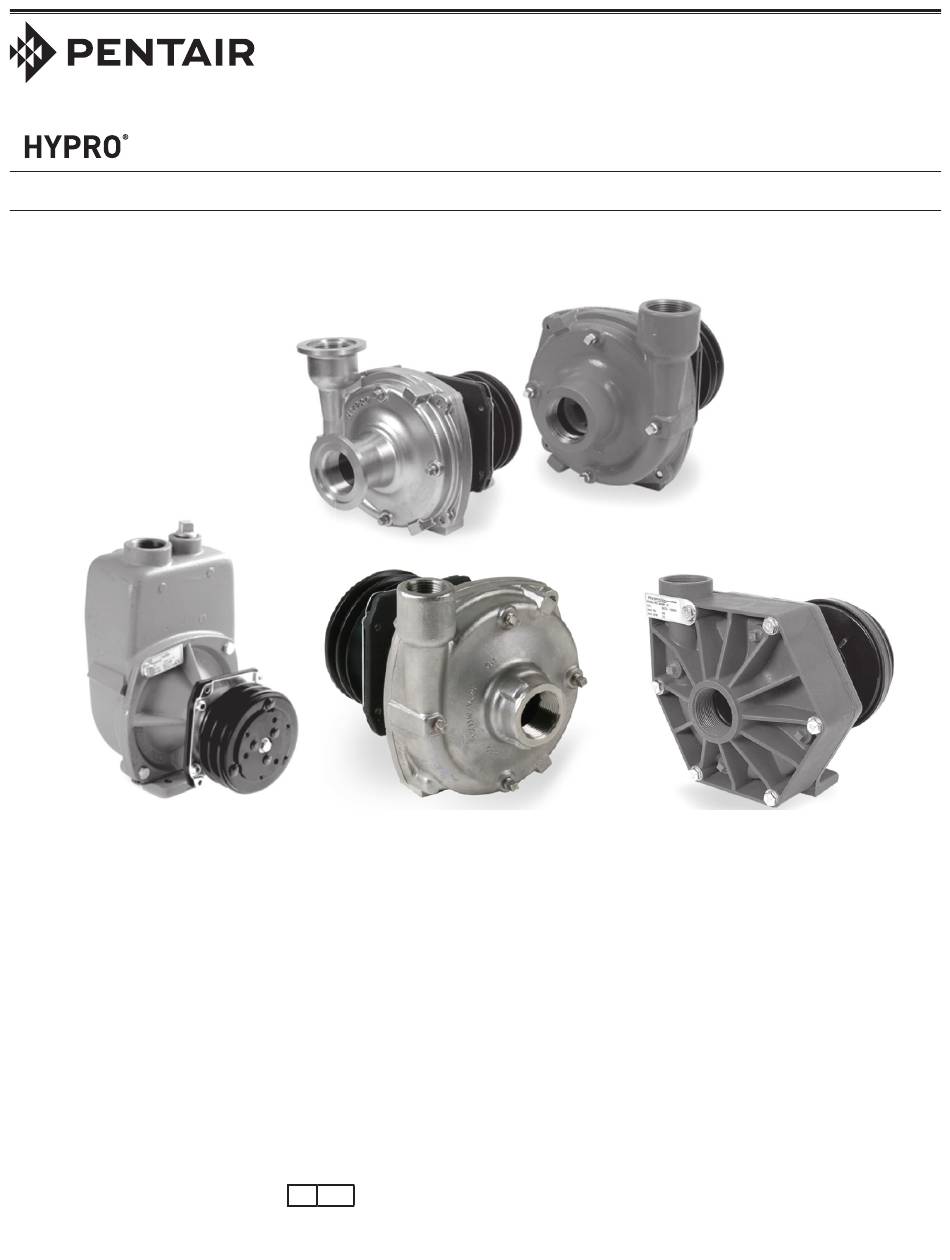

- Page 1 Original Instruction Manual KEEP FOR FUTURE REFERENCE 9260 Series Cast Iron, Polypropylene & Stainless Steel Series Centrifugal Pump Pentair 375 5th Ave., New Brighton, MN 55112 Phone: (651)766-6300 -OR- 800-424-9776 Fax: 800-323-6496 www.hypropumps.com EU Authorized Representative: QNET BV Hommerterweg 286...
-
Page 2: Table Of Contents
Contents EU Language ..................................3 Introduction.................................4 Description..............................4 Intended Uses................................4 Purpose of Manual..............................4 Misuses................................4 Pump Identification..............................5 Pump Technical Data..............................5 Fluid Pumping Application............................10 Tools................................10 Lifting, Transport, and Intermediate Storage......................10 Assembly and Installation................................11 Assembly............................11 Installation............................11 Plumbing Diagram..............................12 Commissioning, Start-Up, Operation, Shutdown........................14 Information.............................14 Start-Up, Operation, Shutdown..........................14 Maintenance and Servicing..............................15 Information..........................15 Dispo sal .. -
Page 3: Eu Language
EU Languages DO NOT attempt to install or operate your pump before reading the manual. Original copies of the manual for Hypro pumps are provided in English. To find a copy in your native language, go to www.hypropumps.com. Vor dem Ablesen des Handbuches versuchen Sie NICHT, Ihre Pumpe zu installieren. Originale des Handbuches fur Hypro-Pumpen werden auf englisch zur Verfugung gestellt. Zu eine Kopie in Ihrer Muttersprache finden, zu www.hypropumps.com zu gehen (German) N’essayez pas d’installer votre pompe avant de lire le manuel. -
Page 4: Introduction
Introduction Description Hypro centrifugal pumps are designed for creating and boosting pressure in fluid circuits. The pump operates by taking in fluid from the inlet port after which it is slung by the impeller and expelled through the outlet port. Construction features include housings, impellers and seals which come in a variety of materials in order to be resistant to a range of chemicals. Standard models of centrifugal pumps rotate clockwise, when looking at the front of the pump. Intended Uses Hypro centrifugal pumps are intended for creating or boosting dynamic pressure in approved fluids. Hypro centrifugal pumps should never be used to pump liquids above 140°F (60°C), or below 34°F (1°C). Any uses outside of those specified in this manual are considered misuses and are prohibited. Contact Hypro technical service about any questions regarding specific acceptable uses. -
Page 5: Pump Identification
Pump Identification Hypro uses serialized labeling to enable users to precisely identify the pump’s manufacturing date. Serial Number: First and second digits: year (14 = 2014) Third through fifth digits: consecutive day of the year the pump was manufactured. Sixth through tenth digits: unique pump serial number. Pump Technical Data (All specifications and performance data are based on water as a carrier fluid) 9262C, 9262C-CR, 9262S-C, 9262S-CR... - Page 6 9262C-C, 9262S-C, 9262C-CR and 9262S-CR Pump Specifications Max Flow Power Mounting Pump Rate (GPM) Pressure (PSI) Max RPM Ports Source Weight Bolts [LPM] [BAR] 9263C-C 1-1/2" NPT inlet 1-1/4" NPT outlet 9263C-CR 23lbs Clutch 5000 3/8" OR M10 220 x 200 [529.9] [7.86] (10.5kg)
- Page 7 9263C-CR-SP, 9263C-CR-SP-B, 9263C-C-SP & 9263S-C-SP Pump Specifications Max Flow Power Rate (GPM) Pressure (PSI) Mounting Pump Source [LPM] [BAR] Max RPM Ports Weight Bolts 9263C-CR-SP 2" NPT Inlet [480.7] 2" NPT Outlet 9263C-CR- 42lbs SP-B Clutch 5000 3/8" OR M10 [7.58] (19.0kg) 9263C-C-SP...
- Page 8 Pump Dimensions Dim. Inch 11.8 299.7 8.10 205.7 4.50 114.3 10.10 256.5 71.1 12.20 309.9 185.4 1.50 38.1 3.00 76.2 - 8 -...
- Page 9 9260P & 9260P-R Pump Dimensions Dim. Inch 211.1 8.31 8.38 212.9 4.19 106.4 4.00 101.6 3.06 77.7 9.45 240.0 4.75 120.7 1.50 38.1 3.00 76.2 Pump Dimensions Dim. Inch 211.1 8.31 8.38 212.9 4.19 106.4 4.00 101.6 3.06 77.7 9.45 240.0 4.75 120.7...
-
Page 10: Fluid Pumping Application
Fluid Pumping Applications Pump Materials Compatibility Impeller Pump Housing Seal Application Cast Silicon Nylon Polypropylene Stainless Polypropylene Ceramic Iron Carbide Weed Control Chemicals Insect Control Brush Control Pest Control Chemicals and Fumigants Liquid Fertilizers Powdered Fertilizers Fluid Transfer Acids Table 1 Flammable liquids, sewage or potable water should never be put through any Hypro pump. -
Page 11: Assembly And Installation
Figure 1 Transport • All Hypro pumps are capable of being transported by air, sea, rail or motor vehicle. When the pump is shipped ensure that the pump is moved in accordance with local and national laws, and is properly secured to prevent unwanted movement which could cause damage to person or property. Prior to shipping all fluids should be removed from the pump. -
Page 12: Plumbing Diagram
• If a rigid plumbing system is to be used on a Hypro centrifugal pump the system must be properly aligned with the inlet and outlet ports. • When installing, adjusting or removing a Hypro centrifugal pump ensure that there are no objects which can fall on the installer and make certain that all machinery to which the pump is to be attached is turned off. • Pumps must be installed in a location where they are accessible for any necessary maintenance. •... - Page 13 Series 9200 Pedestal-Mounted Centrifugal Pumps ▫ Pulley Driven - Mount pulleys as close to pump and motor engine shaft bearings as possible. Check alignment with a straight edge as shown in Fig. 1. ▫ Make sure that belt has proper tension. (Too much tension will cause bearing wear; too little will cause slippage.) Electric Motor Gas Engine Straight Edge See Fig. 2. ▫ Check with belt and pulley sources for specific recommendation. To figure proper diameter of pump pulley, multiply motor/engine rpm by diameter of the motor/engine pulley and divide that figure by desired pump speed. Belt and pulley drive systems are typically used to reduce pump speed. For determining proper pulley sizes, use the formula below as a guideline and use “A”...
-
Page 14: Commissioning, Start-Up, Operation, Shutdown
Commissioning, Start-Up, Operation, Shutdown Before attempting to start your pump the following must be understood and followed to ensure safe operation. Information • When running Hypro centrifugal pumps it is essential that operators use hearing protection as the sound levels can reach levels of 80 decibels. -
Page 15: Maintenance And Servicing
Maintenance and Servicing Information • All maintenance should be done when machinery is stationary and has been isolated from its energy sources. It is dangerous to perform maintenance while machinery is still connected to its power source. Machinery should be isolated from its electrical, hydraulic or gas engine power source. -
Page 16: Troubleshooting
Troubleshooting Before attempting to service your pump be sure that it is disconnected from all energy sources Symptom Probable Cause(s) Corrective Action Pump does not prime Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for obstructions and remove Suction hose stuck to tank Cut a notch or “V” in end of suction hose Clogged strainer Check strainer and clean regularly Low Discharge... -
Page 17: Replacement Parts
Replacement Parts The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used, failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective it should be sent back to Hypro for service. 9262C-C, 9262S-C, 9262S-CR, 9263C-BT, 9263C-C, 9263C-CB, 9263C-CR, 9263C-CR-B, 9263S-C, 9263S-CR, 9263-CU, 9263C-CR-SP,9263C-CR-SP-B,9263C-C-SP, AND 9263S-C-SP NOTE: When ordering parts, give QUANTITY,... - Page 18 Replacement Parts The following drawings show the pumps and their replacement parts. Only genuine replacement parts should be used, failure to follow this warning can result in damage to property, serious injury or death. If the pump malfunctions or is defective it should be sent back to Hypro for service. 9260P-C &...
-
Page 19: Declaration Of Incorporation
EC Declaration of Incorporation Pentair Flow Technologies, LLC Manufacturers Name: Manufacturers’ Address: 375 Fifth Avenue NW, New Brighton, MN 55112, USA Declare that the partially complete machinery described below conforms to applicable health and safety requirements of Parts 1 of Annex I of Machinery Directive 2006/42/EC. This partly completed machinery must not be put into service until the equipment into which it is to be incorporated has been declared in conformity with the provisions of this directive. -
Page 20: Warranty
Contact Hypro Service Department at 800-468-3428 to receive a Return Merchandise Authorization number (RMA#). Returns are to be shipped with the RMA number clearly marked on the outside of the package. Hypro shall not be liable for freight damage incurred during shipping. Please package all returns carefully. All products returned for warranty work should be sent shipping charges prepaid to: HYPRO / PENTAIR Attention: Service Department 375 Fifth Avenue NW New Brighton, MN 55112 For technical or application assistance, call the Hypro Technical/Application number: 800-445-8360, or send an email to: technical@ hypropumps.com.
