ADVANCED SIMRACING ASR6 Assembly And User's Manual page 9

7. Follow the Pedal Tray Assembly section. The Steel pedal tray is
shown, installation is also valid for the aluminium pedal tray.
8.

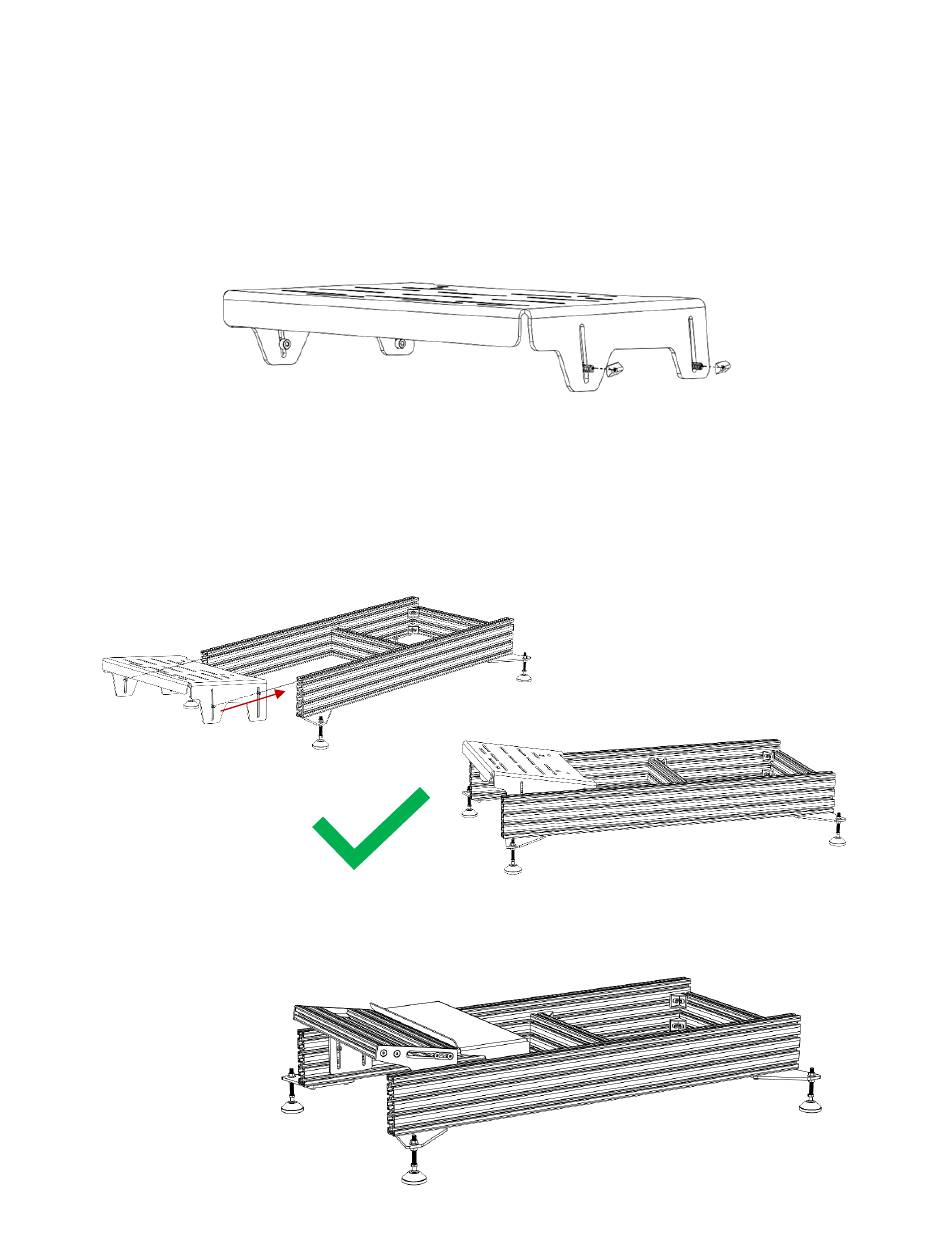

Assemble 4 X M8 X 16 Socket screws and 4X M8 T-Nuts on the pedal tray
sides. Screw in the T-Nuts no more than a turn.
9.
Slide the pedal tray through the 50" Extrusions. Slide through the top slot for the
highest adjustments capabilities, or the bottom slot for the lowest adjustments.
Tighten it snug for the moment, but only fully tighten after positioning your pedals.
If using the aluminium pedal plate, slide the heel rest first in the same
fashion, then the pedal tray.
With the Aluminium pedal tray upgrade kit, you should be at this stage. The
remaining steps are all the same.
7
