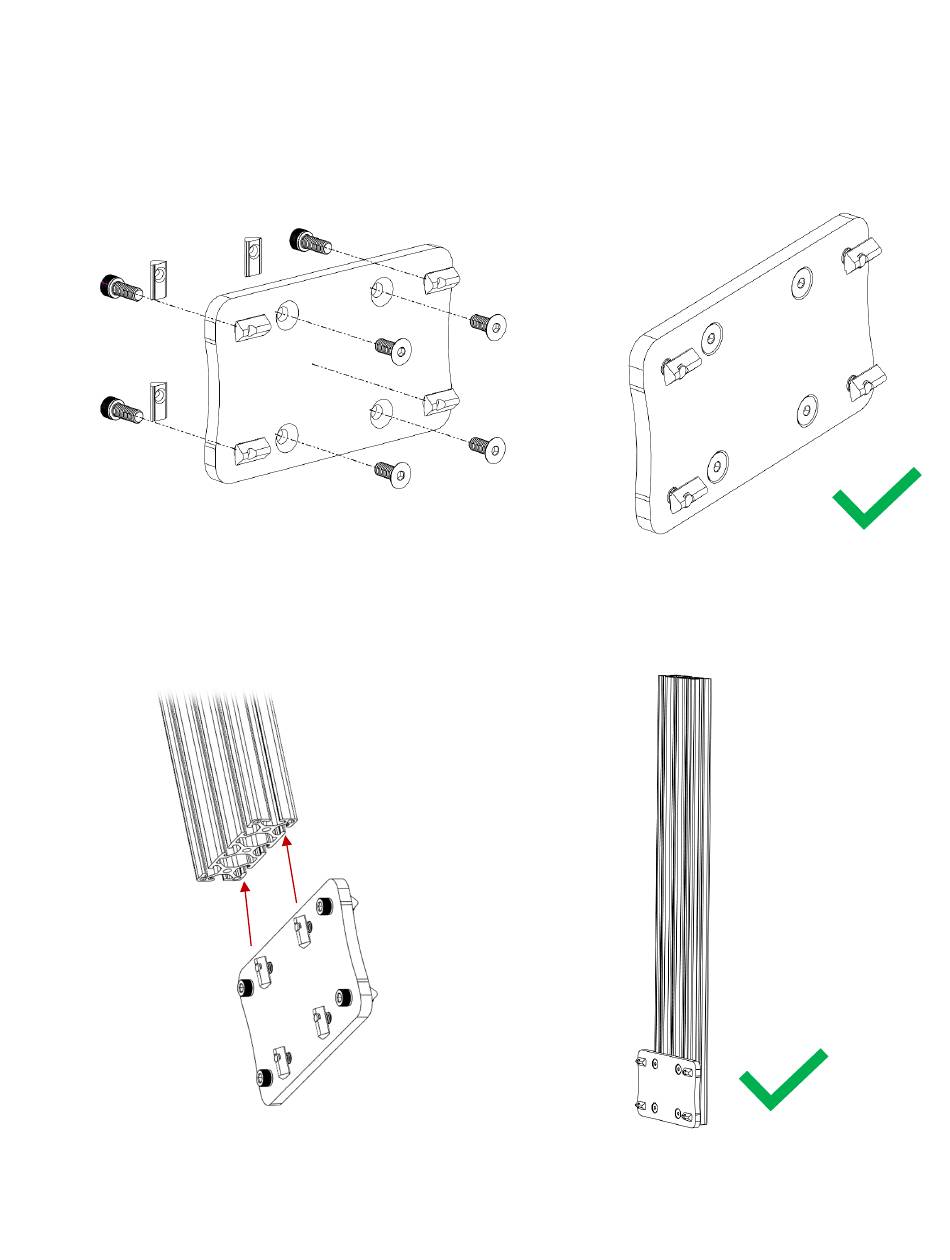

Assemble the up-post plate using 4X M8 X 20 flat head screws through the
conical holes, 4X M8 X 20 socket screws from the opposite side and 8X M8 T-
Nuts. Repeat for both plates.
2X
11.
Slide the plate through the bottom of the 4.5" X 30" extrusion. Repeat for both
30" extrusions. Place flush to the end of the extrusion and tighten the flat head
screws fully.
2X
