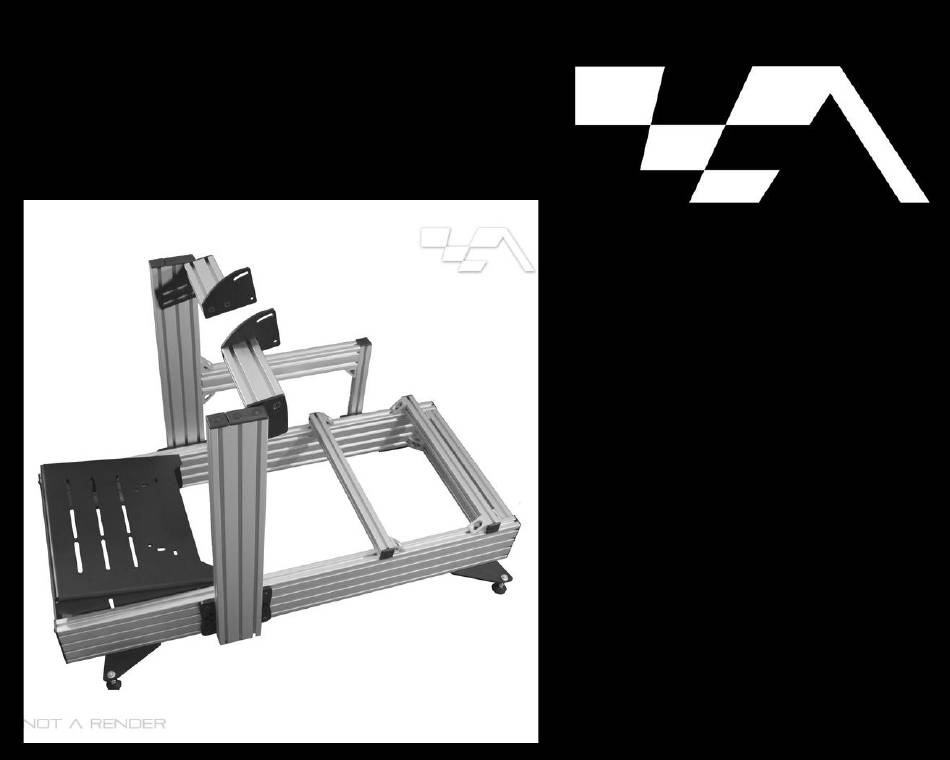

- Page 1 A D V A N C E D S I M R A C I N G ASR6 ASSEMBLY GUIDE...
- Page 2 Tools - measuring tape - allen key 3/16 All the pieces 1x 19" 2x50" Per corner - 2 corner gusset - 4 tnutz and 4 screws...
- Page 3 Slide the "T" into the slot Put screws and t-nutz in corner gusset. leave enough space to slide in aluminum Once everything is aligned , tighten all screws. Do not tighten gusset. slide the 19" bar...
- Page 4 Prepare all 4 legs and plates. Put the screws and t-nutz in the plates and slide them to the desired position. Insert the rubber feet and put the nut to maintain the feet in position Once all for corners are done, flip it over.
- Page 5 insert t-nutz in Time for the the aluminum side posts first Screw the thick plate onto the post...
- Page 6 Insert the t-nutz Screw the post in the first and onto the base at last slot around 16" Here you go!
- Page 7 Don't tighten 2 x 22" seat these right away posts Time for the shifter arm...
- Page 8 Screw the post Screw the upper onto the base aluminum bar Once to the desired position, tighen everything...
- Page 9 Now you can put the plastic end caps...OR... wait till the end as it's a bit more satisfying Time to install the wheel deck...
- Page 10 Slide in the wheel deck For the DD base, install the add-on to your fanatec first then slide in the side posts.
- Page 11 Higher For the pedal plate you can Lower insert the screws in the slot that will fit your desired position. Choose your angle Adjust the pedal plate to your desired position.
- Page 12 Install the "A" end plate when pedal plate is installed. (no pedal plate on picture for explanation purposes )
