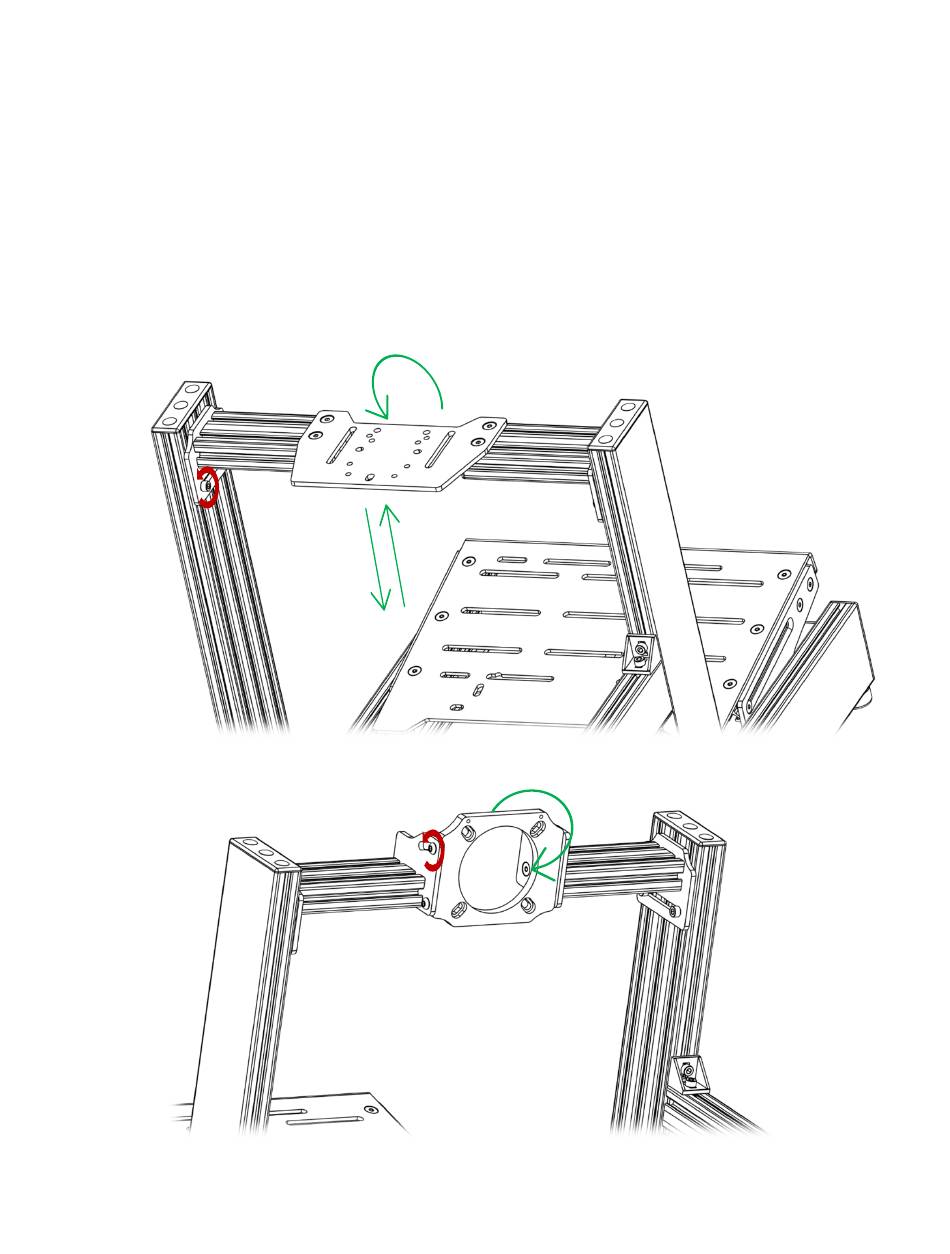

Wheel deck adjustment
The standard wheel deck can be adjusted using the Up Post brackets. With your
wheel installed, loosen 3 out of the 4 screws and place yourself in the rig. Slowly
loosen the last screw until you feel the wheel deck moving. It will most probably
drop with the weight of the wheel so be careful! You can then place the wheel
according to your preference in height and angle and tighten when the position is
satisfactory.
The direct drive mount can be adjusted the same way, plus some angle on the
base itself.
23
