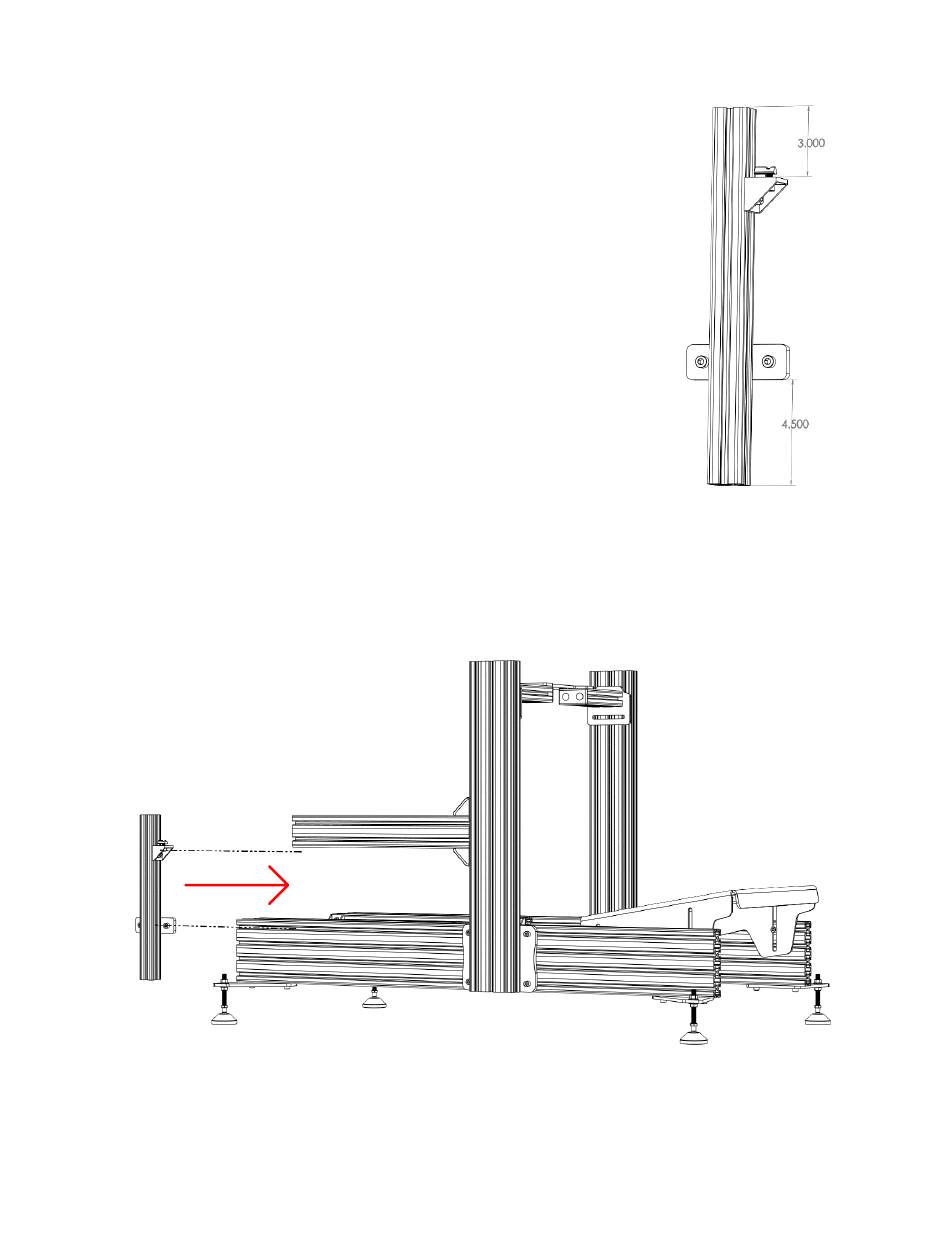

Attach the shifter arm bracket to the 1.5" X 16" extrusion.
Tighten at 4.5" from the end of the extrusion. Then prepare
and place a corner gusset at 3" from the other end on the
extrusion, as shown. Tighten fully to the extrusion.
27.
Slide the corner gusset through the bottom of the 3" X 19" extrusion and the
shifter bracket through the highest side slot of the 4.5" X 50". Tighten fully.
Tighten the 2 corner gussets attached to the up-post as well.
