Summary of Contents for Poly Studio G62
- Page 1 Poly Studio G62 User Guide SUMMARY This guide provides the end-user with task-based user information for the named product.
- Page 2 Legal information Copyright and license Privacy policy Open source software used in this product © 2024, HP Development Company, HP complies with applicable data privacy This product contains open source L.P. The information contained herein is and protection laws and regulations. HP software.
-
Page 3: Table Of Contents
Connect a USB camera to the Poly Studio G62 system ................. 9 Connect a Poly Studio E70 as an IP camera to the Poly Studio G62 system..........10 Connect a 3.5mm audio output device to the Poly Studio G62 system ............10 Connect a USB audio DSP to your Poly Studio G62 system................ - Page 4 Locate the System IP Address Using a Paired TC8 or TC10 Touch Controller..........18 Locate the System Serial Number ........................ 19 Locate the Serial Number On Your Poly Studio G62 ................19 6 Getting help ..............................20 HP Inc. addresses............................20...
-
Page 5: 1 About This Guide
Audience, purpose, and required skills This guide is intended for beginning users, as well as intermediate and advanced users, who want to learn more about the features available with the Poly Studio G62 system. Icons used in Poly documentation This section describes the icons used in Poly Documentation and what they mean. -
Page 6: 2 Getting Started

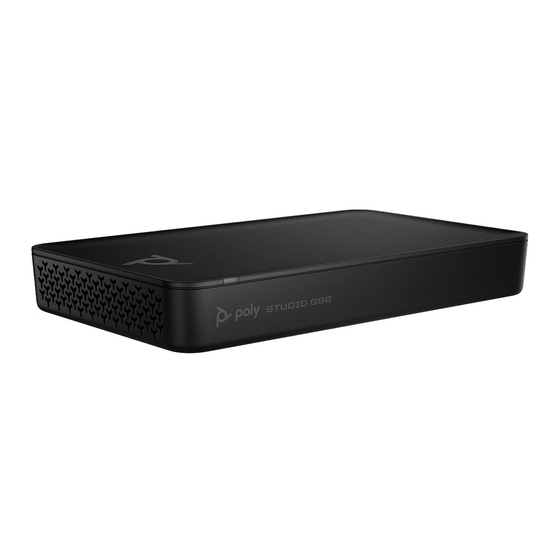

Poly Studio G62 is designed with simplified mounting and PoE+ power, so you can place it behind a display, under a table, or in an AV rack. The Poly Studio G62 system supports Poly audio and video products over IP LLN as well as Poly and third-party products over USB. - Page 7 Connects a secondary monitor. HDMI 1 Connects a primary monitor. LLN port Connects IP peripherals such as a Poly IP microphone or Poly IP camera. This port doesn’t provide power. A PoE switch or PoE injector is required to power IP peripherals connected to the LLN port.
-
Page 8: Poly Studio G62 Led Behavior
Poly Studio G62 LED behavior Use the LED on the front left corner of the Poly Studio G62 system to get information on the state of your system. Table 2-2 Poly Studio G62 LED Behavior Indicator Status Blinking white Powering on... -
Page 9: Connecting Ip Peripherals To The Poly Studio G62 Lln Port
Ethernet connection to the corporate network. PoE+ class 4 power injector. Connect the PoE+ LAN port on the Poly Studio G62 system to the Out port on the PoE+ power injector. Connect the In port on the PoE+ power injector to a network Ethernet port. - Page 10 Don't connect IP devices that require network access to the LLN port. Devices that require network access include Poly TC10, Poly TC8, and Poly Trio C60. To connect IP peripherals, use a CAT5e, CAT6, or CAT7 direct STP Ethernet cable. The cable ●...
-
Page 11: 3 Hardware Installation
Mounting your Poly Studio G62 system You can mount the Poly Studio G62 using the supplied magnetic feet or the optional magnetic plate. For information on mounting your Poly Studio G62 system, see the Poly Studio G62 Optional Mounting... -
Page 12: Connect Monitors To The Poly Studio G62 System
Connect one end of the HDMI cable to HDMI port 1 on the primary monitor. Connect the other end of the HDMI cable to the HDMI 1 port on the Poly Studio G62 system. Connect a second monitor to the HDMI 2 port on the Poly Studio G62 system. -
Page 13: Connect Ip Microphones To The Poly Studio G62 System
At startup, use the out of box setup wizard to pair the Poly TC10 or Poly TC8 to your Poly Studio G62 system. If you're setting up a new system, you can use the Poly TC10 or Poly TC8 to out of box the touch controller and the system at the same time. -
Page 14: Connect A Poly Studio E70 As An Ip Camera To The Poly Studio G62 System
Using the USB cable that shipped with your camera, connect the camera to an available USB-A port on the Poly Studio G62 system. When the Poly Studio G62 system starts, the camera displays in the system web interface under General Settings > Device Management under Connected Devices. -
Page 15: Connect A Usb Audio Dsp To Your Poly Studio G62 System
The system saves your changes automatically. Pairing a Poly Trio C60 speakerphone to the system You can use a Poly Trio C60 speakerphone as a controller and audio device with a Poly Studio G62, Poly Studio G62 system. NOTE: You can’t use a Poly Trio C60 speakerphone if your system is connected to Wi-Fi as the... -
Page 16: 4 Setting Up The Poly Studio G62 System
Review the network and regional details, then select the right arrow. Select Room Controller and select the right arrow. The Poly TC10 or Poly TC8 searches for the Poly Studio G62 system in the out of box state and displays the results. - Page 17 Use the system IP address to select your Poly Studio G62 system from the results and select the right arrow. Alternatively, select Manually Connect to a Room and enter the Poly Studio G62 system IP address. If the room requires further authentication, the Poly Studio G62 system display shows a collection of shapes.
-
Page 18: 5 Using The Poly Studio G62 System
Using the Poly Studio G62 system After connecting peripherals and powering on your Poly Studio G62 system, you can begin using the system with your chosen conferencing provider. Configuring your Poly Studio G62 system You can configure your Poly Studio G62 system using multiple options. -
Page 19: Using Device Mode
Connect an Alt DP capable USB Type-C computer port to the USB Type-C port on the Poly Studio G62 system to use a single cable for Device Mode or sharing content. Poly Studio G62 Alt DP mode supports the following cable for Alt DP: USB Type-C 1.83 m (6 ft.) cable, part number L07087-002... -
Page 20: Updating Software In The System Web Interface
For systems using the Microsoft Teams Rooms application. Selecting this disables other update controls on the page. Provisioning Server Receive updates from a provisioning service, such as Poly Clariti Manager. If you download software from a Custom Server URL, enter the path to the software build folder on your network in the Update Server Address field. -
Page 21: Manually Update Software
Registering the System with Poly Lens Poly Lens provides cloud-based management and insights for your system. You can register your system with Poly Lens during system setup or on the Poly Lens registration page. For more information, see Poly Lens Help. -
Page 22: Locate The System Ip Address Using The System Monitor And A Usb Mouse
Locate the System IP Address Using the System Monitor and a USB Mouse If you don't have a touch monitor, remote control, Poly TC8 or Poly TC10 touch controller paired to your system, you can use a USB mouse to identify the system IP address. -
Page 23: Locate The System Serial Number
Do one of the following: In the system web interface, go to Dashboard > System Detail. ● On a paired Poly TC8 or Poly TC10 device, go to Menu > Settings > Connected Room ● System. Locate the printed serial number on the bottom or rear of your system. -
Page 24: 6 Getting Help
Getting help Poly is now a part of HP. The joining of Poly and HP paves the way for us to create the hybrid work experiences of the future. Information about Poly products has transitioned from the Poly Support site to the HP Support site. - Page 25 Document part number: P03703-001 Last update: June 2024 Email us at documentation.feedback@hp.com with queries or suggestions related to this document. Document information...
