ROOM PREPARATION GUIDE

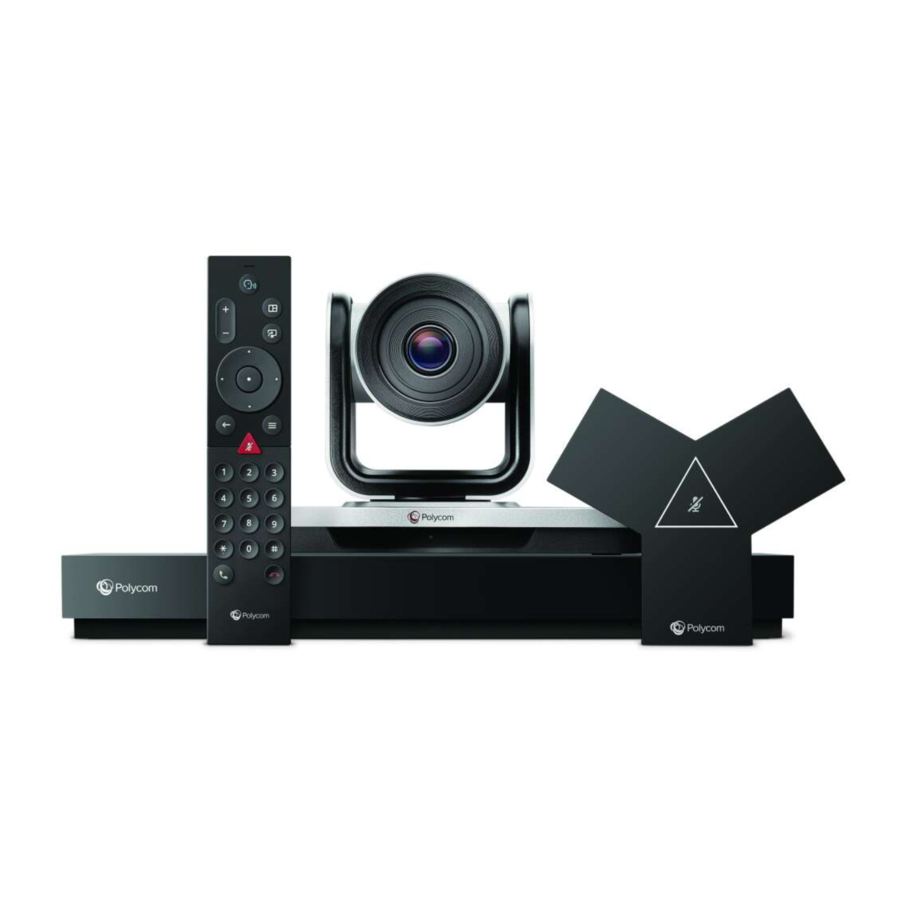

Poly G7500
PLANTRONICS + POLYCOM
NOW TOGETHER AS POLY
3.3.0 | January 2021 | 3725-85910-004A
GETTING HELP
For more information about installing, configuring, and administering
Poly/Poly products or services, go to the
Plantronics, Inc. (Poly – formerly Plantronics and Poly)
345 Encinal Street
Santa Cruz, California
95060
© 2021 Plantronics, Inc. All rights reserved. Poly, the propeller
design, and the Poly logo are trademarks of Plantronics, Inc. All other
trademarks are the property of their respective owners.
Poly Online Support
Center.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G7500 and is the answer not in the manual?

Questions and answers

Related Manuals for Poly G7500

Summary of Contents for Poly G7500

  • Page 1 Santa Cruz, California 95060 © 2021 Plantronics, Inc. All rights reserved. Poly, the propeller design, and the Poly logo are trademarks of Plantronics, Inc. All other trademarks are the property of their respective owners. PLANTRONICS + POLYCOM NOW TOGETHER AS POLY...

  • Page 2: Table Of Contents

    HDCI Polycom EagleEye Producer Camera Digital Cable Adapter ..............13 HDCI Adapter for Polycom EagleEye Director II ....................13 Audio Cables ............................13 Poly IP Ceiling Microphone Array Drop Cable ....................14 Polycom Shielded Plenum Crossover Cable ....................14 Poly IP Table Microphone Cable ........................14 RealPresence Group Microphone Array Walta-Walta Cable ................

  • Page 3: Introduction

    G7500 systems and other Poly products. Layout Diagrams Use the following diagrams as examples for setting up a conference room with Poly G7500 systems. Poly recommends that you contract an experienced contractor to ensure all the components operate as a single cohesive system.

  • Page 4: Small Conference Room

    Poly G7500 | Room Preparation Guide 3.3.0 Small Conference Room Small Conference Room Number Description Poly G7500 System with single display and EagleEye IV camera Poly IP Table Microphone Physical whiteboard Poly, Inc.

  • Page 5: Small Conference Room With Poly Medialign

    Poly G7500 | Room Preparation Guide 3.3.0 Small Conference Room with Poly Medialign Small Conference Room with Poly Medialign Number Description Poly G7500 system with Poly Medialign 75” display and EagleEye Director II camera Poly IP Table Microphone Physical whiteboard Poly, Inc.

  • Page 6: Medium Conference Room

    Number Description Poly G7500 system with dual displays and EagleEye IV, EagleEye Producer, or EagleEye Director II camera Or a Poly G7500 system with Poly Medialign 75” display and EagleEye Director II camera Poly IP Table Microphone Acoustic-quality drapes Poly, Inc.

  • Page 7: Large Conference Room

    Poly IP Ceiling Microphone Touch-enabled controller Poly G7500 system with dual displays and EagleEye IV, EagleEye Producer, or EagleEye Director II camera Or a Poly G7500 system with Poly Medialign dual 75” displays and EagleEye Director II camera Poly, Inc.

  • Page 8: Classroom

    G7500 system Poly G7500 system with dual displays and an EagleEye Producer or EagleEye Director II camera Or a Poly G7500 system with Poly Medialign dual 75” displays (which includes an EagleEye Director II camera) Cascaded EagleEye Director II camera...

  • Page 9: Monitor Options

    Poly G7500 | Room Preparation Guide 3.3.0 Monitor Options The Poly G7500 system is available in single- or dual-monitor configurations. We recommend that you set up the system in the dual-monitor configuration. Monitors can be touch enabled for an enhanced experience.

  • Page 10: Cables

    This section includes information about the network cables you can use with your G7500 system. CAT 5e LAN Cable This cable connects the G7500 system to the LAN. It has orange RJ-45 connectors on both ends. It meets category 5e requirements and is wired according to EIA/TIA-568B. The maximum approved length for this cable is 100 m (328 ft) on an 802 network.

  • Page 11: Hdmi Monitor Cable

    Poly G7500 | Room Preparation Guide 3.3.0 HDMI Monitor Cable This cable connects the G7500 system HDMI output to an HDMI monitor. It’s male HDMI to male HDMI. HDMI Monitor Cable Length Part Number RoHS Compliant 1.8 m (6 ft)

  • Page 12: Eagleeye Digital Extender Cable

    Poly G7500 | Room Preparation Guide 3.3.0 • EagleEye IV to EagleEye Digital Extender EagleEye Digital Extender Cable Use the EagleEye Digital Extender for cable runs longer than 3 m (9.8 ft). Use the guidelines and recommendations in this section when installing the EagleEye Digital Extender.

  • Page 13: Hdci Polycom Eagleeye Iv Camera To Polycom Eagleeye Producer Digital Cable

    1696-69473-001 Audio Cables This section includes information about the audio cables you can use with your G7500 system. IP microphones don’t need special audio cables and connect directly to the G7500 system with LAN cables. Use audio cables to connect non-IP microphones to a Polycom Microphone IP Adapter. Use a LAN cable to connect the microphone adapter to the G7500 system.

  • Page 14: Poly Ip Ceiling Microphone Array Drop Cable

    Part Number RoHS Compliant 15.2 m (50 ft) 2457-85361-001 Poly IP Table Microphone Cable Use this cable to connect a table microphone to a G7500 system. It’s male RJ-45 to male RJ-45. Table Microphone Cable Length Part Number RoHS Compliant 7.62 m (25 ft)

  • Page 15: Polycom Eagleeye Director Ii Rca Audio Breakout Cable

    Polycom EagleEye Director II RCA Audio Breakout Cable Use this cable to connect a G7500 system to the Polycom EagleEye Director II camera and the room audio playback system. It’s dual male RCA connectors (used with the EagleEye Director II dual stereo adapter for the G7500 codec) a 3.5 mm male connector (for the EagleEye Director II) and dual female...

  • Page 16: Straight-Through Cable

    3 m (9.8 ft) 2457-63542-001 Straight-Through Cable Use this cable to connect a G7500 system to a serial device. It has a DB-9 connector on each end. The maximum approved length is 30 m (100 ft). Recommendation for Use Poly doesn’t recommend using this straight-through serial cable for RS-232 communication from a computer, Creston system, or AMX device.
