Summary of Contents for iWeld GORILLA SUPERPULSE 200

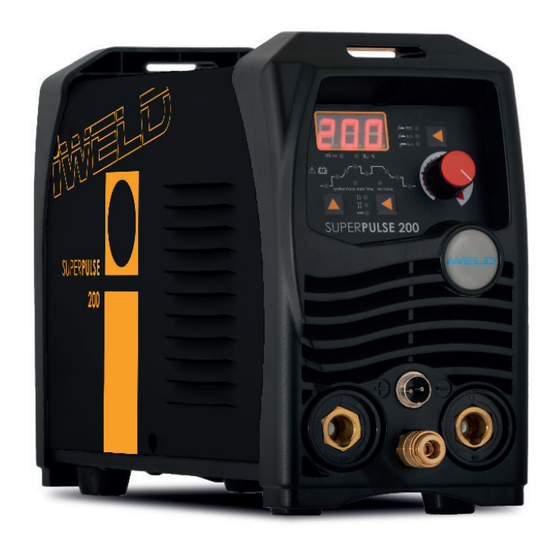

- Page 1 CUTTING EDGE WELDING USER’S MANUAL TIG/MMA dual function DC pulse welding inverter GORILLA SUPERPULSE 200...
- Page 2 INDEX INTRODUCTION WARNING MAIN FEATURES AND PARAMETERS INSTALLATION OPERATION WELDING PARAMETERS AND DIAGRAMS TROUBLESHOOTING CAUTIONS AND MAINTENANCE...
- Page 3 Introduction First of all, thank you for choosing an IWELD welding or cutting machine! Our mission is to support your work with the most up-to-date and reliable tools both for DIY and industrial application. We develop and manufacture our tools and machines in this spirit.
- Page 4 WARNING! Welding is a dangerous process! The operator and other persons in the working area must follow the safety instructions and are obliged to wear proper Personal Protection Items. Always follow the local safety regulations! Please read and understand this instruction manual carefully before the installation and operation! •...
-
Page 5: Main Features And Parameters
Main Features and Parameters SUPERPULSE 200 8TIG200SPUL Art. Nr. IGBT Inverter type Digital display Plastic case Reverse Polarity - FCAW 2T/4T Number of Wire Feeder Rolls Arc ignition DC TIG Pulse DC TIG AC AWI Pulse AC TIG ... -
Page 6: Installation Place
2. Installation 2-1. Installation Place Place the welding machine in the rainproof Any conductive foreign object can not enter room with no direct sunshine, low humidity the welding power supply! and little dust! (room temperature 10 C -40 Keep the welding power supply over 20 cm Conduct the welding at the place without away from the wall! wind (use the wind shield, etc.)! - Page 7 2-3. Front and Rear Panel Structure and Description Shield gas output connector Power source input Negative output terminal Power switch TIG Torch connector Shield gas input joint Positive output terminals - AC and DC 2-4. Installation in TIG mode Workpiece is connected to the positive electrode of welding machine, and welding torch is connected to the negative electrode, which is called...
-
Page 8: Control Panel
2-5. Installation in MMA mode MMA: Choosing the connection of DCEN or DCEP according to the different elec- trodes. Please refer to the electrode man- ual. 3. Operation Instruction 3-1. Control Panel... - Page 9 1 Current/parameter display 2 Function key 1 3 Function key 2 4 Adjustment knob 5 Welding mode 6 TIG with pulse 7 TIG DC 8 MMA 9 2T operation mode 10 4T operation mode 11 Spot welding 12 Base current 13 Welding current 14 Up-slope time 15 Start current...
-
Page 10: Duty Cycle Curve
3-2. Operation in MMA mode - Connect the output cables - Turn on the welding machine to the power switch, the fan starts to work! - Select the mode to switch to MMA. - Set the desired welding current according to the welding task. - Start the work. - Page 11 Welding Workmanship Parameter Reference Values 4-1. TIG Welding Workmanship Parameters Workpiece Types of Weld 4-2. Common MMA Welding Workmanship Parameters Eleectrode...
-
Page 12: Troubleshooting
4. Troubleshooting The following operation requires professional knowledge on electric application and comprehensive safety knowledge. Operators should be licensed with related qualifi - cation certifi cates (still in validation) which can prove their skills and knowledge. Make sure the power supply is cut off before uncovering the welding machine. Common Malfunction Analysis and Solution The failures listed below may be related to your accessories, gas, working environment, power supply condi- tions. - Page 13 Alarm Codes and Solutions Type Alarm Error code Machine Reason Solution reaction Overheating Overheat indi- Temporary Overloading Do not power off; re- cator lights up close of main circuit start welding when the and there is main circuit overheat indicator stop alarm sound lighting up.
-
Page 14: Safety Requirements
Precautions Workspace 1. Welding equipment free of dust, corrosive gas, non-fl ammable materials, up to 90% humidity for use! 2. Avoid welding outdoors unless protected from direct sunlight, rain, snow, work area tempera- ture must be between -10 °C and +40°C. 3. - Page 15 GORILLA SUPERPULSE 200 TIG/MMA dual function DC welding inverter...
