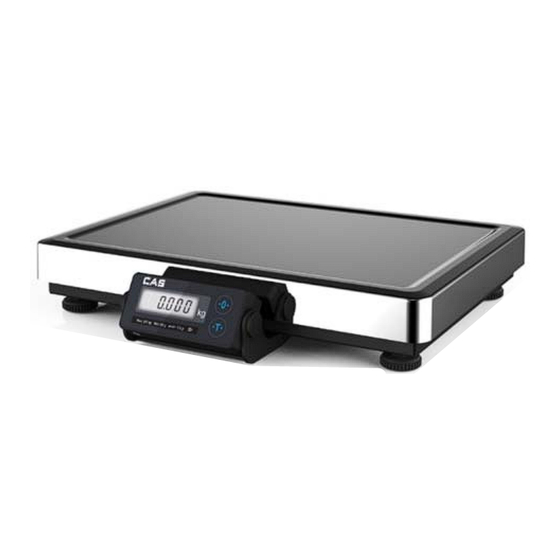

  • Page 1 CAS ELECTRICS CO.,LTD PDC Series Service Manual (English) 2017. 05. 19...

  • Page 2: Table Of Contents

    CAS ELECTRICS CO.,LTD Table of Contents 1. Introduction ........................3 1.1. Preface ........................3 1.2. Precaution ........................ 3 2. Classification ........................4 2.1. Overall View ......................4 2.2. Specifications ......................5 2.3. Display & Key ......................6 2.3.1. Display ............오류! 책갈피가 정의되어 있지 않습니다.

  • Page 3: Introduction

    1. Introduction 1.1. Preface Thank you for purchasing of our CAS scale. This scale has been designed with CAS reliability, under rigid quality control and with outstanding performance. WE hope that your departments enjoy with high quality of CAS product.

  • Page 4: Classification

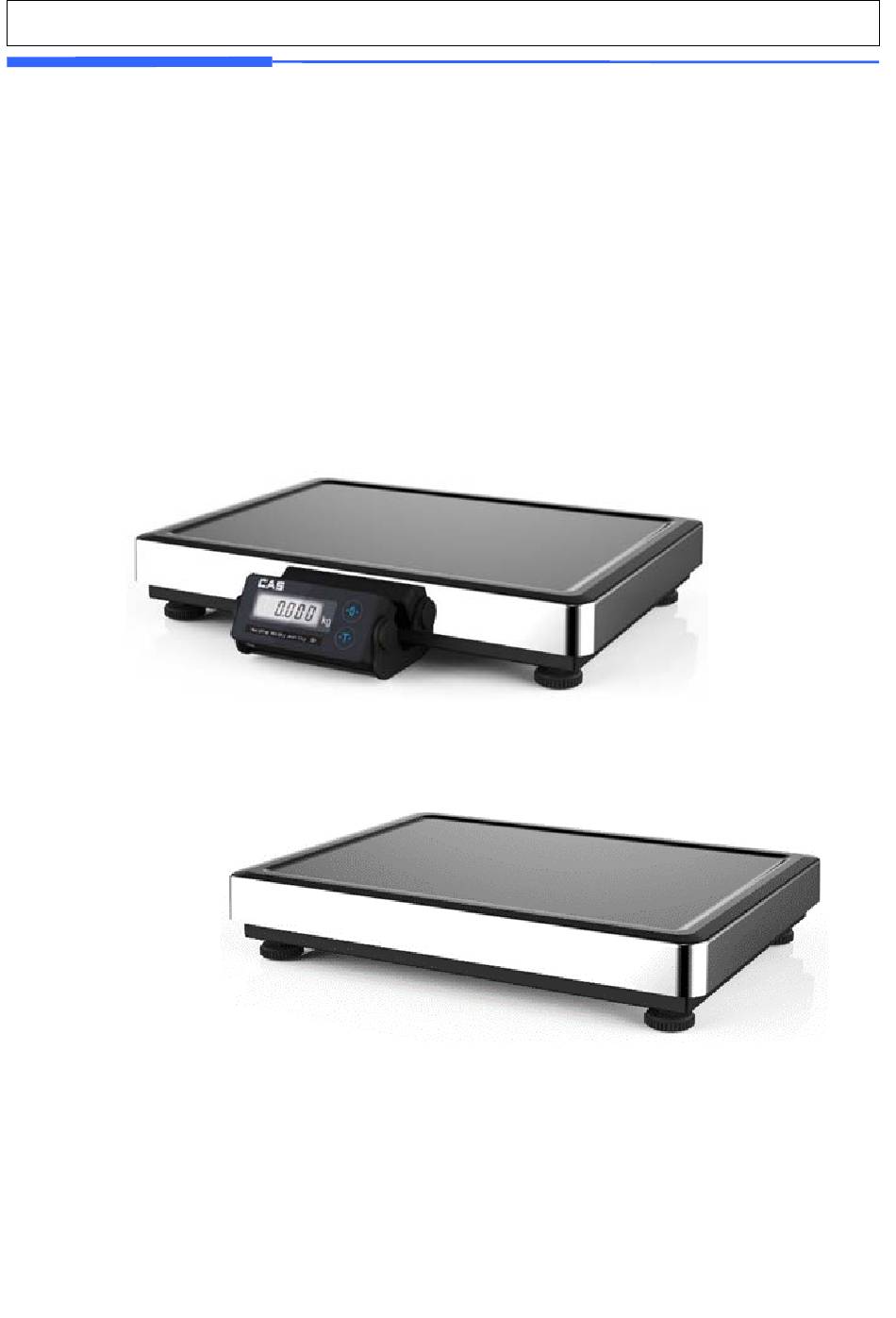

    CAS ELECTRICS CO.,LTD 2. Classification 2.1. Overall View ◆ I/O PORT Remote Display RS-232 POWER DC 6V ON/OFF S/W...

  • Page 5: Specifications

    CAS ELECTRICS CO.,LTD 2.2. Specifications MODEL : PDC Model PDC-S PDC-D Dual Interval Single Dual Interval Single Dual Interval Single Capacity Max 3/6kg Max 6kg Max 6/15kg Max 15kg Max 15/30kg Max 30kg e=2g e=5g e=10g e=1g e=2g e=5g e=1/2g...

  • Page 6: Display & Key

    CAS ELECTRICS CO.,LTD 2.3. Display & Key 2.3.1. Key Function KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare.

  • Page 7: Calibration

    CAS ELECTRICS CO.,LTD 3. Calibration 3.1. Calibration Mode PDC supports two calibration mode. Cal mode 1: 3 – Point Calibration Cal mode 2: One Point Calibration Mode 3.1.1 Cal mode 1. (1) Pressing and holding “Calibration Switch” press power on/off switch. It displays “0”...
  • Page 8 CAS ELECTRICS CO.,LTD 15000.5 single 1/30000 30000 dual 5/10 1/3000 30010 single 1/3000 30 kg 30005 single 1/6000 30002 single 1/15000 30001 single 1/30000 (2) Press [TARE] to display “C-line”. (3) Press [ZERO] key and then it displays “zero” message.
  • Page 9 CAS ELECTRICS CO.,LTD (10) Press [ZERO] key and then, the display will show all the segments and count up "9" to "0". 3.1.2. Parameter Setting After pressing the [ZERO] key and [TARE] key Power ON the display is as follows. Press [ZERO] key Parameter Setting Mode.
  • Page 10 CAS ELECTRICS CO.,LTD 3.3. Unit Change Settings Power On display will show all the segments and count up "9" to "0", press the [TARE] key you can change the user settings. Press [TARE] key, and move digits (digit shift) is possible, pressing the [ZERO] key to increase the number.

  • Page 11: The Schematics And Diagram

    CAS ELECTRICS CO.,LTD 4. The Schematics and Diagram 4.1. System Block Diagram 4.2. Circuit Diagram Please call your CAS dealer. 4.3. PC to Scale Communication PC Command PDC Scale “Z” Used to set the zero point. “T” Used to input or cancel the weight of tare...
  • Page 12 Stable Mode 2 (Transfer data whenever the weight is stable) Continue Mode (Continuously transfer data) Command Mode (Command transfer Mode : CAS 10 byte) Command Mode (Command transfer Mode : CAS 22 byte) Continue Mode 1 (Continuously transfer data starting with...
  • Page 13 (Continuously transfer data) 0.195kg 0.195kg 0.195kg 0.195kg 4-3-4. CAS-10 Protocol (Command Mode) SIGN BCC = Exclusive OR Sum Start Command : SOH = 01h , STX = 02h DATA : STA = Stable – 53h , Unstable – 55h SIGN = 20h (+) , 2Dh (-) End Command : ETX = 03h , EOT = 04h 4-3-5.
  • Page 14 CAS ELECTRICS CO.,LTD 4-3-6. RS-CN1 Protocol(Continue Transmission) Start Command : 0Ah ,0Dh Space : Sp – 20h Data : W5~W1 – Weight , P5 ~P1 – Unit Price , T6~T1 – Total Price *Decimal Point Not Inclusion 4-3-7. RS-CN2 Protocol (Continue Transmission) Start Command : 0Ah ,0Dh Space : Sp –...

  • Page 15: Usb Interface

    End Command : CR – 0Dh 4.4. USB Interface 1: Vbus (5V) 2: D- 3: D+ 4: Ground RS-232 Interface Baud Rate : 9600 bps , None Parity , 1 Stop Bit 5. Firmware Update Method Please call your CAS dealer.

  • Page 16: Exploded Views

    CAS ELECTRICS CO.,LTD 6. Exploded Views...

  • Page 17: Parts List

    CAS ELECTRICS CO.,LTD 7. Part List 7.1 BODY ASS'Y Image Parts Code Approval Parts Name DESCRIPTION Q'ty 1000A0003620 TRAY TCS 370*270*35*1.0t MA-17009 1030A0005540 TOP PLATFORM TCS 260*200*9*3.0t MA-17010 2600A0001050 TRAY RUBBER _C CL3000 ø20*ø3.2*10.5L 1030A0005570 L/C PLATE TA101FA 30.8*30*5t 1030A0005550 BODY TCS 300*190*27*2.3t...
  • Page 18 CAS ELECTRICS CO.,LTD 7.2 INDICATOR ASS'Y Image Parts Code Approval Parts Name DESCRIPTION Q'ty 2000A0005770 FRONT CASE TCS 115*48.7*21.4 MA-17014 1501A0003060 SCREW-MACHINE(FH) M3*6 2000A0005780 INDICATOR BRACKET TCS 120*42*100.2 MA-17015 1502A0004080 SCREW-MACHINE(PH) M4*8(CHINA) 7.3 LOADCELL ASS'Y Image Parts Code Approval Parts Name...
