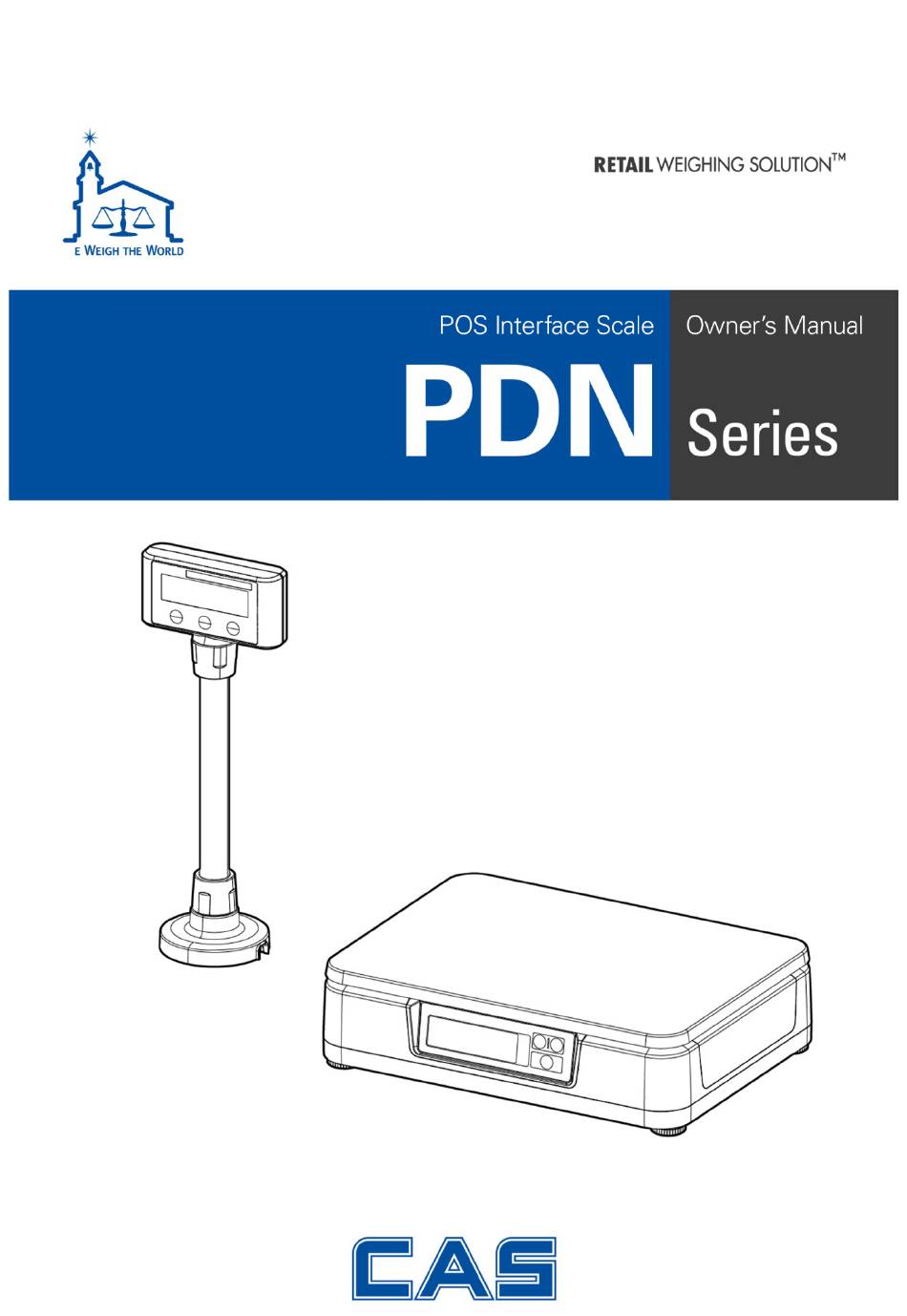

CAS PDN Series Owner's Manual
  1. Manuals
  2. Brands
  3. CAS Manuals
  4. Scales
  5. PDN Series
  6. Owner's manual
CAS PDN Series Owner's Manual

CAS PDN Series Owner's Manual

Hide thumbs Also See for PDN Series:

Advertisement

Table of Contents

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDN Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS PDN Series

Summary of Contents for CAS PDN Series

  • Page 3: Table Of Contents

    PRECAUTIONS PREFACE NAMES AND FUNCTIONS INSTALLATION DISPLAY & KEYBOARD OPERATIONS 1. Simple Weighing Mode 2. Weighing with Tare 3. Setup Mode 4. How to use with an ECR 5. How to use the BLE (Option) ERROR MESSAGE SPECIFICATIONS...
  • Page 6 Thank you for purchasing CAS PDN POS Interface Scale. The PDN Series has been designed with CAS reliability under rigid quality control so that you may enjoy years of outstanding performance. This manual will help you with the proper operation and care of the PDN. Please keep this manual for future...

  • Page 7: Installation

    INSTALLATION Disassembly is the reverse of assembly. ● Be careful not to damage the wire when removing the display connector. ● ■ How to adjust and move the ‘DISPLAY’ 1) Adjusting the display angle ② Adjust the angle if necessary. ①...
  • Page 8 ■ How to connect a ‘REMOTE D/P’ – U Type ② Connect the wire connector. ③ Wire arrangement & Attach ① Check the location to the bracket cover. connect the REMOTE D/P. ④ Fasten the pole to the body.

  • Page 9: Display & Keyboard

    ■ How to connect a ‘REMOTE D/P’ – RT / RS / RD Type ② Insert the REMOTE D/P ③ Connect the connector & ① Check the location to wire. (*inside the body) fasten it with a clamp. connect the REMOTE D/P. ④...
  • Page 10 ■ PDN (MAIN) ■ PDN (REMOTE) ■ KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point and as an ENTER key in Setup Mode Used to input or cancel the weight of tare and as an ESC key in Setup Mode.

  • Page 11: Simple Weighing Mode

    ● Turn on the display by pressing the power switch. The display will show all the segments and count up "0" to "9". ● When you turn on the display, make sure that platter is empty. Otherwise, the display will show "Err 1", an error of initial zero range. Please refer to "ERROR MESSAGE"...

  • Page 12: Weighing With Tare

    2. Weighing with Tare TARE means the weight of a container being used for a commodity. ● TARE key function subtracts the weight of the container from the full gross ● weight. ① Place a container on ② Press the key.

  • Page 13: Setup Mode

    3. SETUP MODE 3-1. How to Go to Setup Mode Make sure that power is OFF. While pressing the ZERO key, press the power switch. The display shows “U SEt”. You can select each menu by pressing the ZERO key and change the setting by pressing the TARE key. If you press the ZERO key, you can save the current setting and go to the next mode.
  • Page 14 4. How to Use the ECR Protocols 4-1. ECR Port 1) Mode Setting - If you select USB ECR, you will perform ECR communication through the USB port. - If you select RS232 ECR, you will perform ECR communication through the RS232 port. - You can select different ECR protocols for RS232 and USB.
  • Page 15 Protocol Type 0, 1 Most P.O.S, ECRs and Some TEC P.O.S system SHARP ER-Axxx, ER-A450T, New SANYO ECRs using RS-232, TOLEDO 3212, etc. SHARP ER-Axxx, New SANYO ECRs using RS-232, TOLEDO 3212, etc. CRS, NCR2170, SAMSUNG ER-5100, ER5115 and Many other ECRs NCI General, SAMSUNG ER-5100, ER-5115, Most P.O.S System Samsung ER-670 Samsung ECR(SPAIN)

  • Page 16: How To Use The Ble (Option)

    5. How to Use BLE (Option) 5-1. BLE Mode 1) Mode Setting - This Mode is ‘BLE Mode’. Please refer to page 13. - In BLE mode, the PDN can communicate with your POS terminal via Bluetooth (only for PDN units with the optional Bluetooth module)

  • Page 17: Error Message

    "Err 0" "Err 0" occurs when scale is not stable. in a stable environment. "Err 1" occurs when a current zero point has Please call your CAS "Err 1" shifted from the last span calibration. dealer. "Err 3" "Err 3" is an overload error.
  • Page 18 PDN (Checkout Scale) MODEL Dual Single Single Single Dual Dual Dual Interval Interval Interval Interval Max 6kg Max 12kg Max 30kg Capacity / e e=1g e=2g e=5g Max 6/15kg Max 15/30kg Max 15/32kg 3/6kg e=2/5g e=5/10g e=5/10g e=1/2g Internal 1/60,000 1/60,000 1/60,000 1/60,000...
