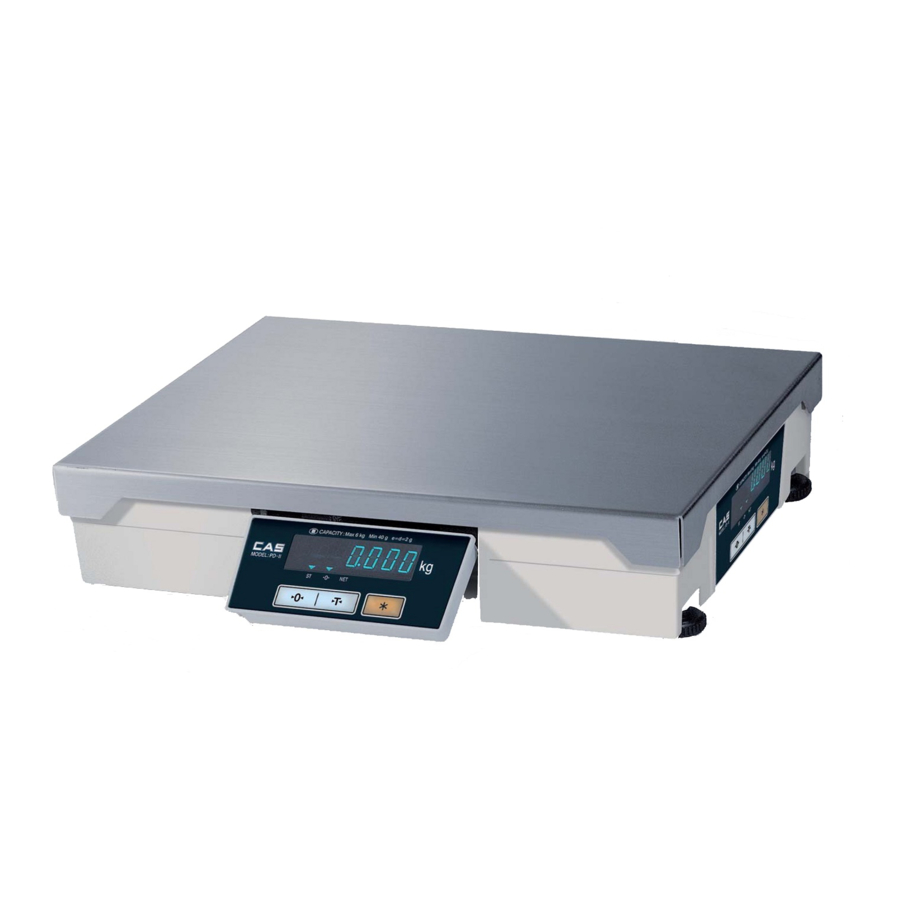

Setting up the CAS PD-II
Black Edition (OZ Configuration)
This document contains step-by-step instructions for setting up the CAS PD-II (black) to work with CRE.
To connect the CAS PD-II to your computer, you need the following cable:
The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128
1 |
P a g e
