Summary of Contents for CAS PR Plus-B

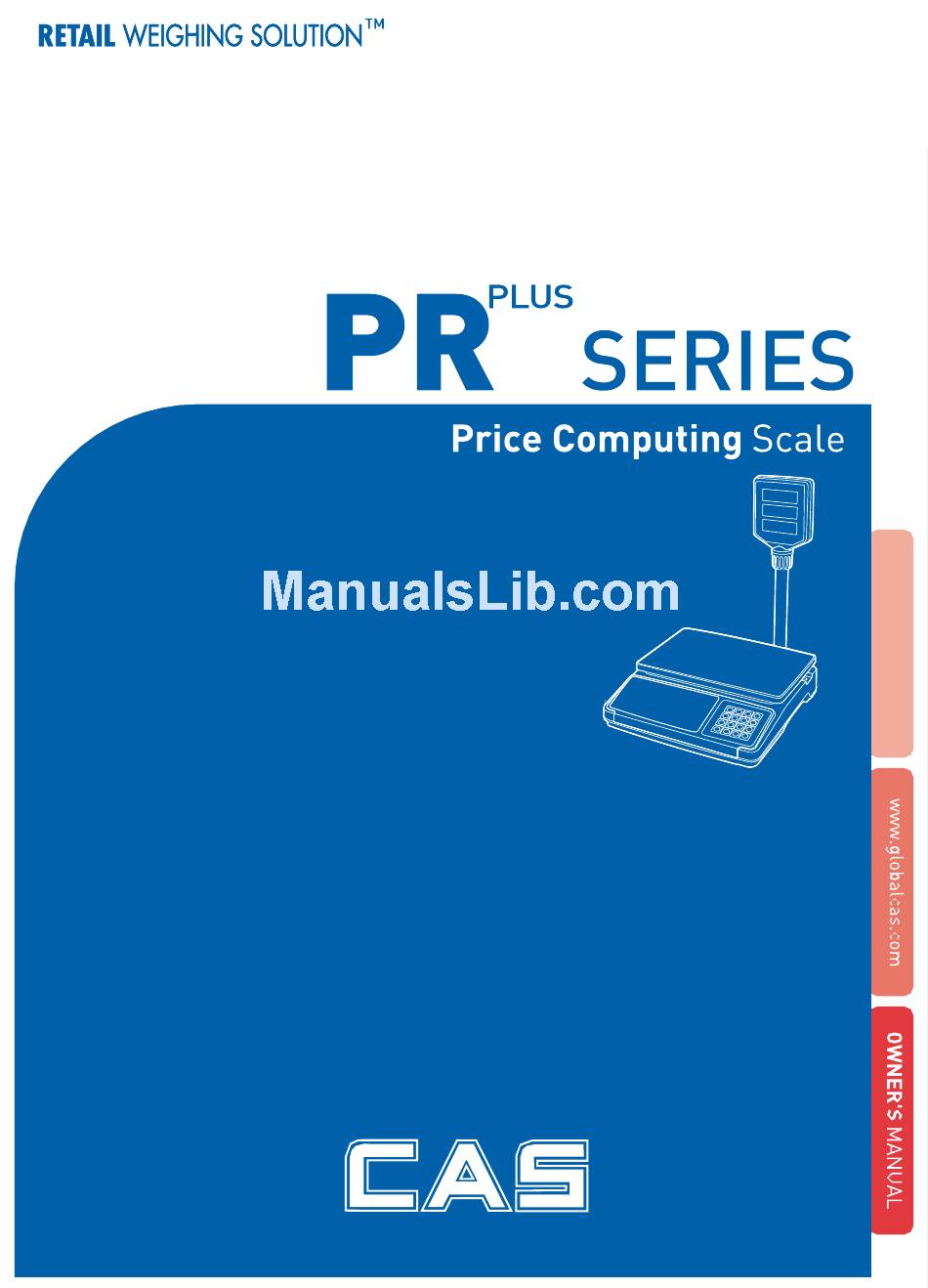

  • Page 1 표지...
  • Page 2 CONTENTS PRECAUTIONS............3 PREFACE, OVERALL VIEW .......5 DISPLAY AND KEY BOARD ........6 REMOVE THE SCREW.........9 COLUMN INSTALLATION ........9 OPERATION Chapter 1. Basic Operation........10 Chapter 2. PLU Saving & Calling-up ....13 Chapter 3. User' s Set-up Mode ......15 Chapter 4. Sales transaction ......17 TECHNICAL PARAMETER.......19 ERROR MESSAGE..........19...

  • Page 3: Precautions

    PRECAUTIONS...
  • Page 4 PRECAUTIONS...

  • Page 5: Overall View

    PREFACE PLUS Thank you for purchasing CAS PR These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your special departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability.

  • Page 6: Display And Key Board

    DISPLAY AND KEY BOARD PLUS -B Front display ■ PLUS ■ -B Rear display PLUS ■ -P Front cover...
  • Page 7 PLUS ■ -P display ■ key...

  • Page 8: Keys Functions

    ■ Function keys KEYS FUNCTIONS Used to enter all the numeric data. PLU key. Used to power on& off the scale. Used to clear all the numeric price display. Used to clear sum total price. Used to clear all the daily total prices. Used to correct the zero point.

  • Page 9: Remove The Screw

    REMOVE THE SCREW Remove the crew NOTICE： Make sure to remove the screw before use at the first time. COLUMN INSTALLATION Column Column Support Screw Figure one Figure two Column Installation...

  • Page 10: Chapter 1. Basic Operation

    OPERATION Chapter 1. Basic Operation a. To turn on/off the scale ① Press the ON/OFF key to turn on. ② Press the ON/OFF key for a few seconds to turn off. b. Zero function ① Press ZERO key to set Zero...
  • Page 11 c. Tare function Tare means the weight of container. You may use tare function when you weigh an item with container and measure only the weight of item. ■ One time tare ① Place a container on the platter. ② Press TARE key to set zero point. EX) 200g of tare.
  • Page 12 ⑤ After weighing item remove all of the ⑥ Press TARE key again to set zero. container from the platter. :To remove TARE funtion press“TARE”Key again after removing NOTE the container from the paltter. Automatic tare clearing function may not be applied to all of PR series. d.

  • Page 13: Chapter 2. Plu Saving & Calling-Up

    Chapter 2. PLU Saving & Calling-up a. Saving unit price on PLU This section explains how to save unit price in PLU. Number of PLU Range Remarks NAME ① Press number key to input unit price ② Press “ ” key for a few seconds to you wish to have.
  • Page 14 b. Saving PLU name (Option)  C key is to input, save a character, and move to next character (or byte).  TARE key is to move next programming menu. ① Input appropriate ASCII codes to ② Press TARE key to exit to normal save the PLU name.

  • Page 15: Chapter 3. User' S Set-Up Mode

    Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks a. Auto power-off NO / 10 / 30 / 60 b. Suspend Mode OFF / 20 / 40 / 60 ① To get into “User’s Set-up Mode”, hold ZERO key and press ON/OFF key, while the scale is ...
  • Page 16 b. Suspend mode function This section explains how to set a time to suspend mode. Options Description Remarks  No suspend mode.  Suspend mode in 20 seconds when no use. 20 (seconds)  Suspend mode in 40 seconds when no use. 40 (seconds) ...

  • Page 17: Chapter 4. Sales Transaction

    Chapter 4. Sales transaction PR can provide inputting the unit price through the numeric key and calling up PLU. a. Input the unit price through the numeric key This section explains how to input the unit price through the numeric key and complete the sales transaction.
  • Page 18 b. Input the unit price through calling up PLU ① Press M1~M4 key can call up ② Place an item on the platter. the PLU. EX) M1 ③ Remove an item on the platter.

  • Page 19: Error Messages

    The "Err 0" occurs when scale is not stable. Remove unstable facts. The "Err 1" occurs when a current zero point has "Err 1" Please call your CAS dealer. shifted from the last span calibration. "Err 3" The "Err 3" is an overload error.
  • Page 20 MEMO...
  • Page 21 MEMO...
